Removal And Installation: Notes

WARNING:
CAUTION: When the steering lock cylinder is replaced, register the encrypted code. Refer to ENCRYPTED CODE REGISTRATION CRITERIA TABLE  .

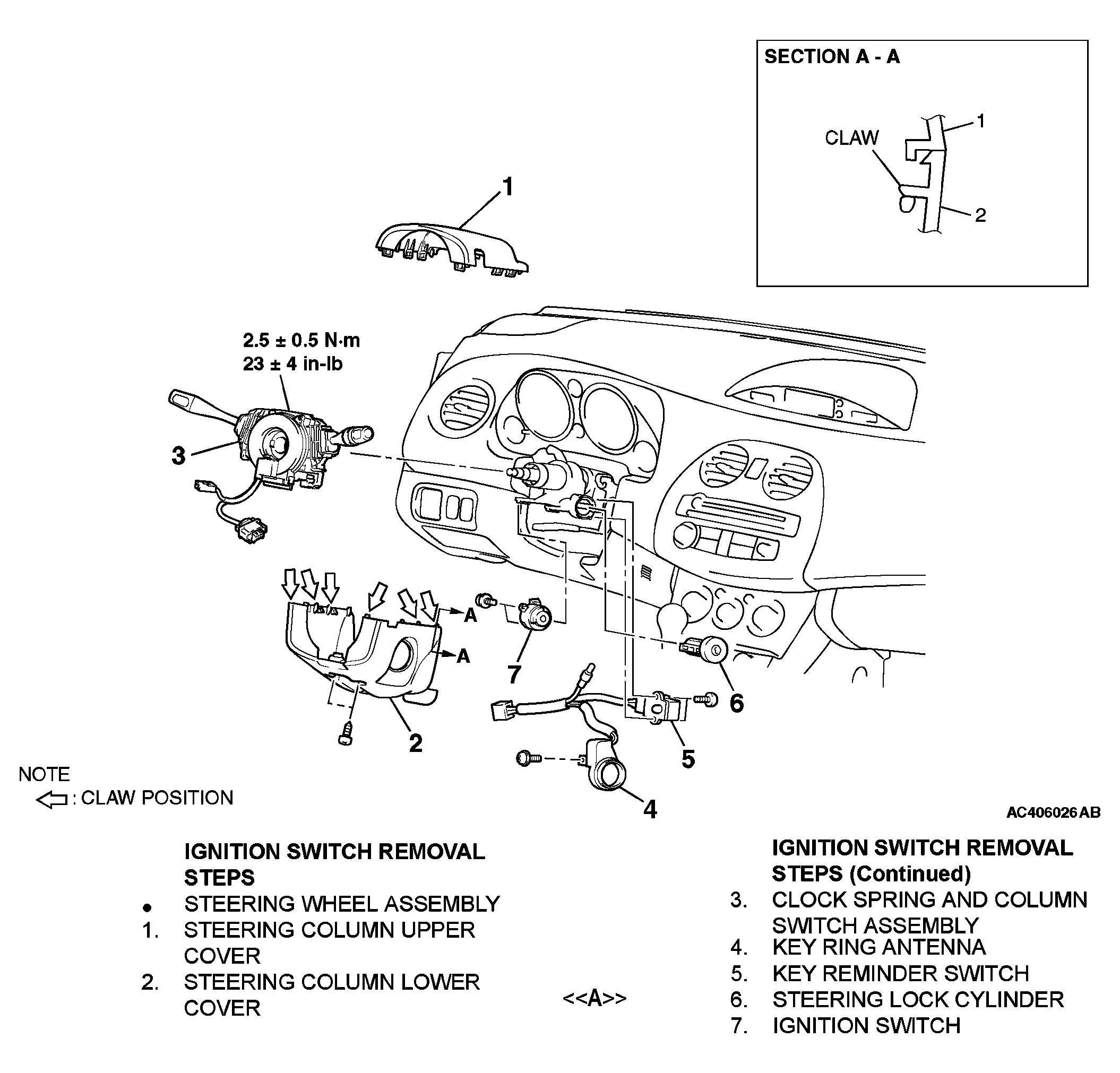

Fig 1: Identifying Ignition Switch Components
G04238683Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
