General Description
>>
Sectional View
>>
< 5M/T >
< 5M/T >

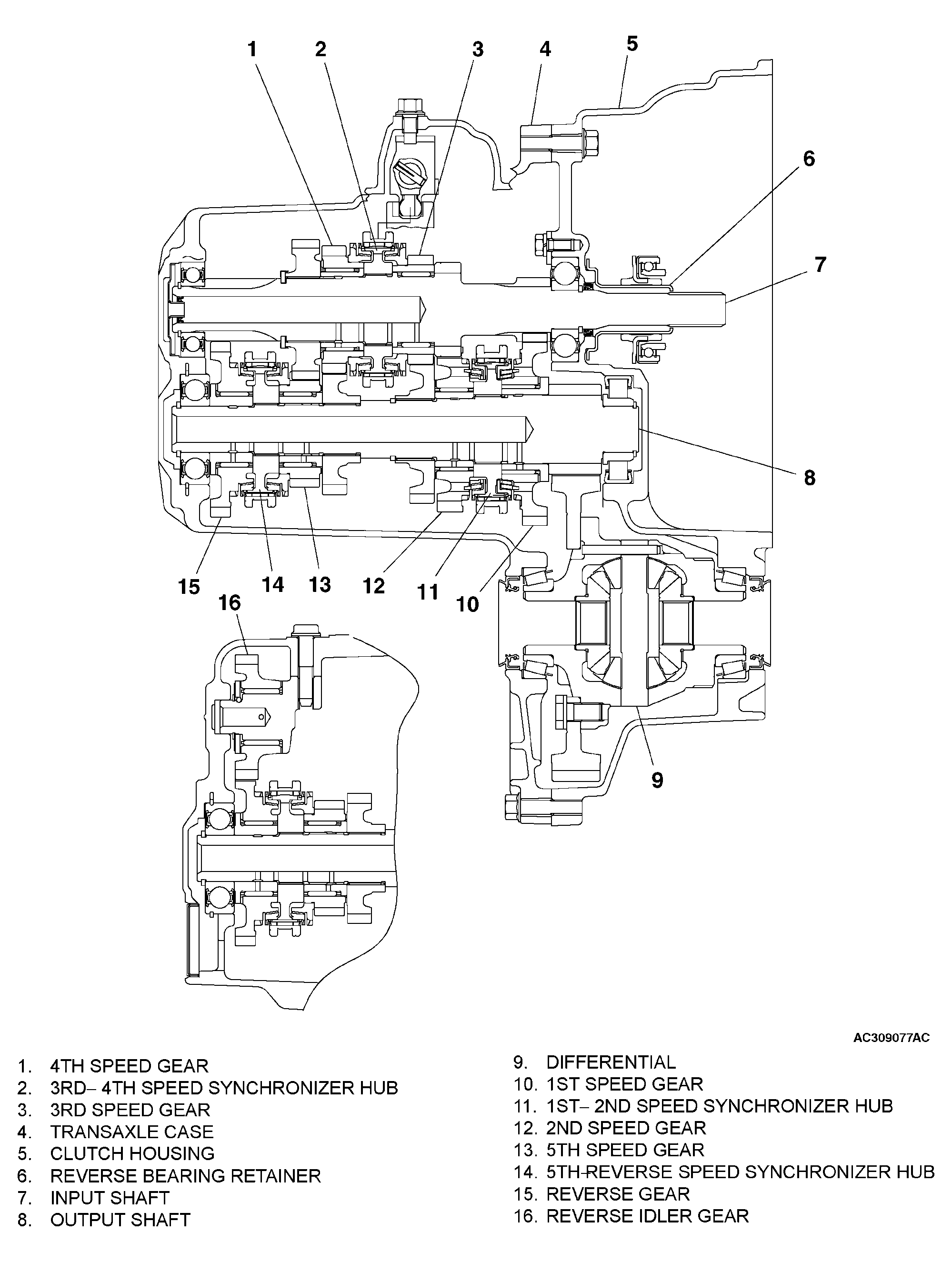

Fig 1: Identifying Manual Transaxle Sectional View (5M/T)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
