Home >> Mitsubishi >> 2006 >> Eclipse GS, Standard >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Special Tool

Special Tool

SPECIAL TOOL

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION

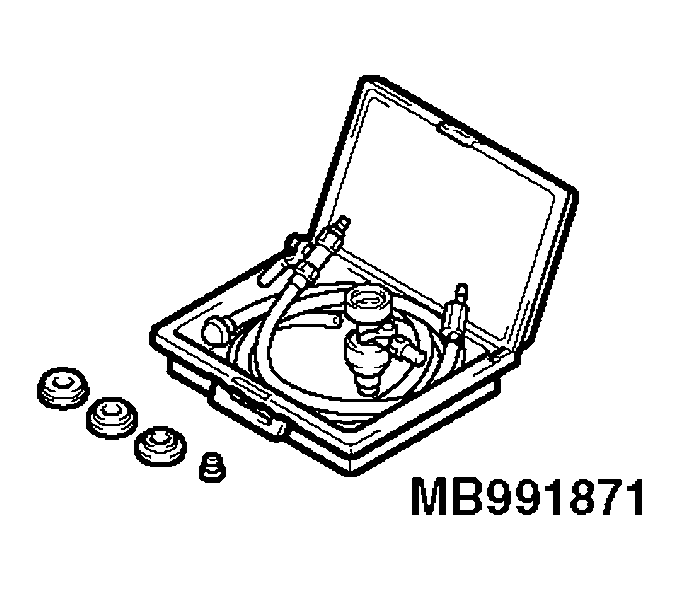

G04236937
 MB991871 LLC changer General service tool Coolant refilling

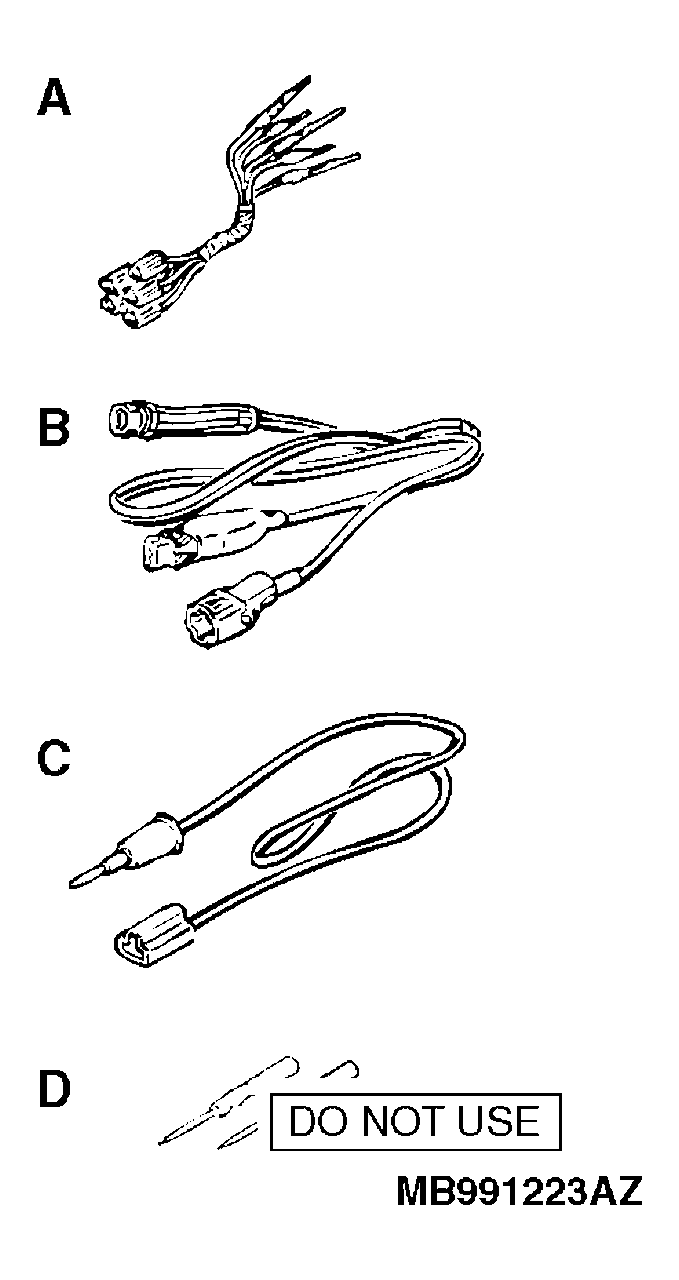

G04236938
 MB991223
  1. MB99121
  2. MB99122
  3. MB99122
  4. MB99122

Harness set
  1. Test harnes
  2. LED harnes
  3. LED harness adapte
  4. Prob
 General service tools Making voltage and resistance measurement during troubleshooting
  1. Connector pin contact pressure inspectio
  2. Power circuit inspectio
  3. Power circuit inspectio
  4. Commercial tester connectio

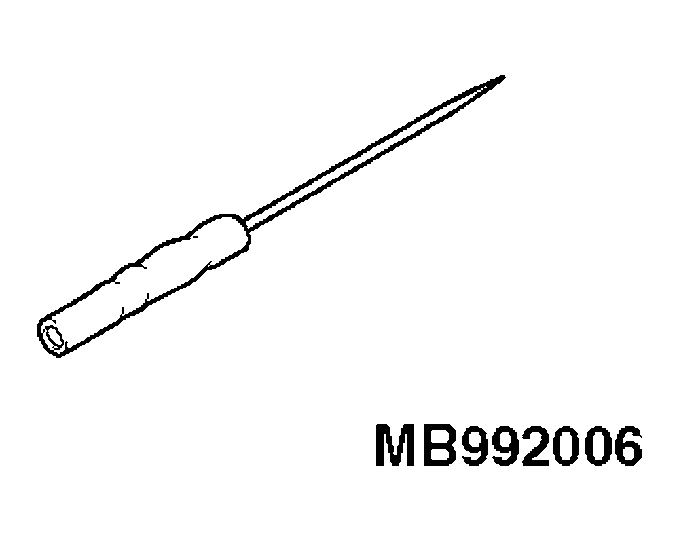

G04236939
 MB992006 Extra fine probe General service tool Making voltage and resistance measurement during troubleshooting

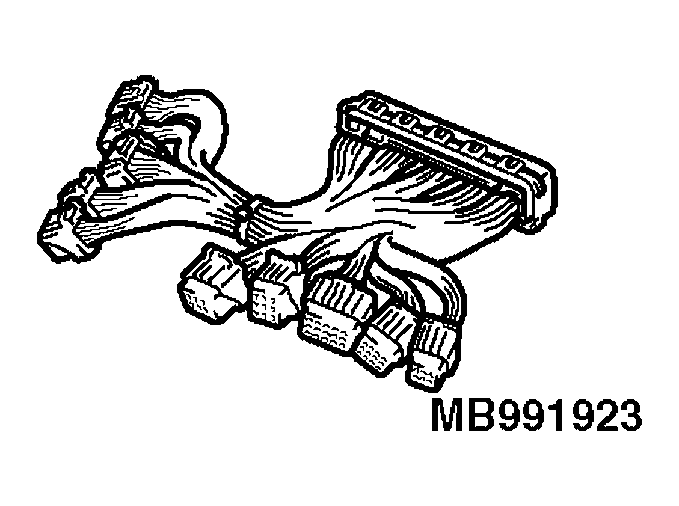

G04236940
 MB991923 Power plant ECU check harness MD998478-01 Measurement of ECM < M/T > or PCM < A/T > terminal voltage
