Disassembly And Assembly

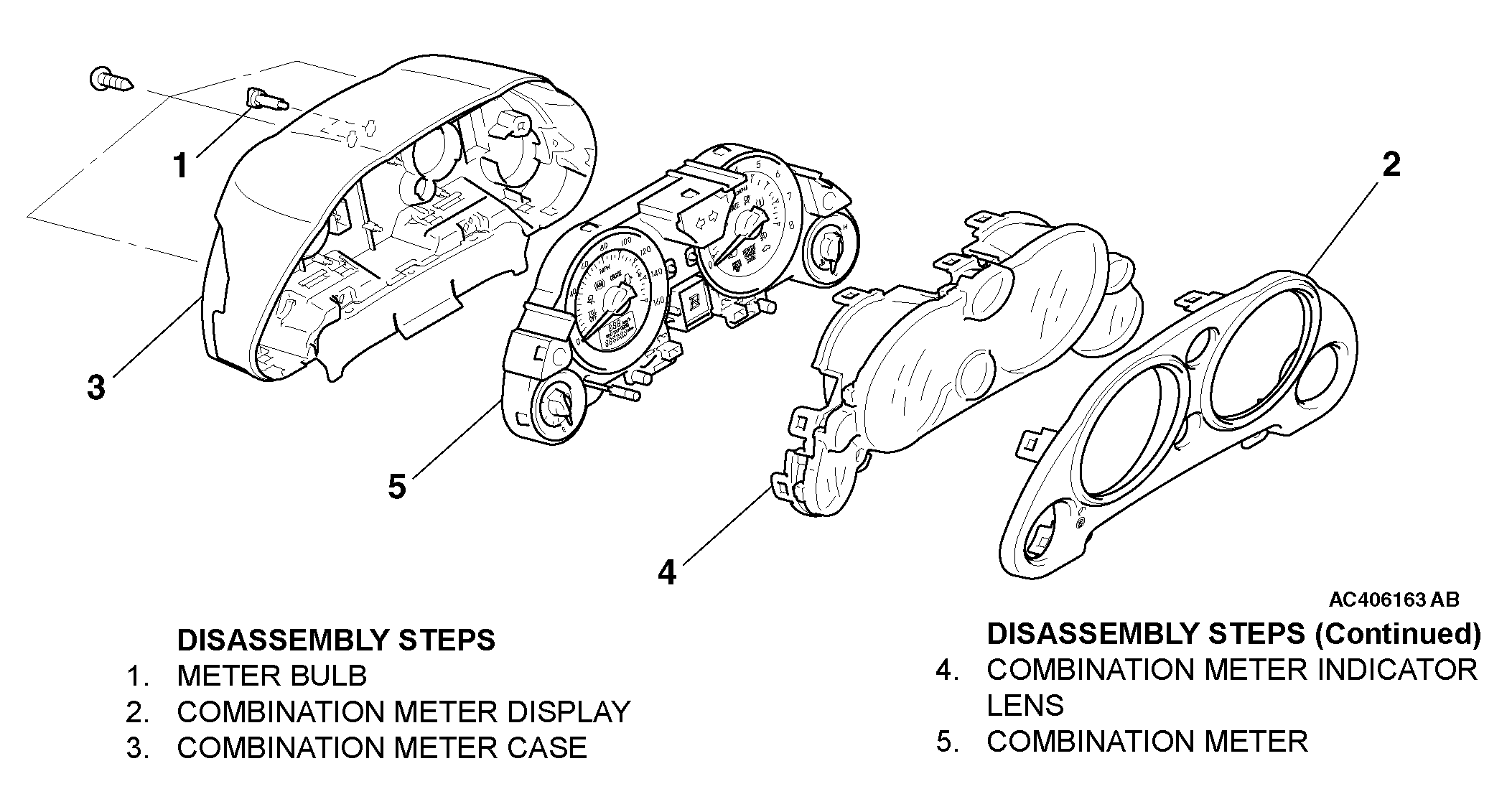

Fig 1: Exploded View Of Combination Meter Assembly

G04238895

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
