Removal And Installation: Notes

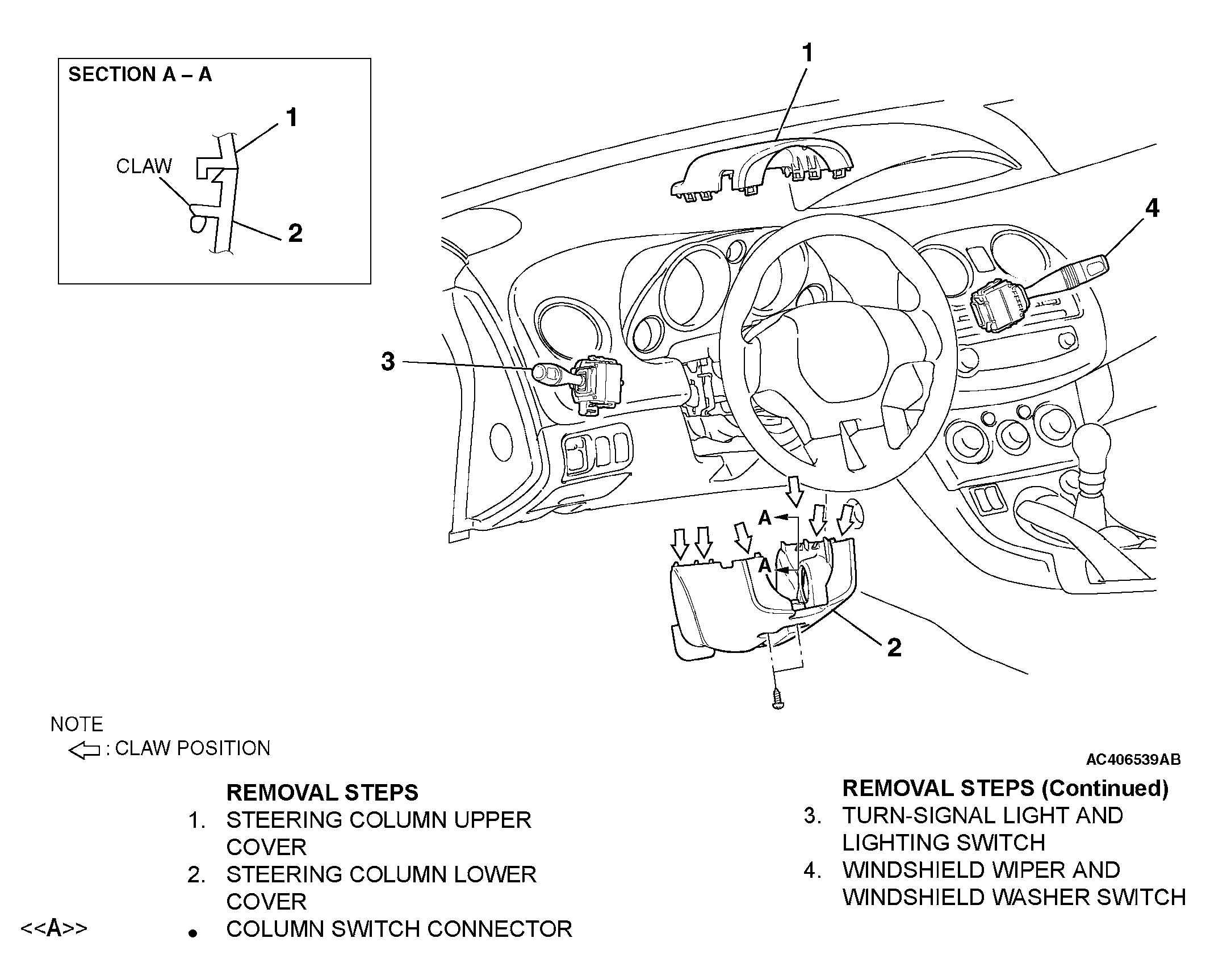

Fig 1: Identifying Column Switch Components

G04238921

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
