Home >> Mitsubishi >> 2006 >> Eclipse GS, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Body >> Window Glass >> Liftgate Window Glass >> Removal And Installation >> Notes

Removal And Installation: Notes

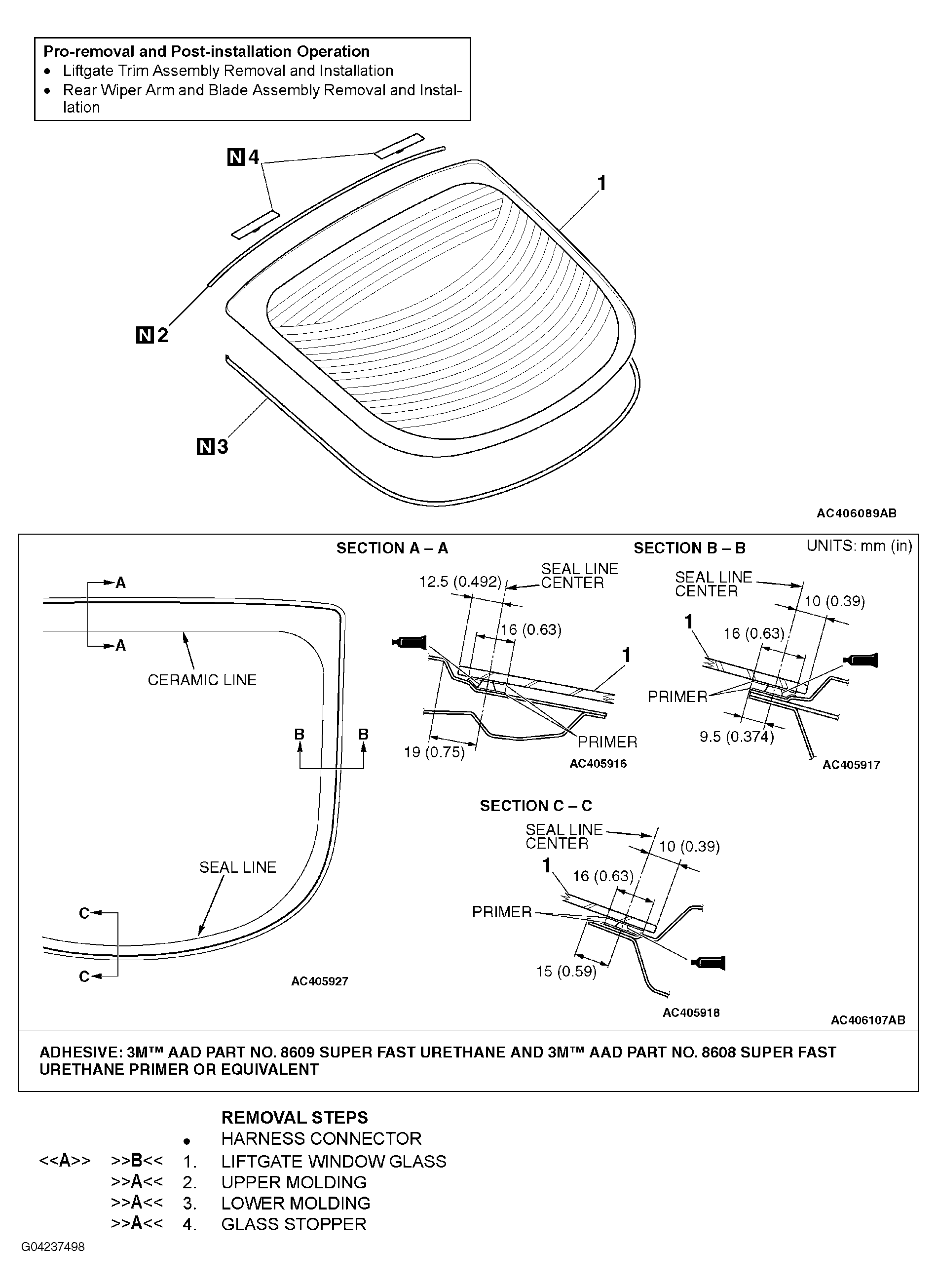

Fig 1: Removing & Installing Liftgate Window Glass

G04237498

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
