Adjustment Of Liftgate Height

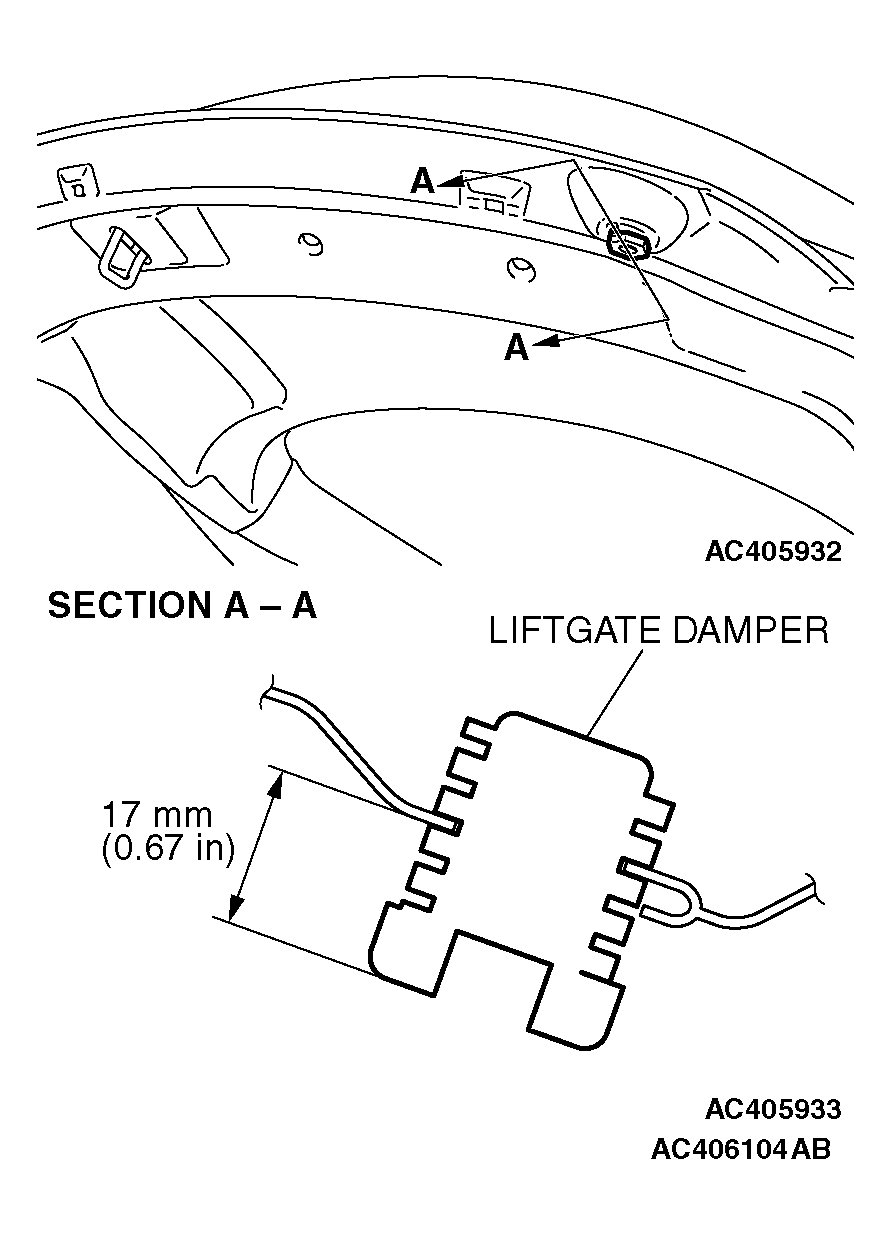

Turn the liftgate damper until the liftgate height is as shown in illustration. If the liftgate height is still not even at left and right sides, turn the liftgate damper further until the liftgate height is even. The liftgate damper height is altered by roughly 3 mm (0.1 inch) when turning the liftgate damper one rotation.
NOTE:
If a rattling noise (clack) is caused by the vibration of the liftgate while driving, adjust the liftgate damper height so that the liftgate damper contacts the body securely.
