Removal And Installation: Notes

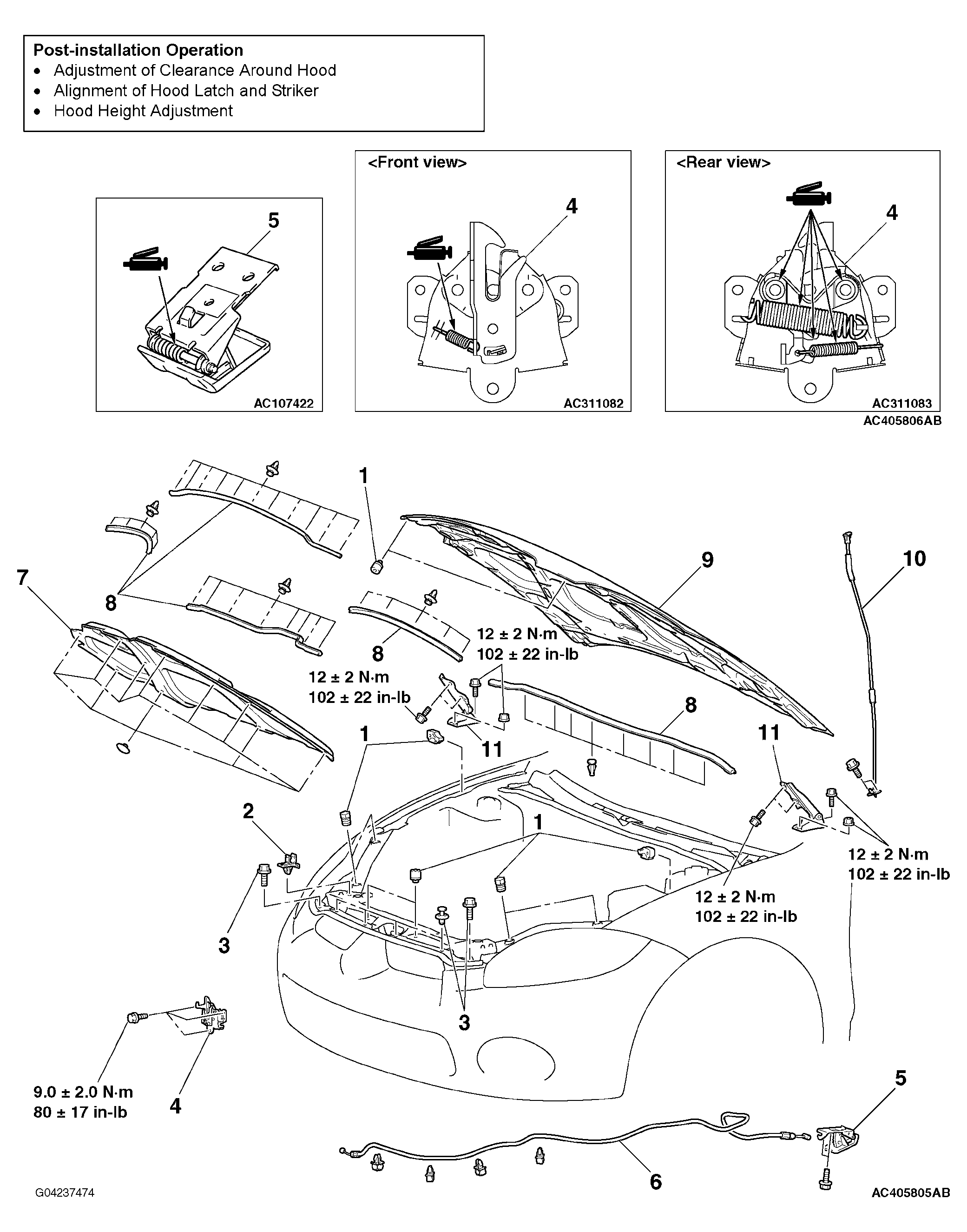

Fig 1: Removing & Installing Hood With Torque Specifications (1 Of 2)
G04237474Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

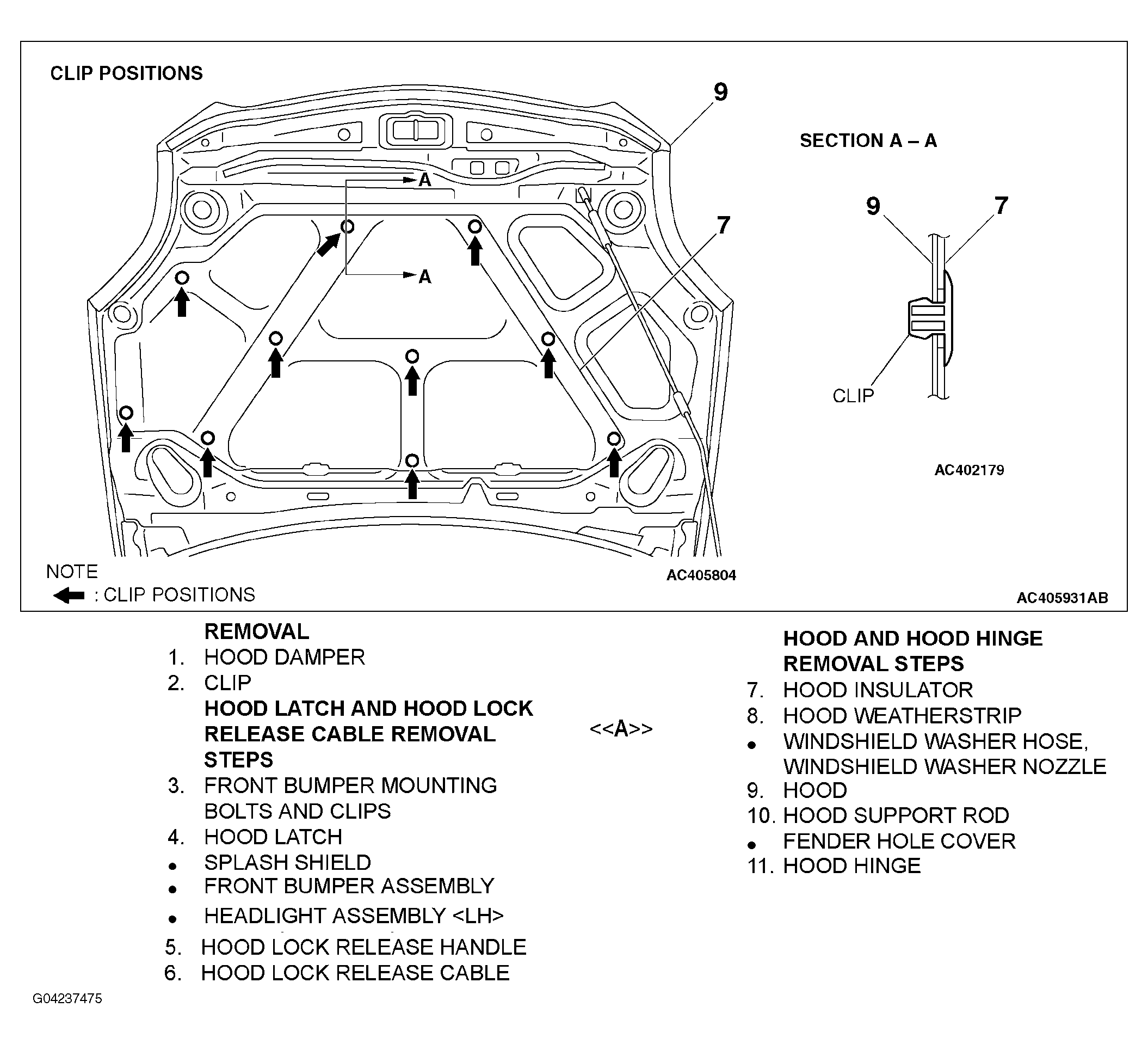

Fig 2: Removing & Installing Hood (2 Of 2)
G04237475Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
