Special Tools
SPECIAL TOOLS
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

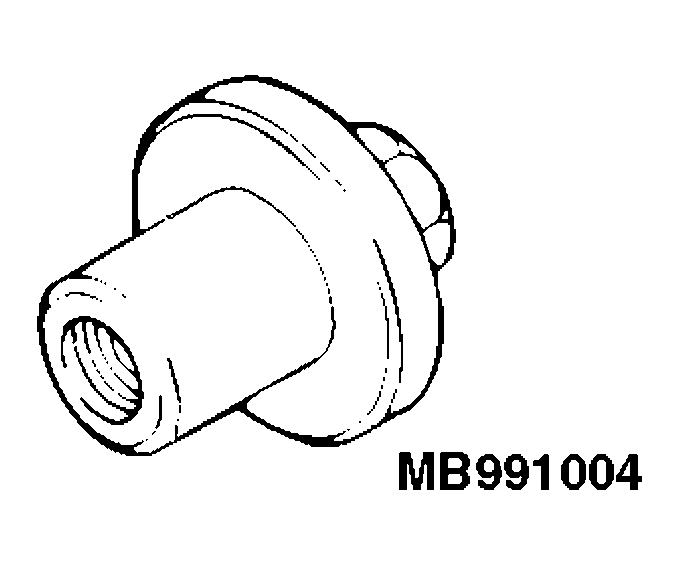

| MB991004 Wheel alignment gauge attachment |
MB991004-01 or General service tool | Wheel alignment measurement | |

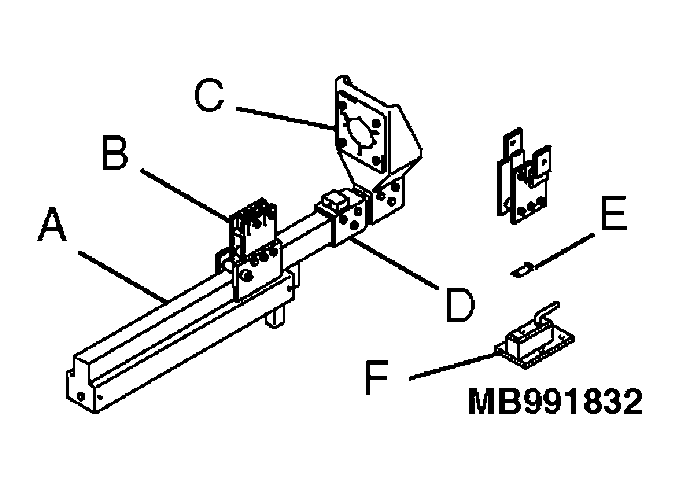

| MB991832 Spring compressor set
|
General service tool | Front coil spring compression
NOTE:
The coil spring can not be compressed by following conventional special tools.
|
|

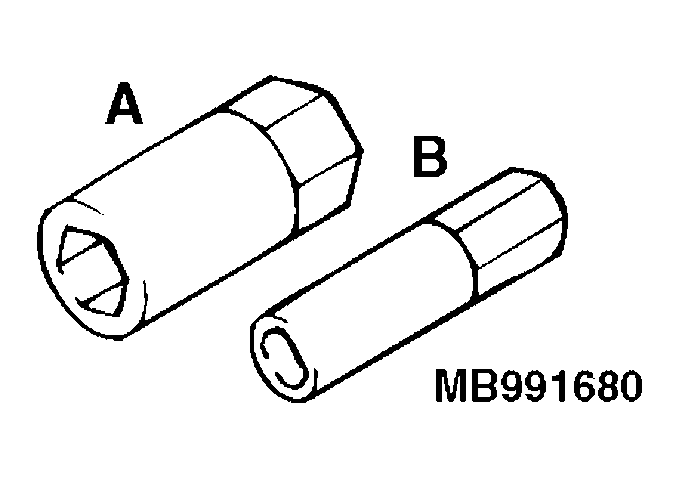

| MB991680 Wrench set
|
- | Strut assembly disassembly and assembly | |

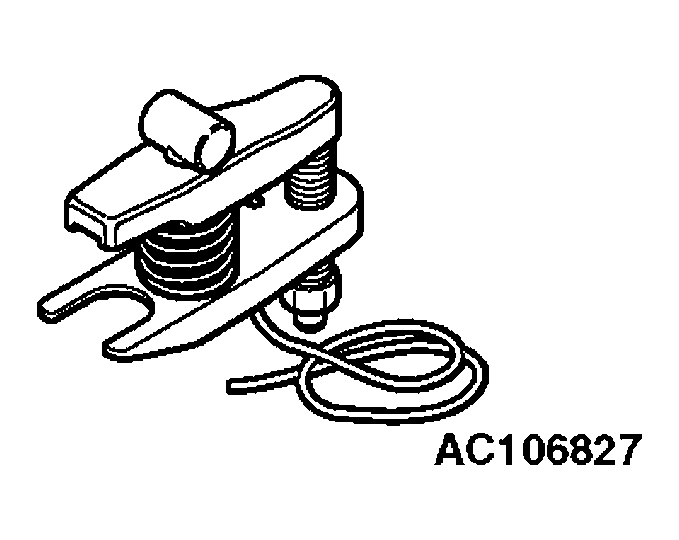

| MB991897 Ball joint remover |
MB991113-01, MB990635-01 or General service tool | Knuckle and ball joint disconnection
NOTE:
Steering linkage puller (MB990635 or MB991113) is also available to disconnect knuckle and ball joint.
|
|

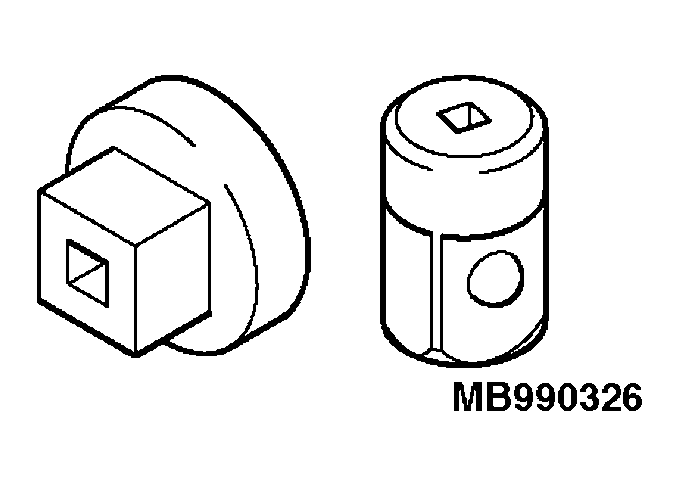

| MB990326 Preload socket |
General service tool | Ball joint breakaway torque check | |

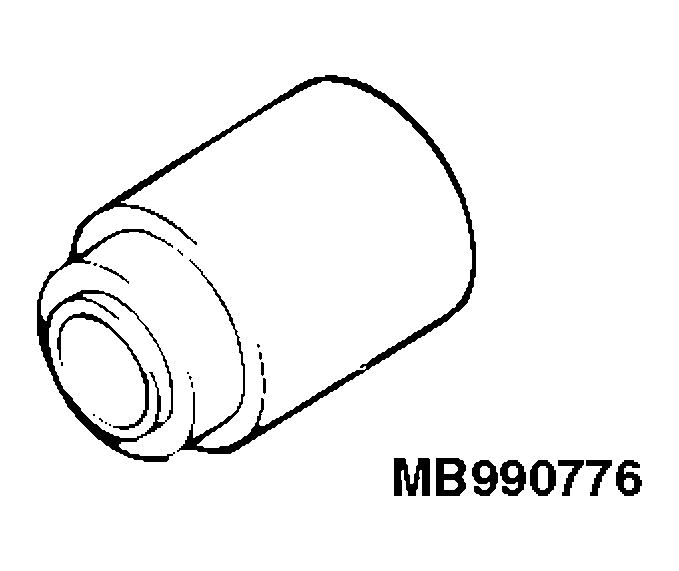

| MB990776 Front axle base |
MB990776-01 | Lower arm ball joint dust cover installation | |

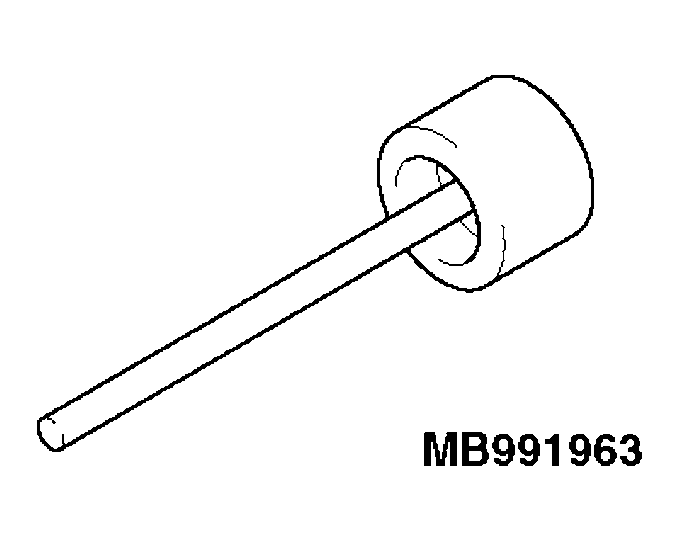

| MB991963 Suspension bushing arbor |
- | Lower arm bushing removal and press-fitting | |

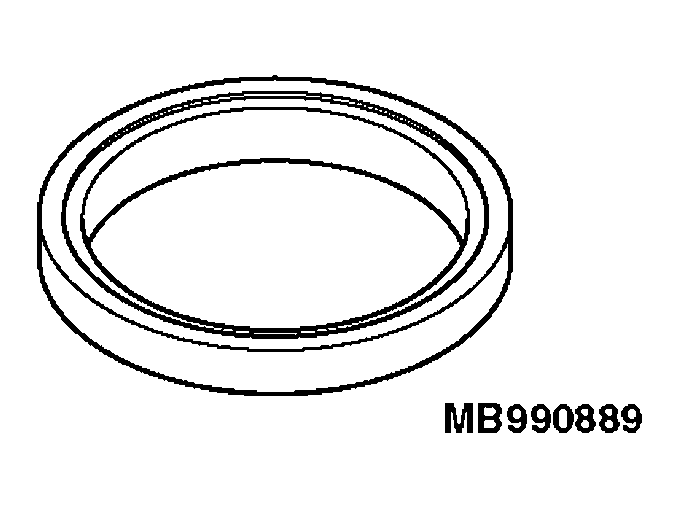

| MB990889 Rear suspension bushing ring |
- | ||

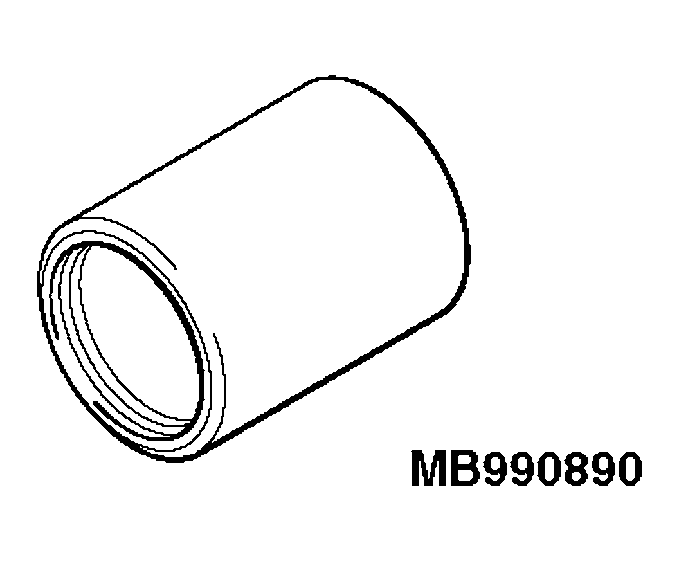

| MB990890 Rear suspension bushing base |
MB990890-01 or general service tool |
