Special Tools

SPECIAL TOOLS

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION

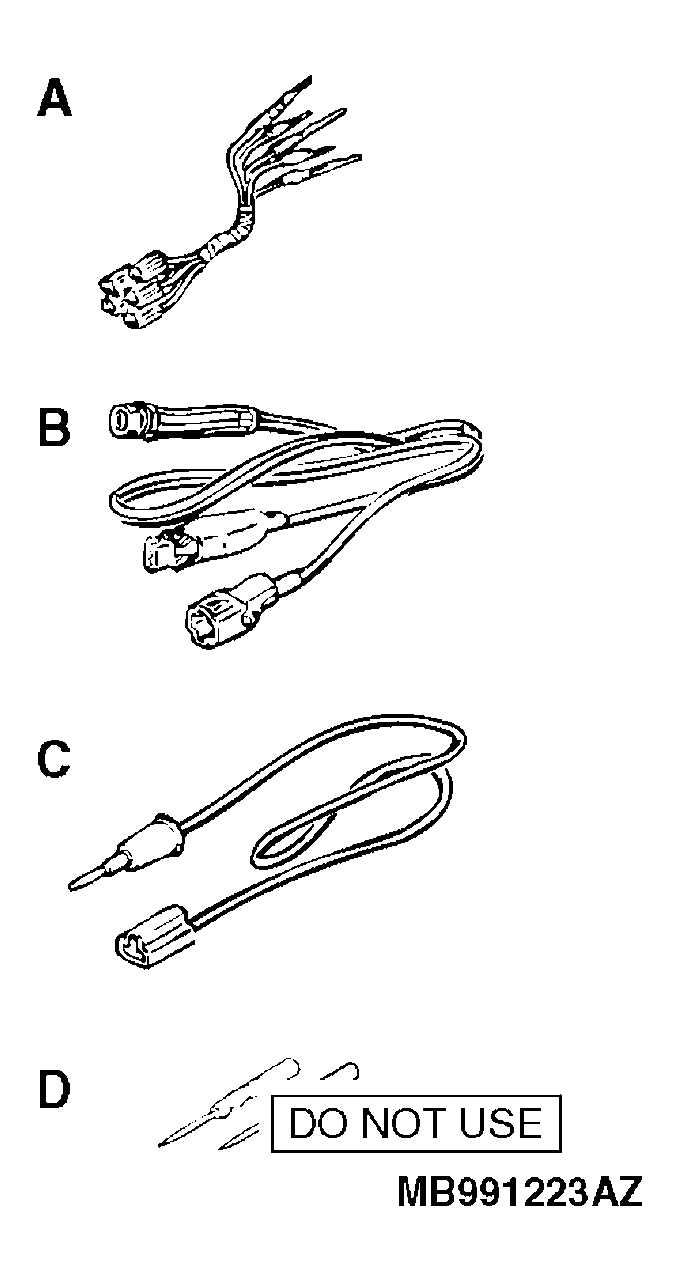

G04239110
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set


  1. Test harness
  2. LED harness
  3. LED harness adapter
  4. Probe
 General service tool (jumper) Making voltage and resistance measurements during troubleshooting
  1. Connect pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G04239111
 MB992006
Extra fine probe		 General service tool Making voltage and resistance measurement during troubleshooting
