Disassembly And Assembly

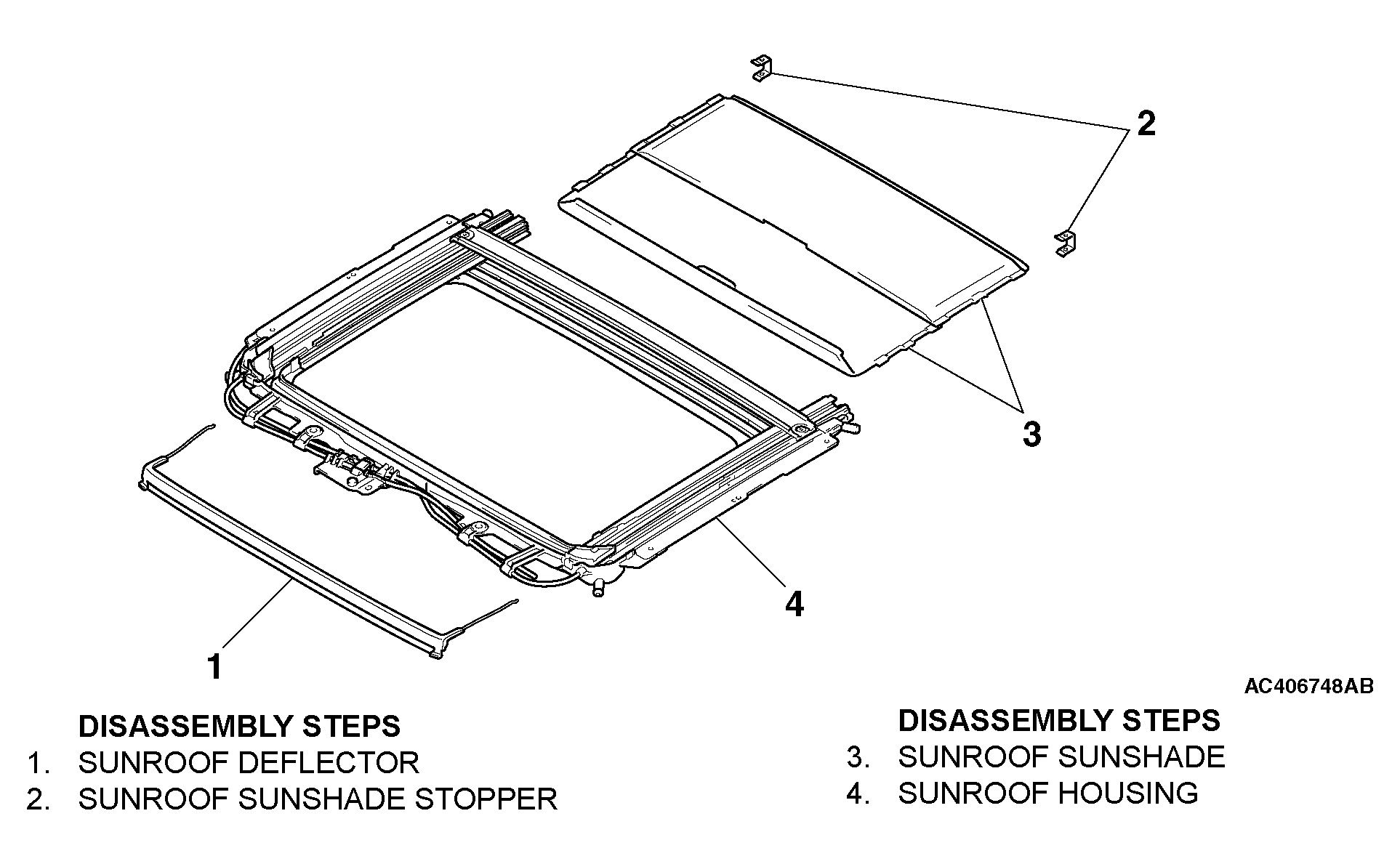

Fig 1: Identifying Sunroof Components
G04237661Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
