Removal And Installation: Notes

CAUTION: *: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

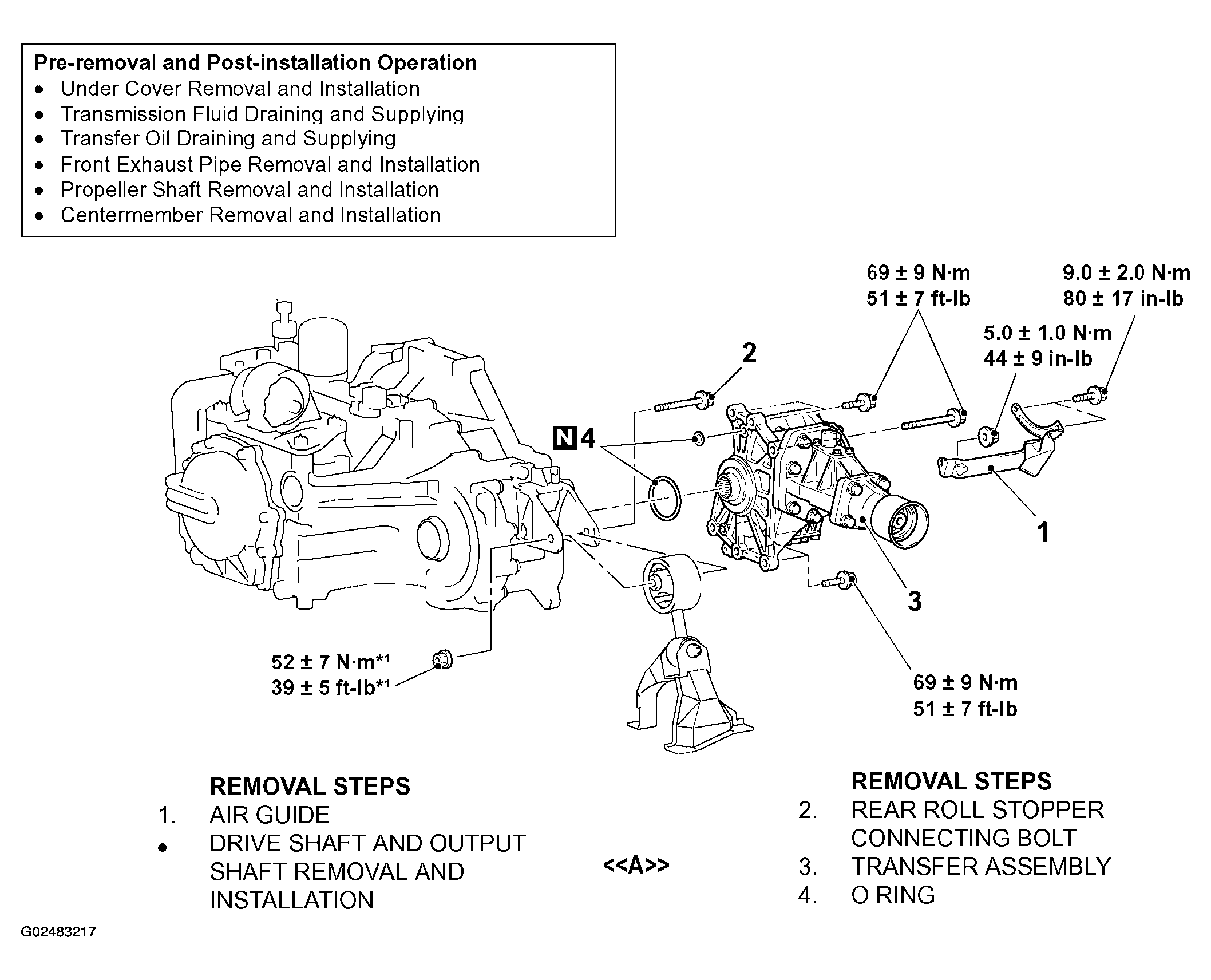

Fig 1: Removing/Installing Transfer Assembly
G02483217Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
