Removal And Installation: Notes

CAUTION: When removing and installing the transaxle control cable and shift lock cable unit, be careful not to hit the SRS-ECU.

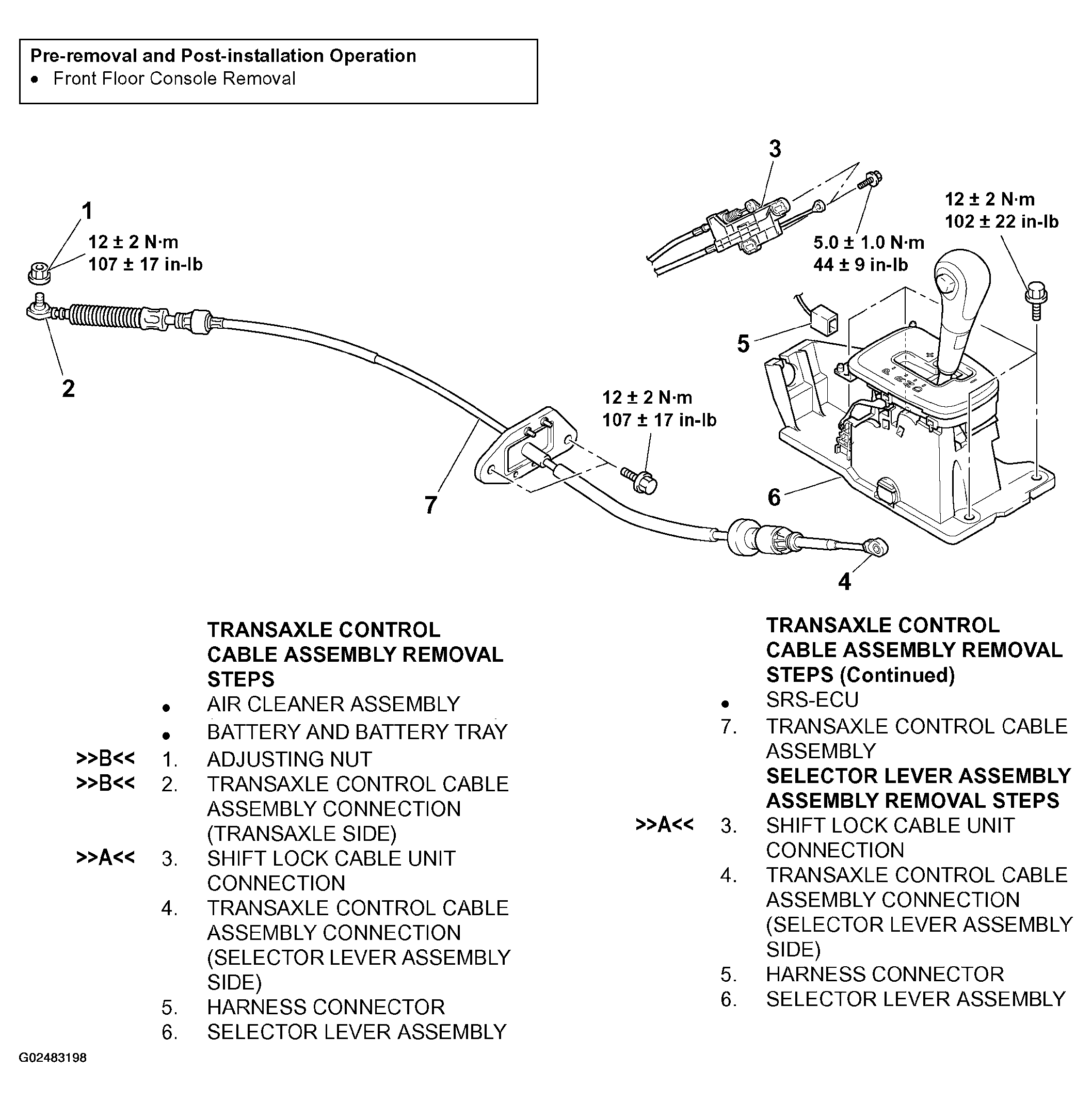

Fig 1: Removing/Installing Transaxle Control Cable And Shift Lock Cable Unit
G02483198Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
