Disassembly And Assembly
Disassembly And Assembly

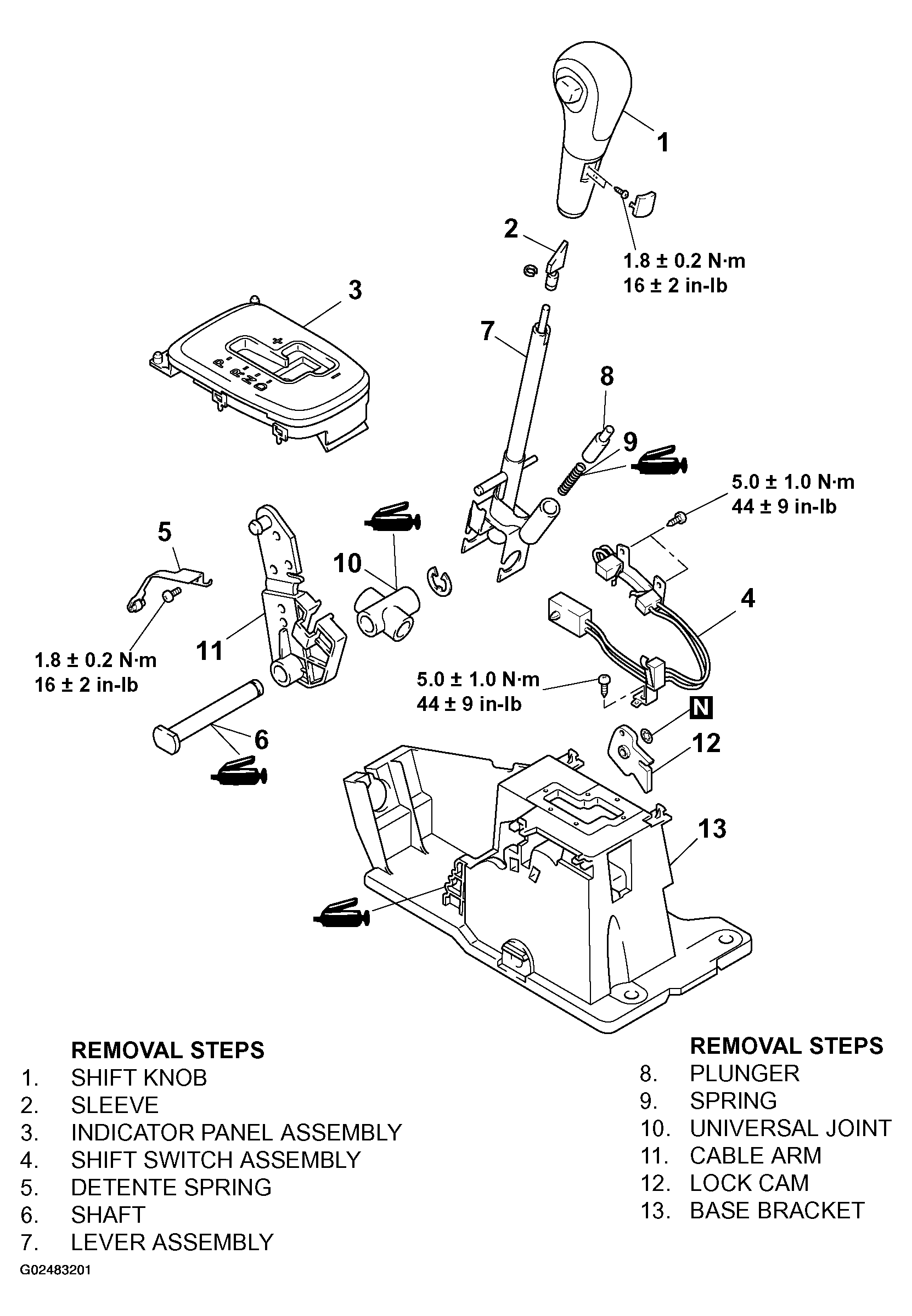

Fig 1: Disassembling/Assembling Transaxle Control
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
