W4A4B < Downshift Pattern >

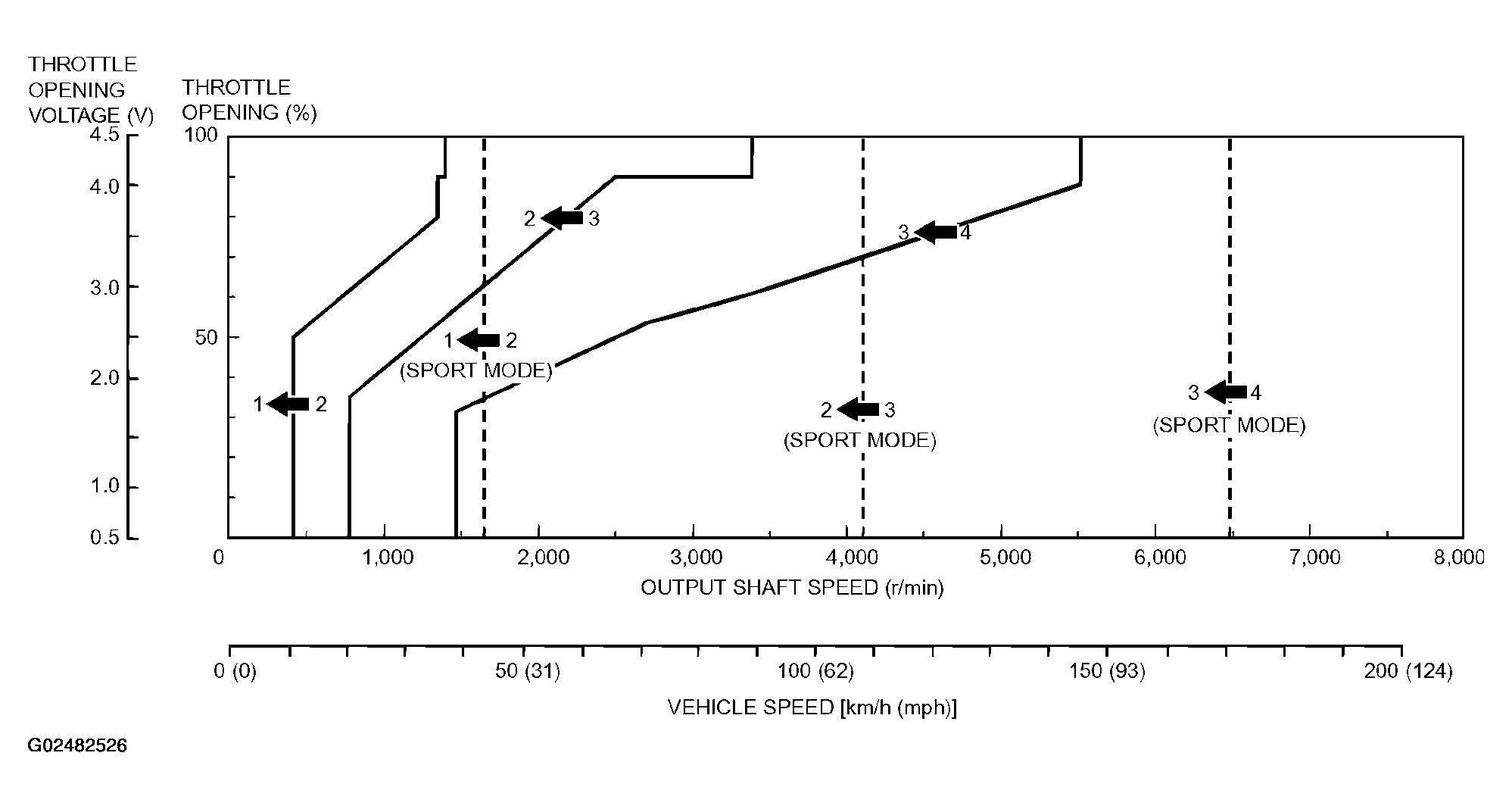

Fig 1: Identifying Shift Pattern Control (W4A4B) - Downshift Pattern
G02482526Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
