Automatic Trans: Diagnosis: General Description: Notes

The A/T come in two models, namely, F4A4B and W4A4B.

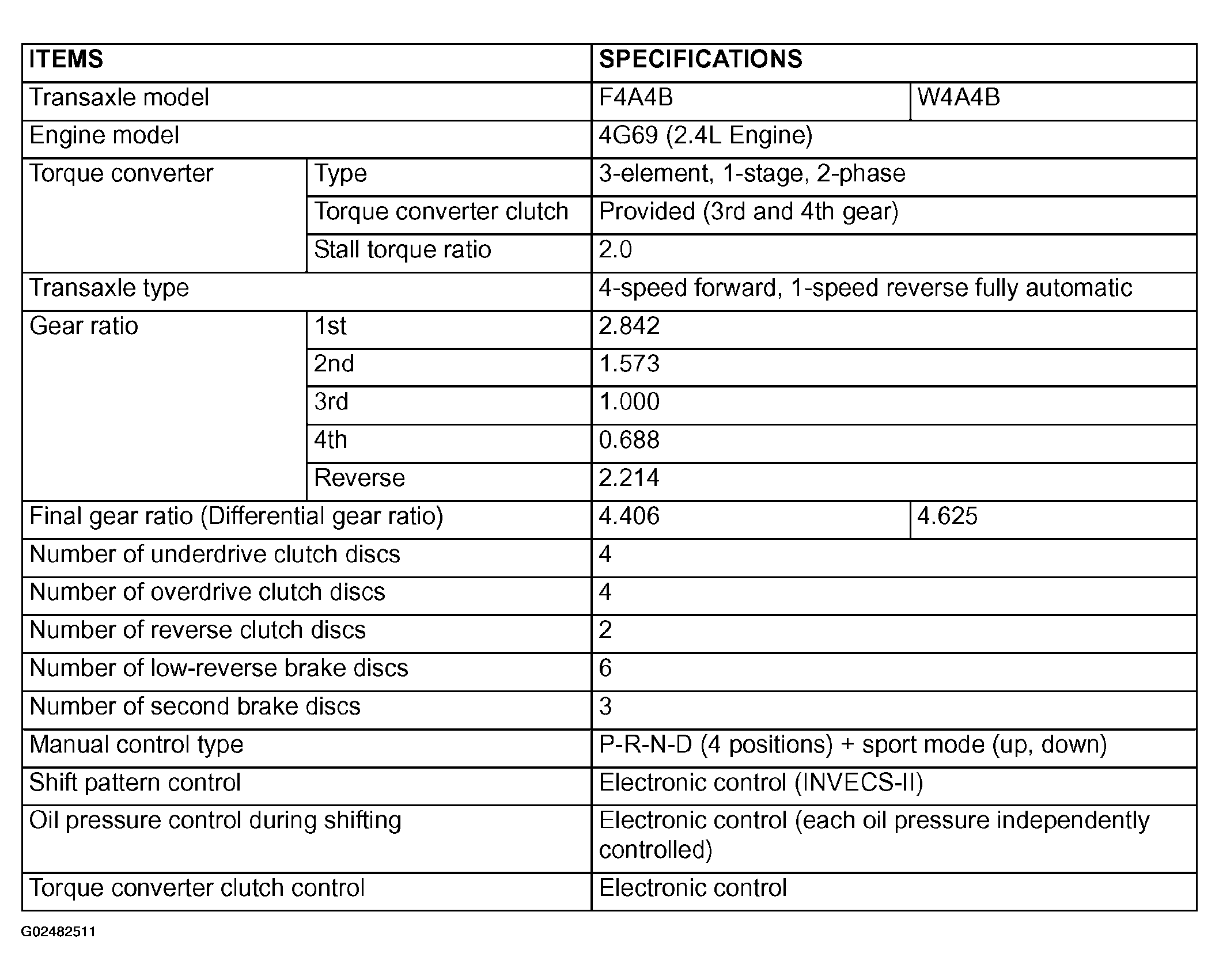

Fig 1: Automatic Transaxle Item Specifications

G02482511

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
