General Description
>>
Function Element Table
Function Element Table

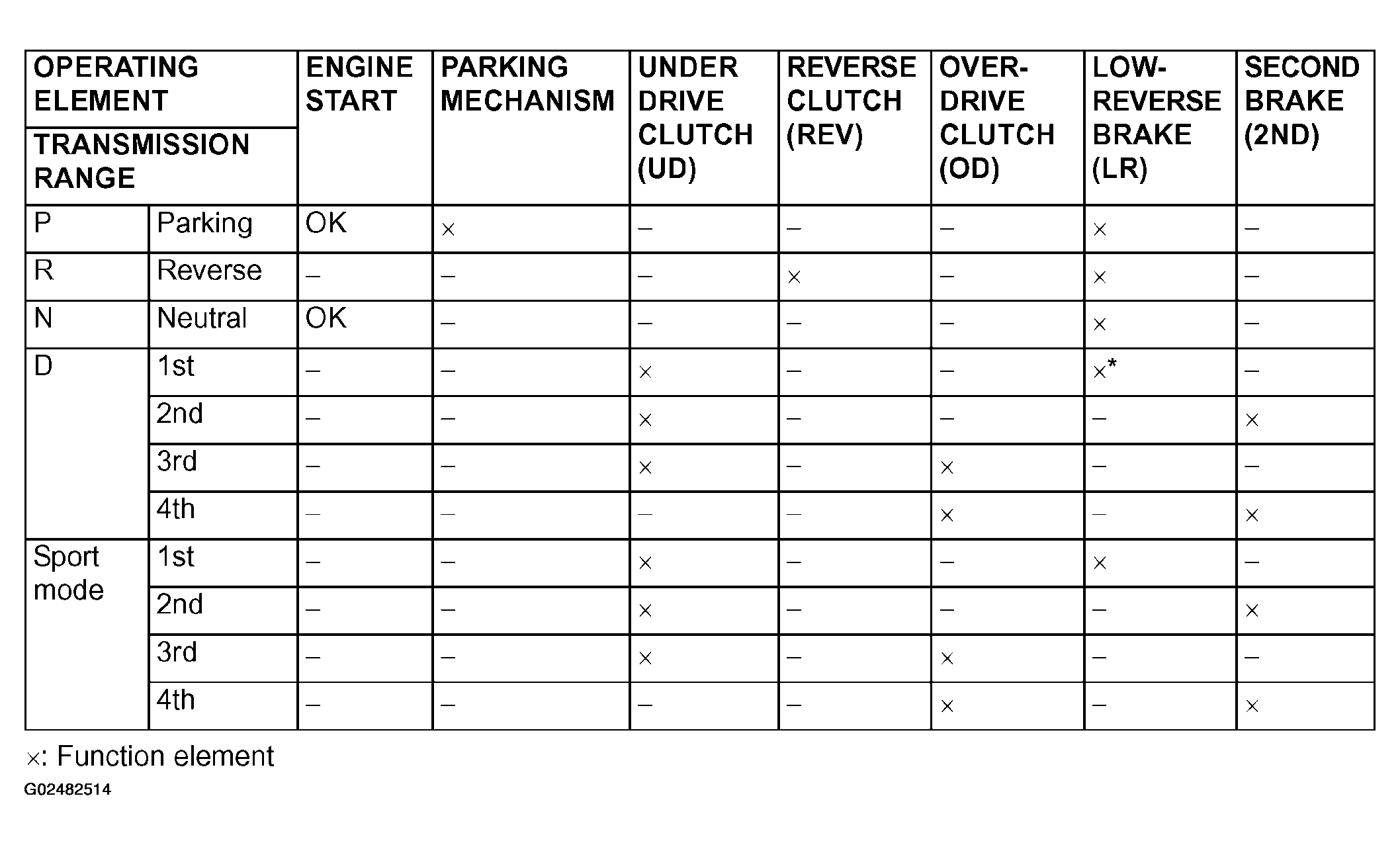

Fig 1: Function Element Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
*: operates only when the vehicle is stationary [at approximately 10 km/h (6.2 mph) or less].
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
