General Description
>>
Components And Functions
Components And Functions

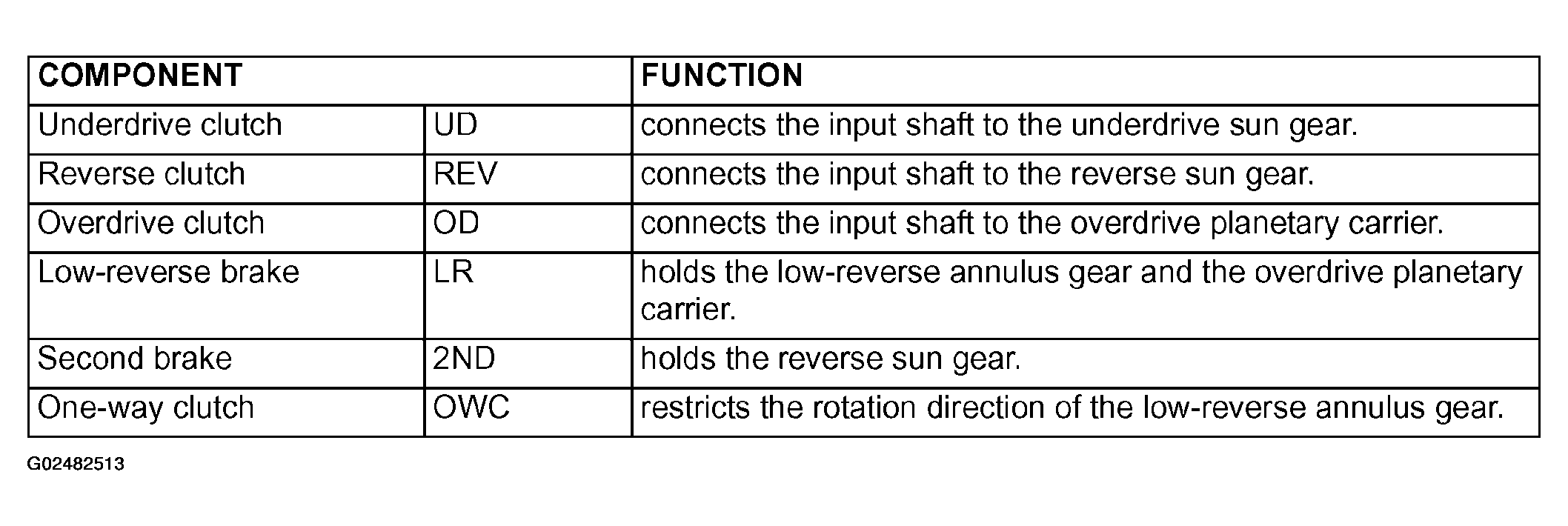

Fig 1: Components And Functions Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
