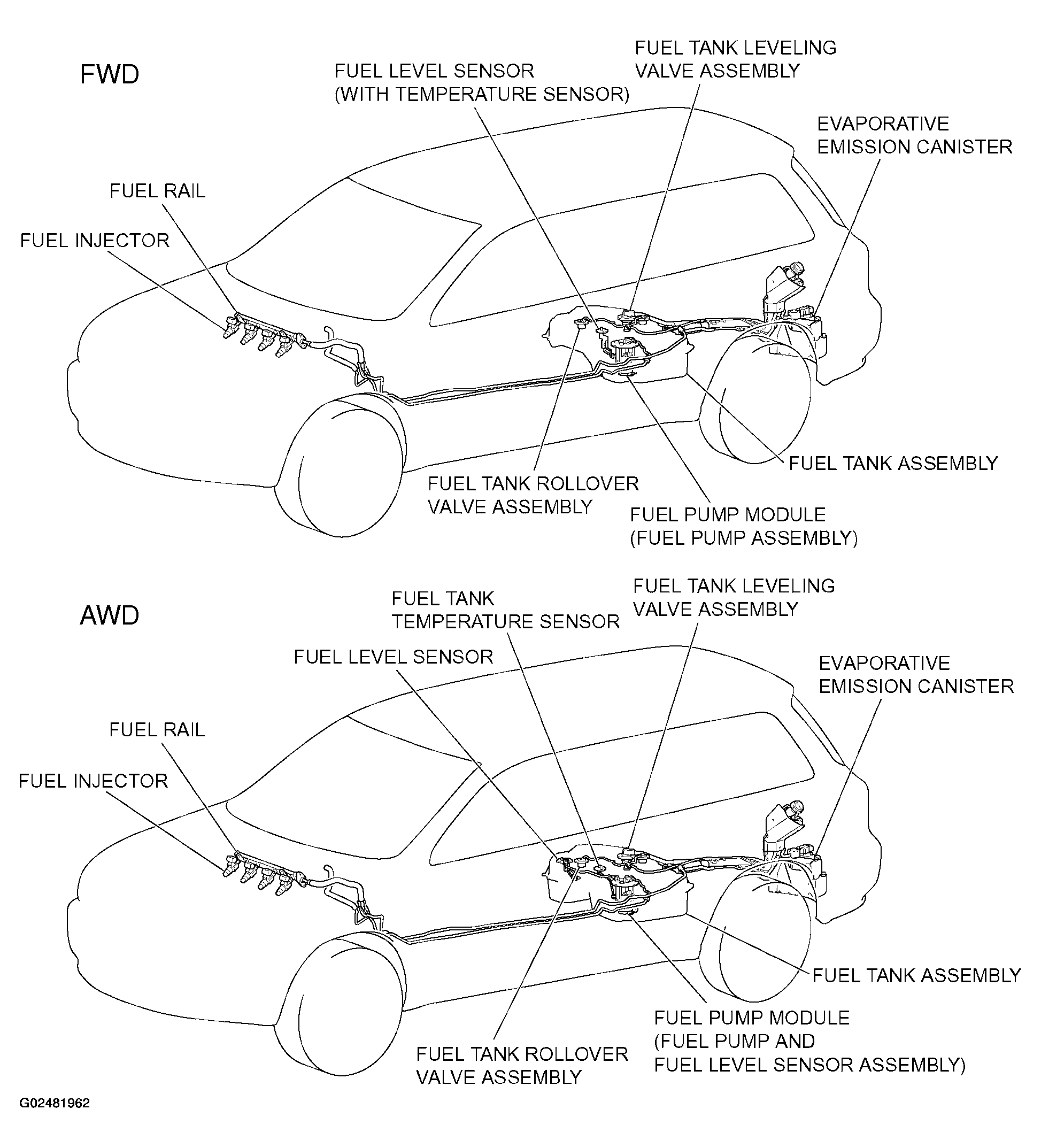

Fuel Supply: General Description
- The fuel tank is located under the floor of the rear seats to provide increased protection and a more luggage space.
- A fuel tank rollover valve assembly has been adopted to prevent fuel from leaking out in case of a collision.
- A fuel pump module [fuel pump assembly < FWD >, fuel pump and gauge assembly < AWD >], including fuel pump, fuel filter, reservoir and fuel level sensor, has been adopted to lighten weight and improve serviceability.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
