Fuel Pump Module Disassembly And Assembly: Notes

NOTE: For removal and installation, refer to FUEL PUMP (MODULE) REPLACEMENT  .

< FWD >

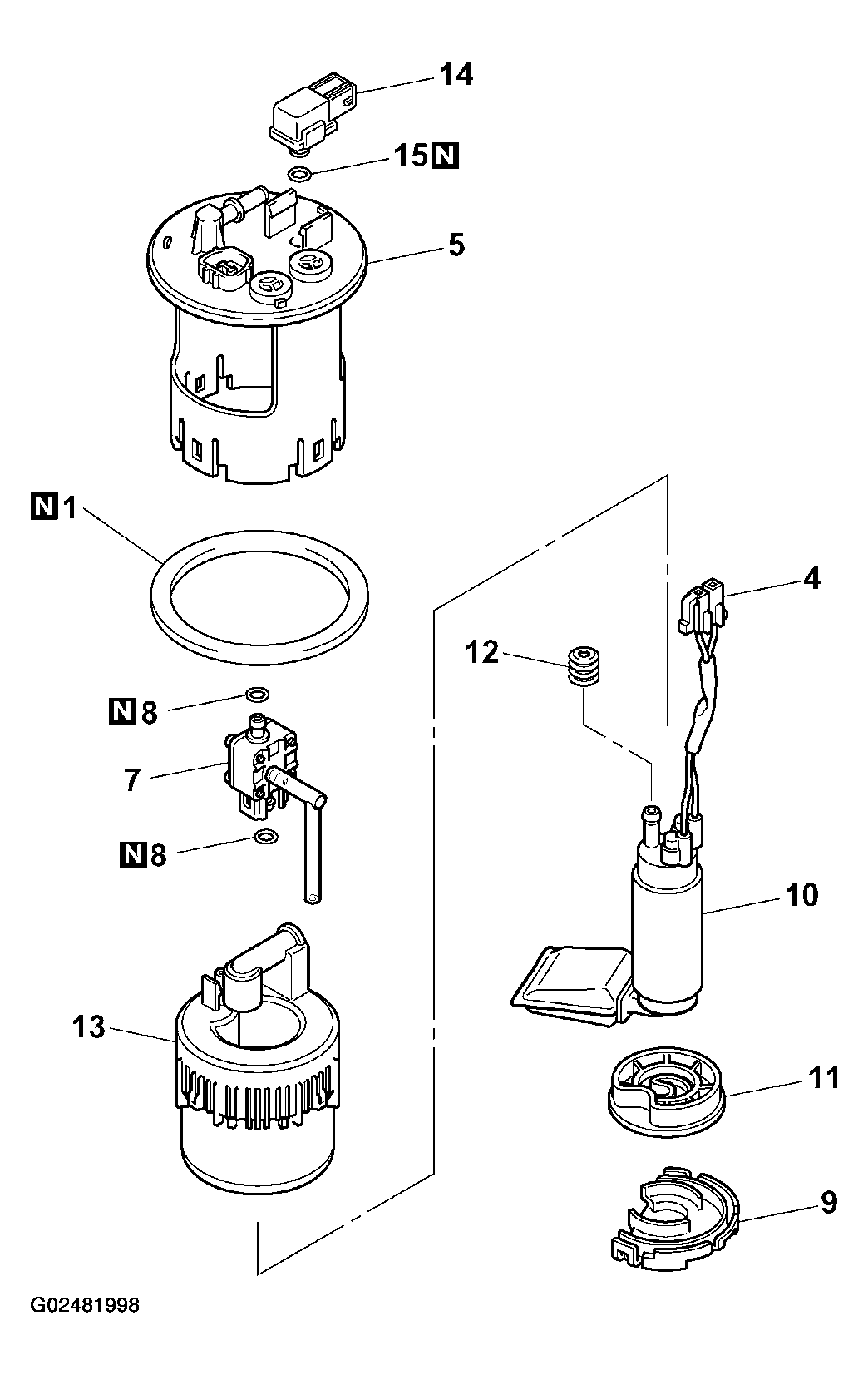

Fig 1: Disassembling/Assembling Fuel Pump Module (FWD) (1 Of 2)
G02481998Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< FWD >

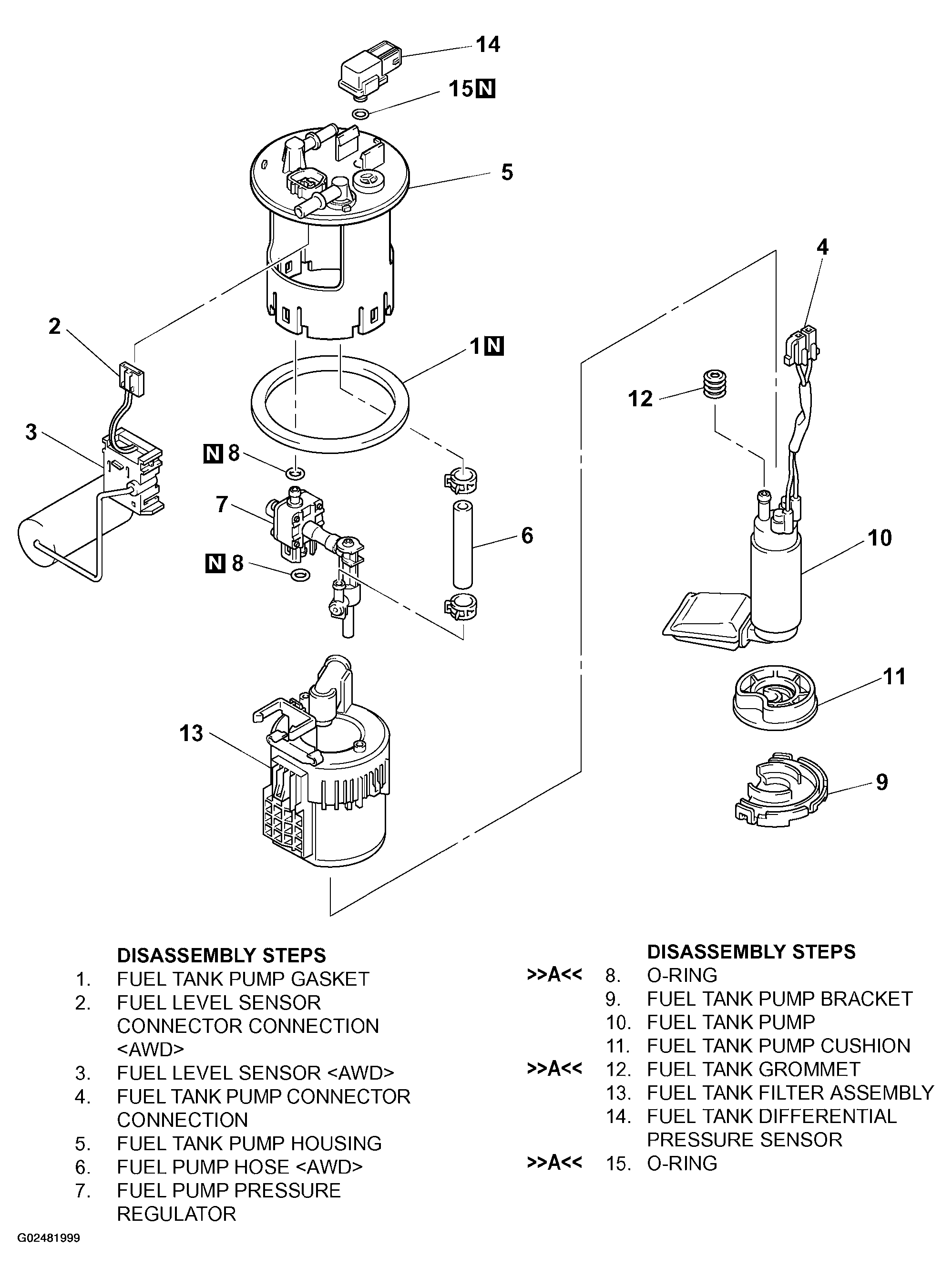

Fig 2: Disassembling/Assembling Fuel Pump Module (FWD) (2 Of 2)
G02481999Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
