Removal And Installation: Notes

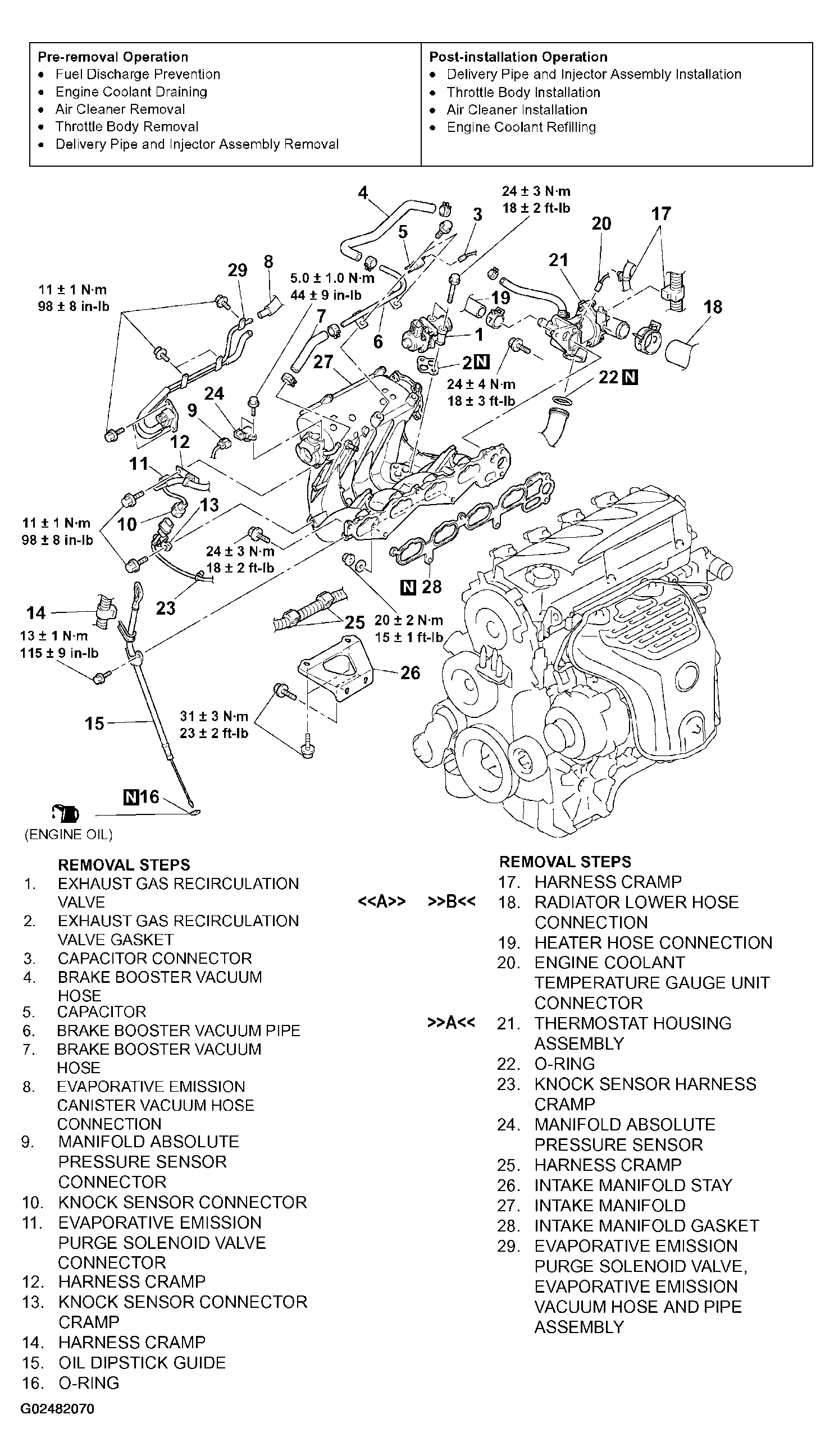

Fig 1: Removing/Installing Intake Manifold
G02482070Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
