Home >> Mitsubishi >> 2005 >> Outlander XLS, FWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs (Anti-Lock Brake System) >> Wheel Speed Sensor >> Removal And Installation >> Notes

Removal And Installation: Notes

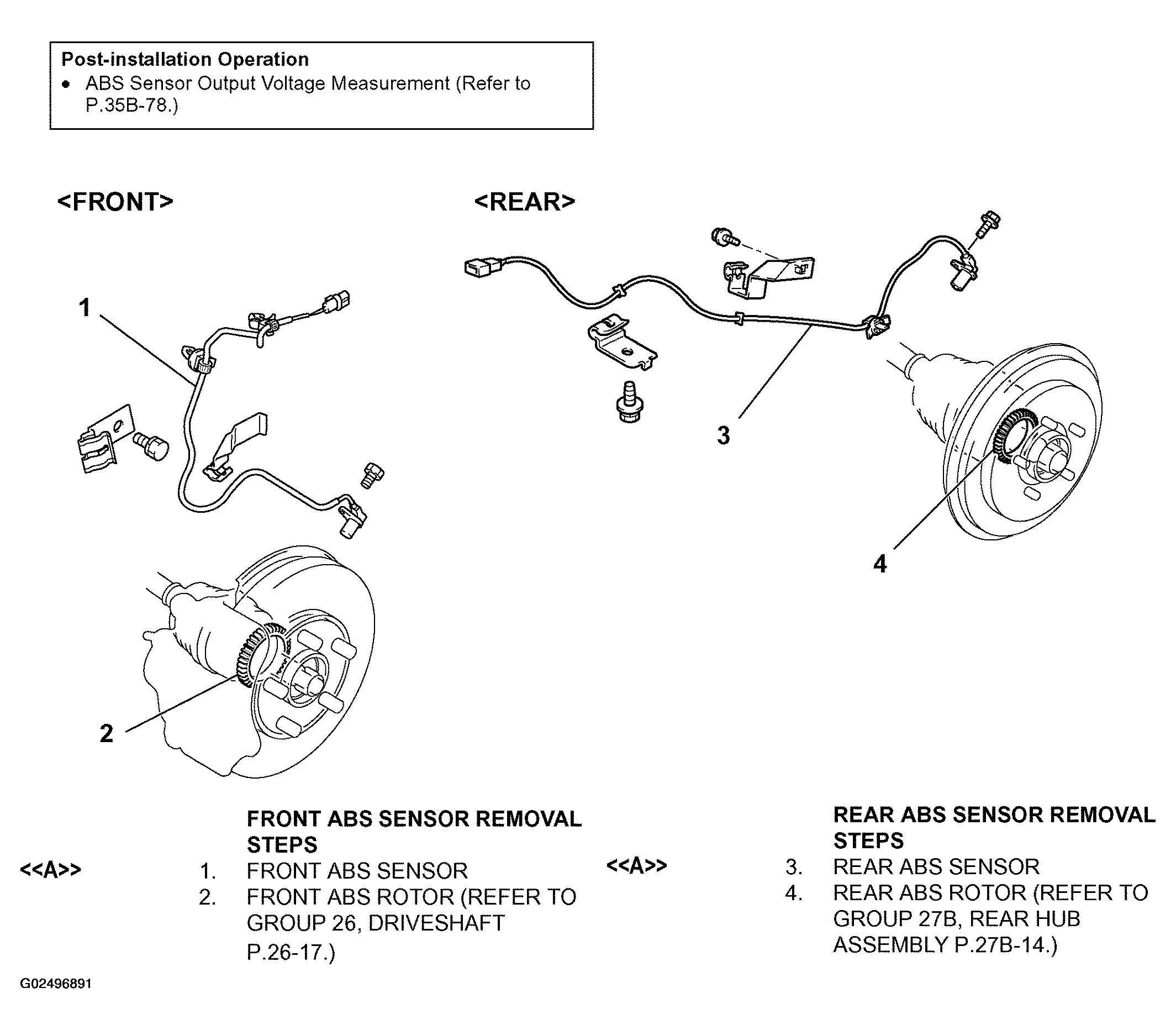

Fig 1: Removing And Installing Wheel Speed Sensor

G02496891

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
