Removal And Installation: Notes

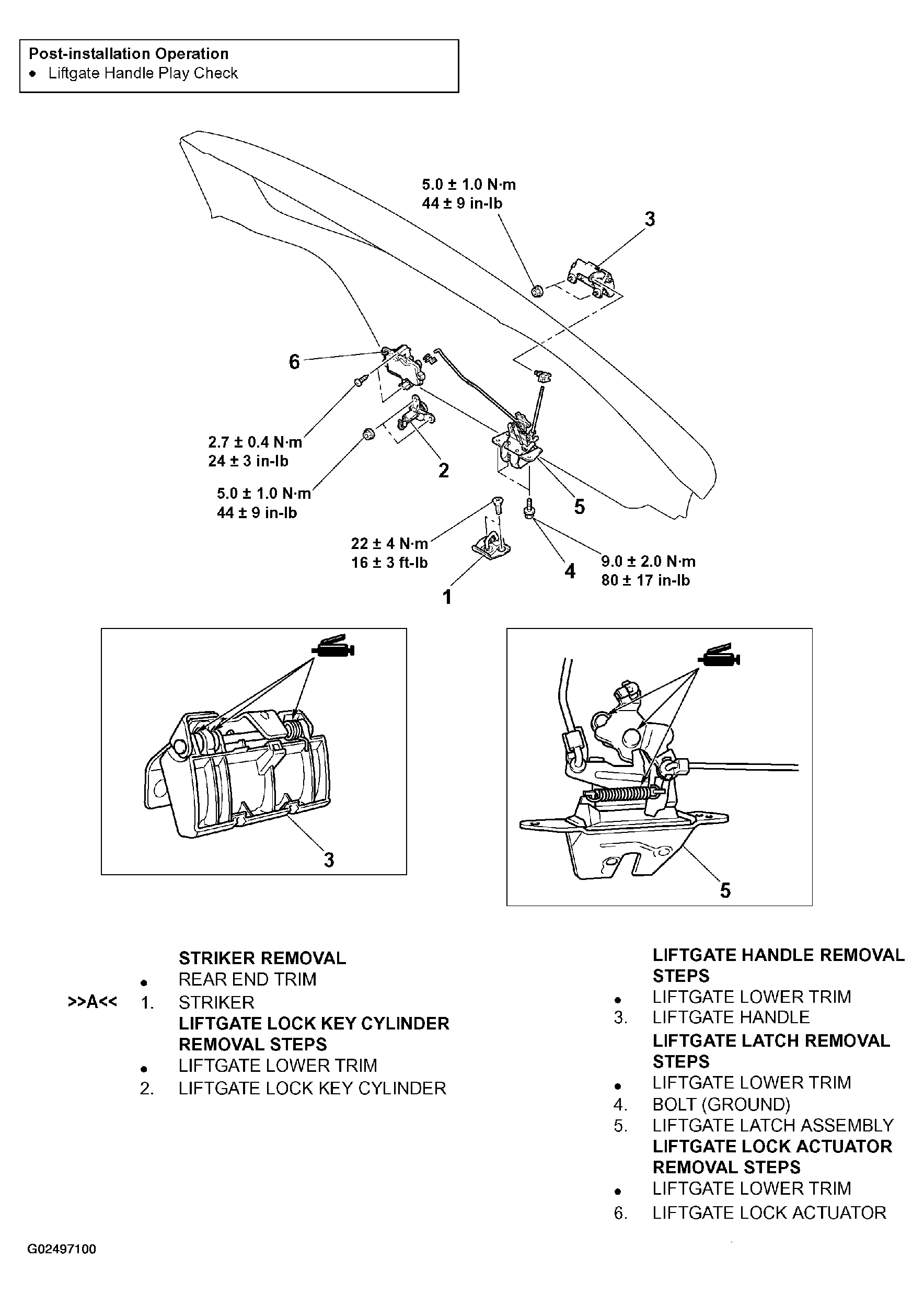

Fig 1: Removing/Installing Liftgate Handle And Latch

G02497100

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
