Disassembly And Assembly: Notes

NUMBER OF CLUTCH DISCS AND PLATES

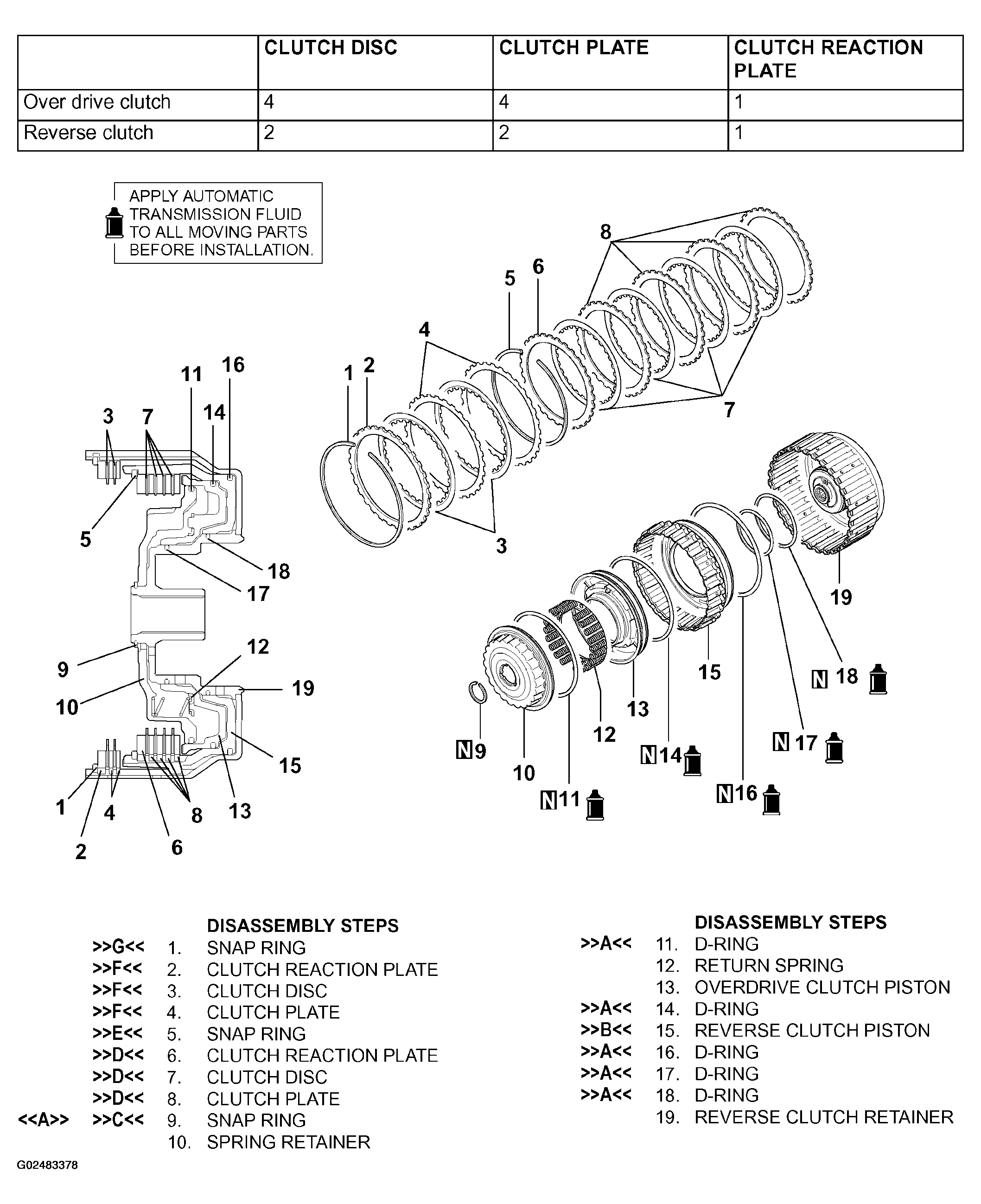

Fig 1: Disassembling/Assembling Reverse And Overdrive Clutch
G02483378Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
