Disassembly And Assembly: Notes

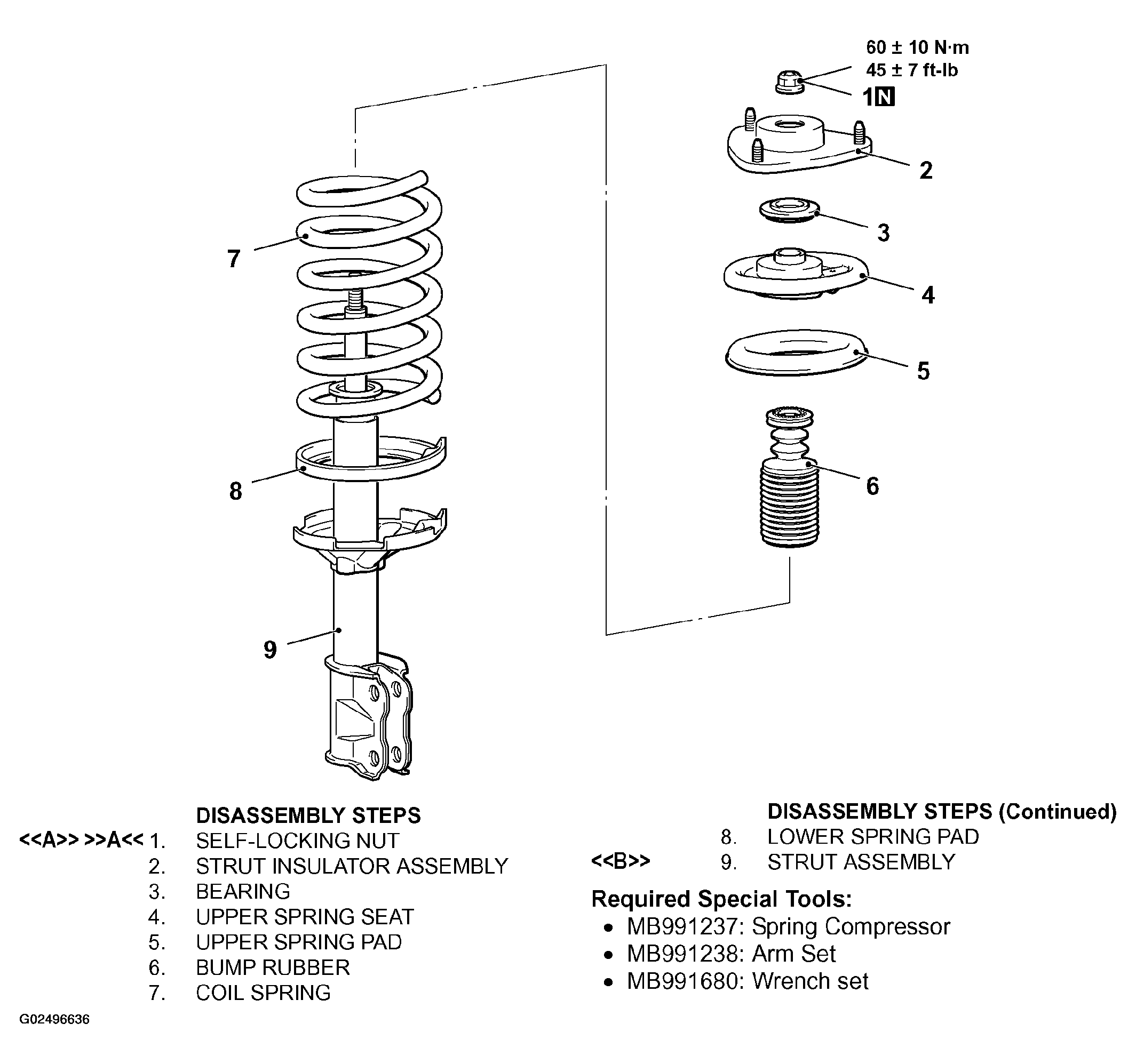

Fig 1: Disassembling Strut Assembly
G02496636Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
