Front Suspension & Wheel Alignment
>>
Specifications
>>
General Specifications
>>
Coil Spring
Coil Spring

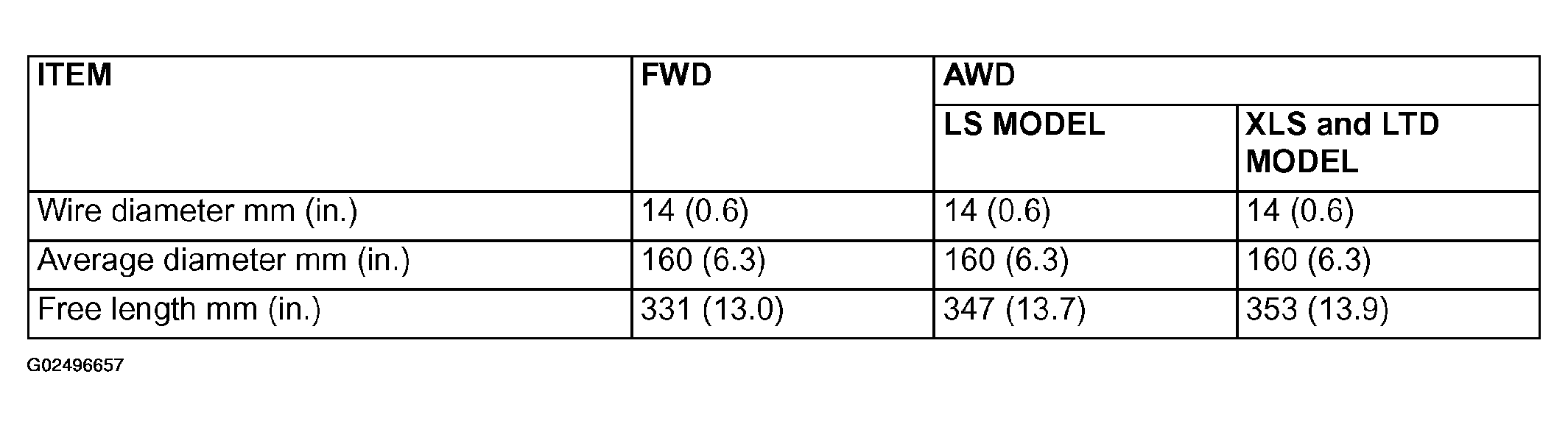

Fig 1: Coil Spring Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
