Outlander XLS, AWD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Power Steering Hoses
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

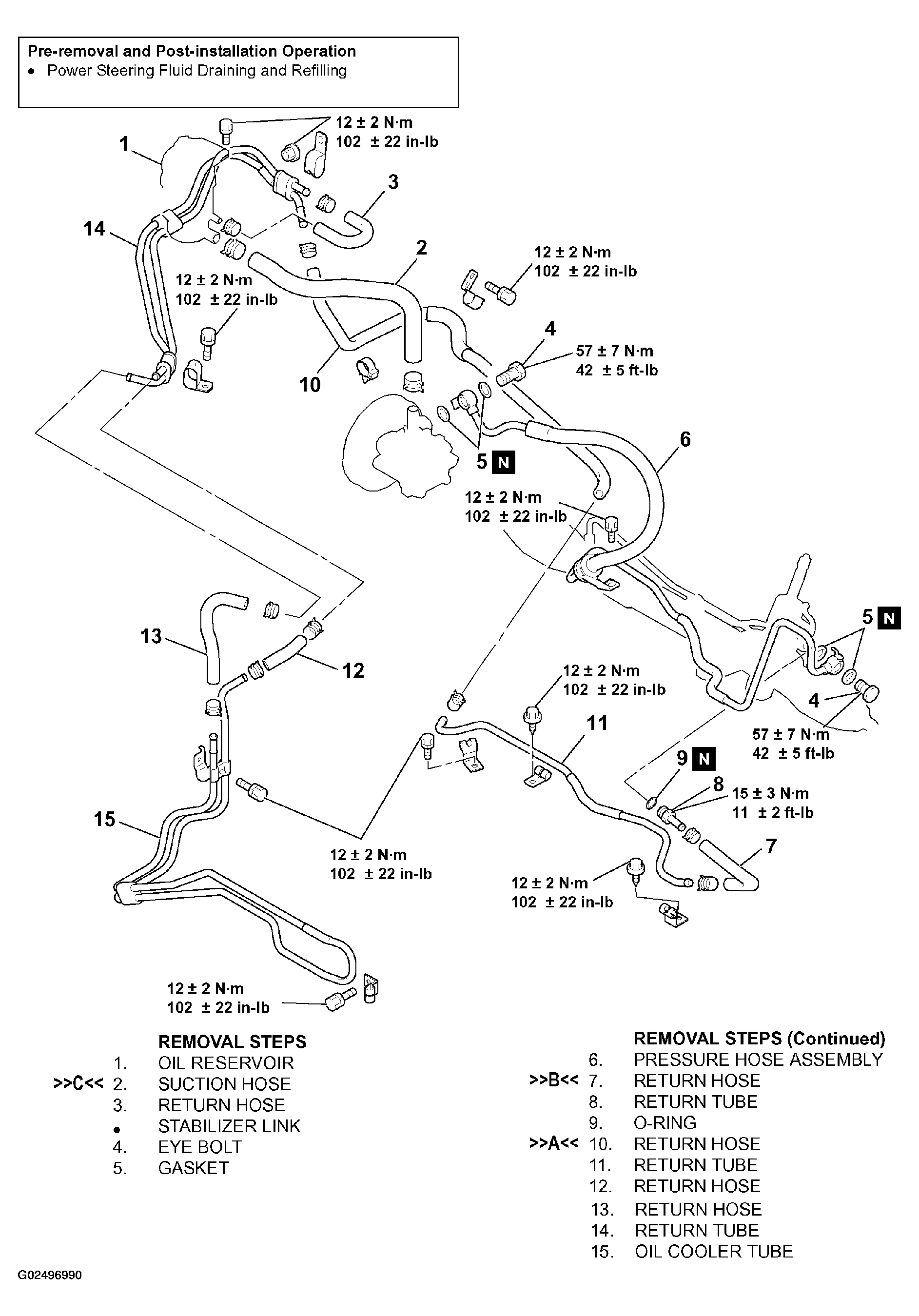

Fig 1: Removing/Installing Power Steering Hoses
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
