Home >> Mitsubishi >> 2005 >> Outlander XLS, AWD >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Supplemental Restraint System (SRS) >> Seat Slide Sensor >> Removal And Installation >> Notes

Removal And Installation: Notes

WARNING:
  • Never attempt to disassemble or repair the seat slide sensor. If faulty, replace it.
  • Do not drop or subject the seat slide sensor to impact or vibration. Replace the seat slide sensor, if dents, cracking, deformation, or rust are present.

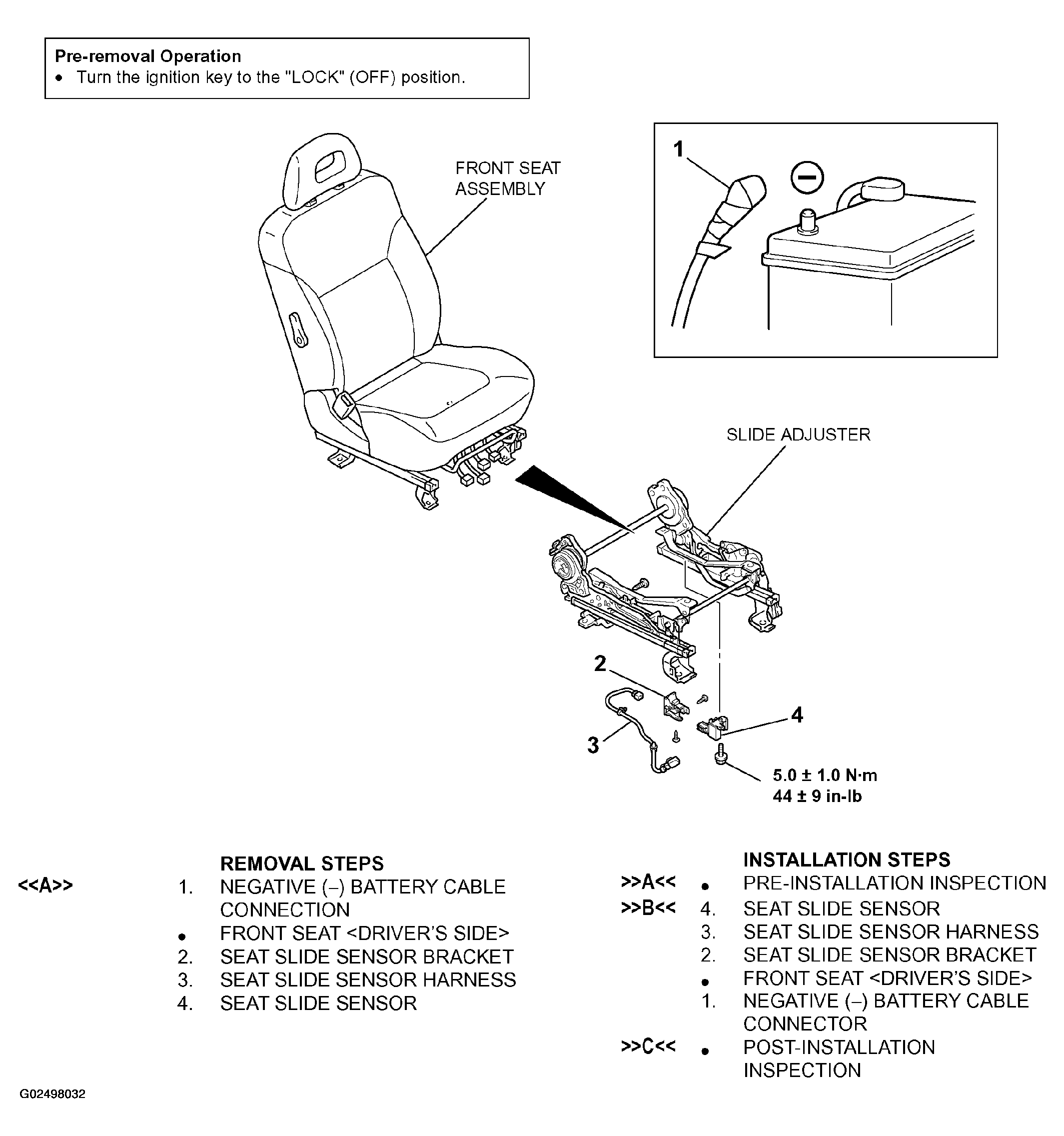

Fig 1: Removal Steps Of Seat Slide Sensor
G02498032Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
