On-Board Diagnostic/SRS Warning Light Function: Schematic

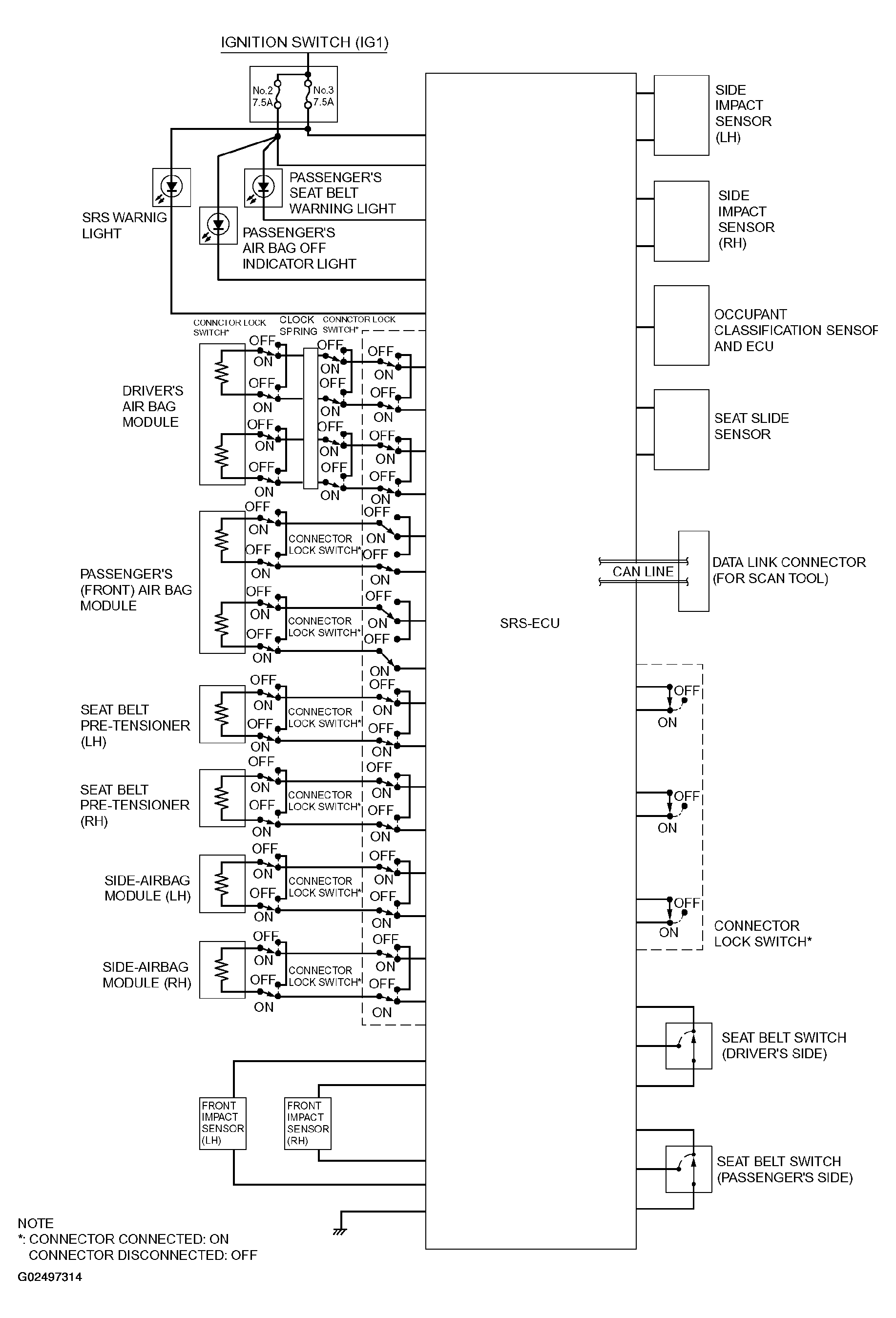

Fig 1: SRS Schematic Diagram

G02497314

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
