Clock Spring Check

If any malfunction is found in the following inspections, replace the clock spring with a new one.

1. Check the connectors and protective tube for damage, and the terminals for deformation.
2. Visually check the case for damage.
3. Check to see that there is a charge (continuity) between the C-308 clock spring connector terminal 1 and C-305 horn switch.

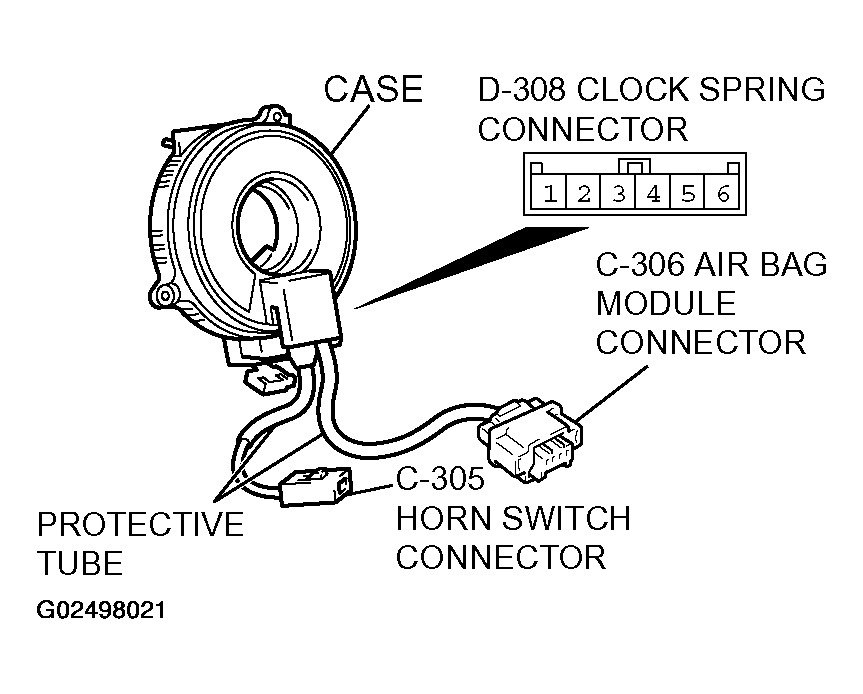

   Fig 1: Identifying Clock Spring Connector C-308 And Horn Switch C-305

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   CAUTION: Do not directly insert a probe, etc. into the terminal from the front of the connector.
4. Insert the special tool (MB991222) from behind the airbag module connector of the C-306 driver's side.
5. As shown in the figure, connect the circuit tester to the special tool (MB991222) and check to see that there is a continuity between the terminals.

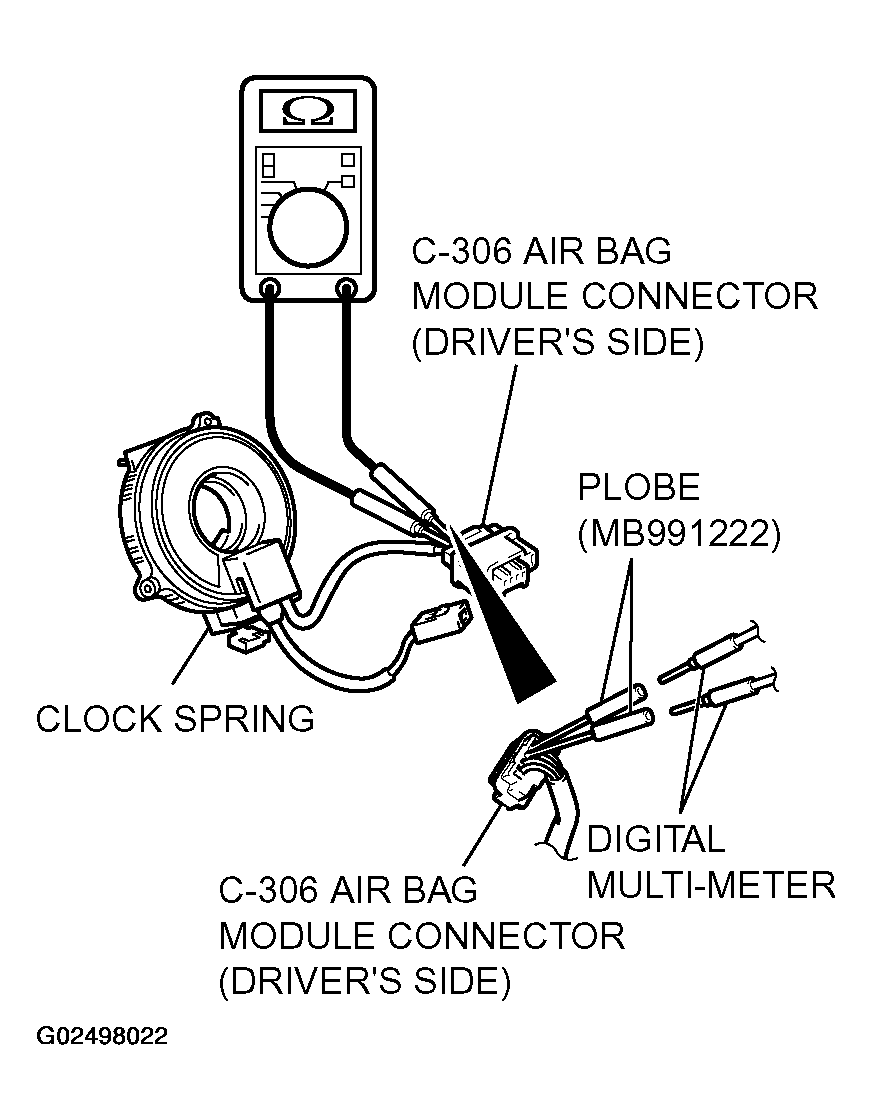

   Fig 2: Inserting Special Tool (MB991222) From Behind Airbag Module Connector Of C-306 Driver Side
