Rectangular Waterproof Connector

  1. Disengage the front holder with a screwdriver and remove it.

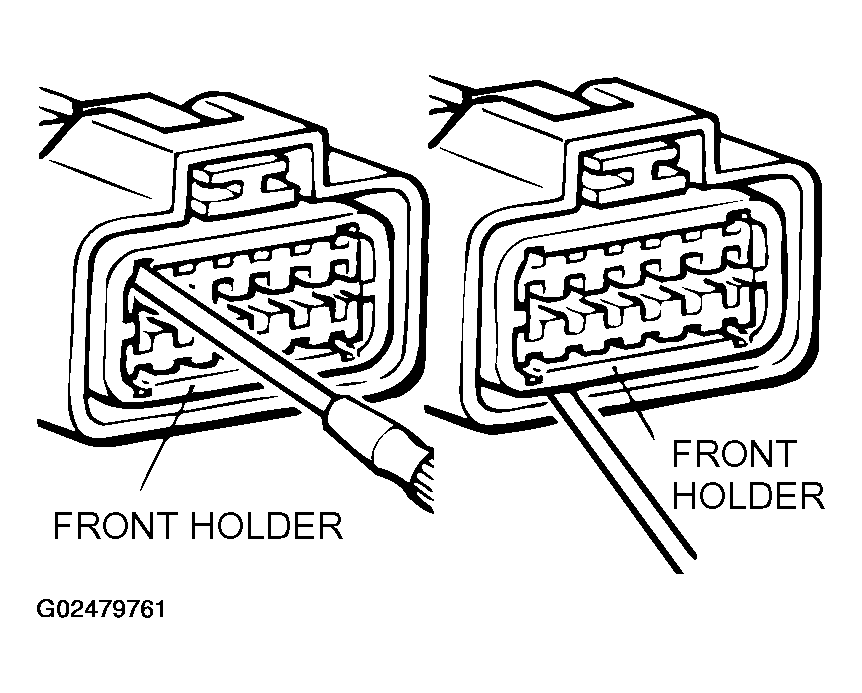

    Fig 1: Removing Front Holder
    G02479761Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Insert the tip of a screwdriver [0.8 mm (0.03 inch) width] into the connector as shown in the figure, push it lightly to raise the housing lance, and pull out the terminal.
    Fig 2: Removing Terminal
    G02479762Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Press the contact point to the male terminal down by holding a screwdriver [1.4 mm (0.06 inch) width] as shown in the figure. Lightly squeeze the outer edge so the flats are parallel with the bottom.
    Fig 3: Pressing Contact Point To Male Terminal Down
    G02479763Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
