Section 13 (Abs (Anti-Lock Brake System))
>>
Special Tools
Special Tools
WARNING:
This page is about a different car, the 2005 Mitsubishi Endeavor. However, it is still accessible from the selected car via links, so may be relevant.

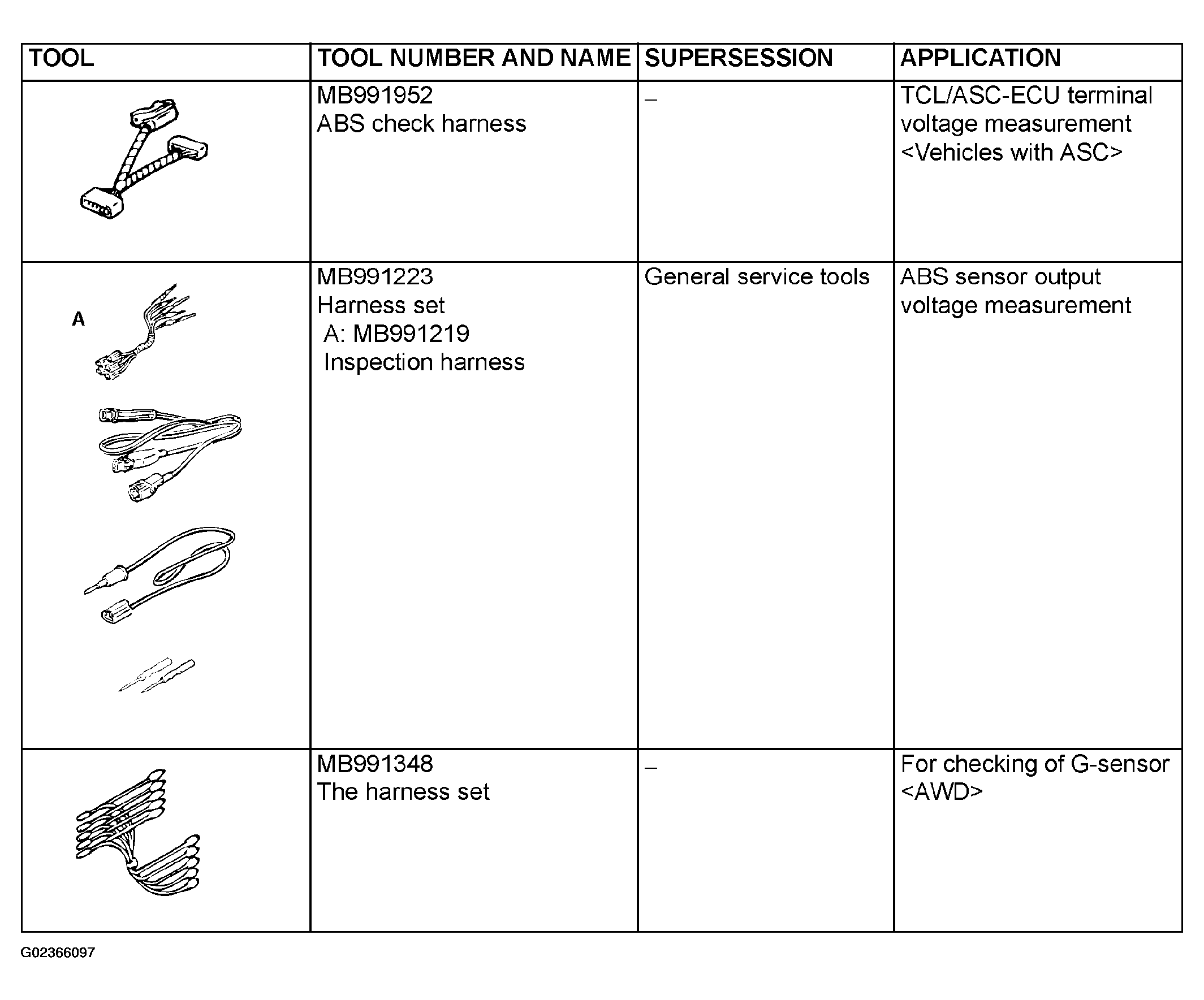

Fig 1: Special Tools Chart (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

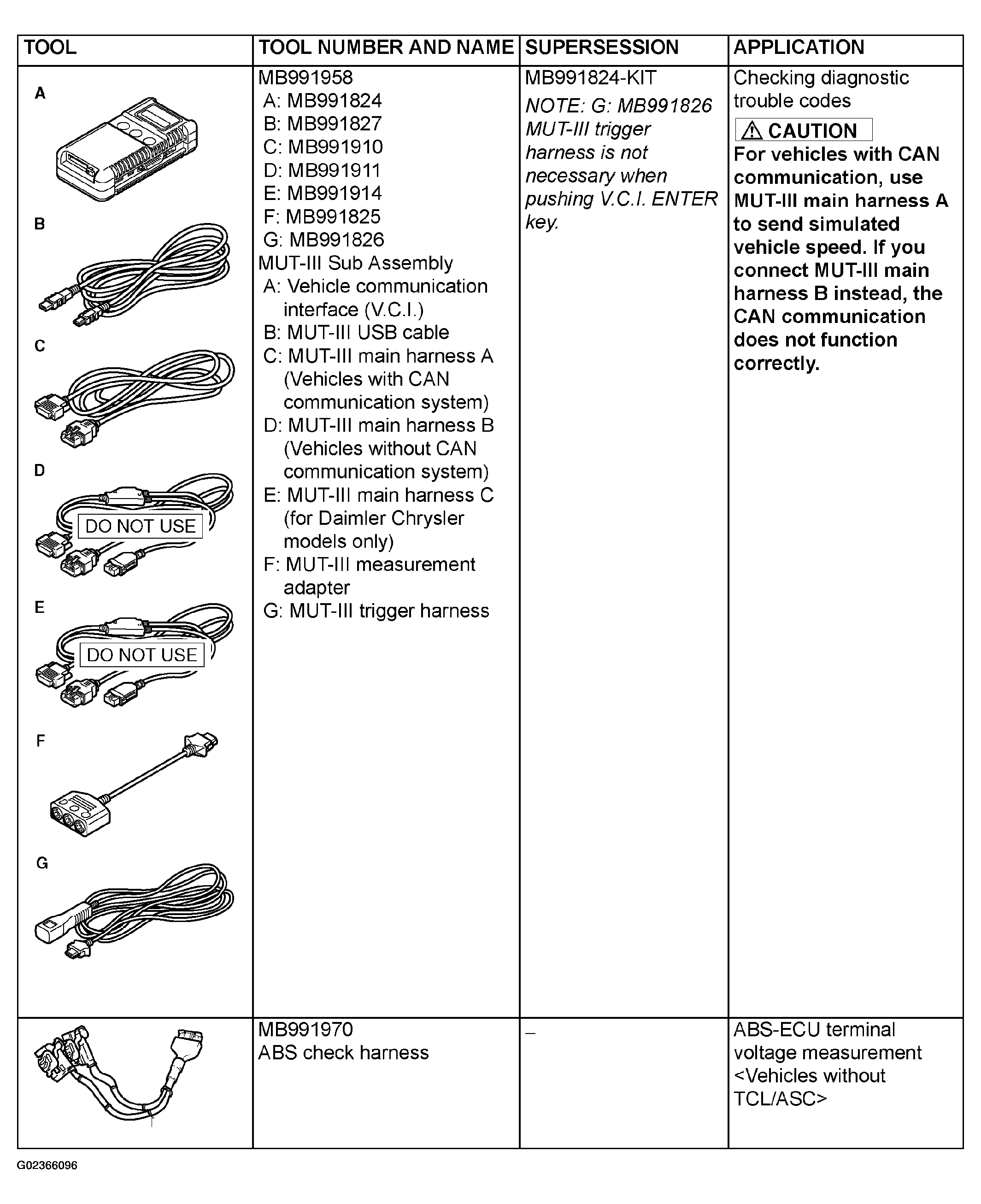

Fig 2: Special Tools Chart (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
