Section 10 (Engine Cooling)
>>
On-Vehicle Service
>>
Fan Control Relay Continuity Check
Fan Control Relay Continuity Check
WARNING:
This page is about a different car, the 2005 Mitsubishi Endeavor. However, it is still accessible from the selected car via links, so may be relevant.

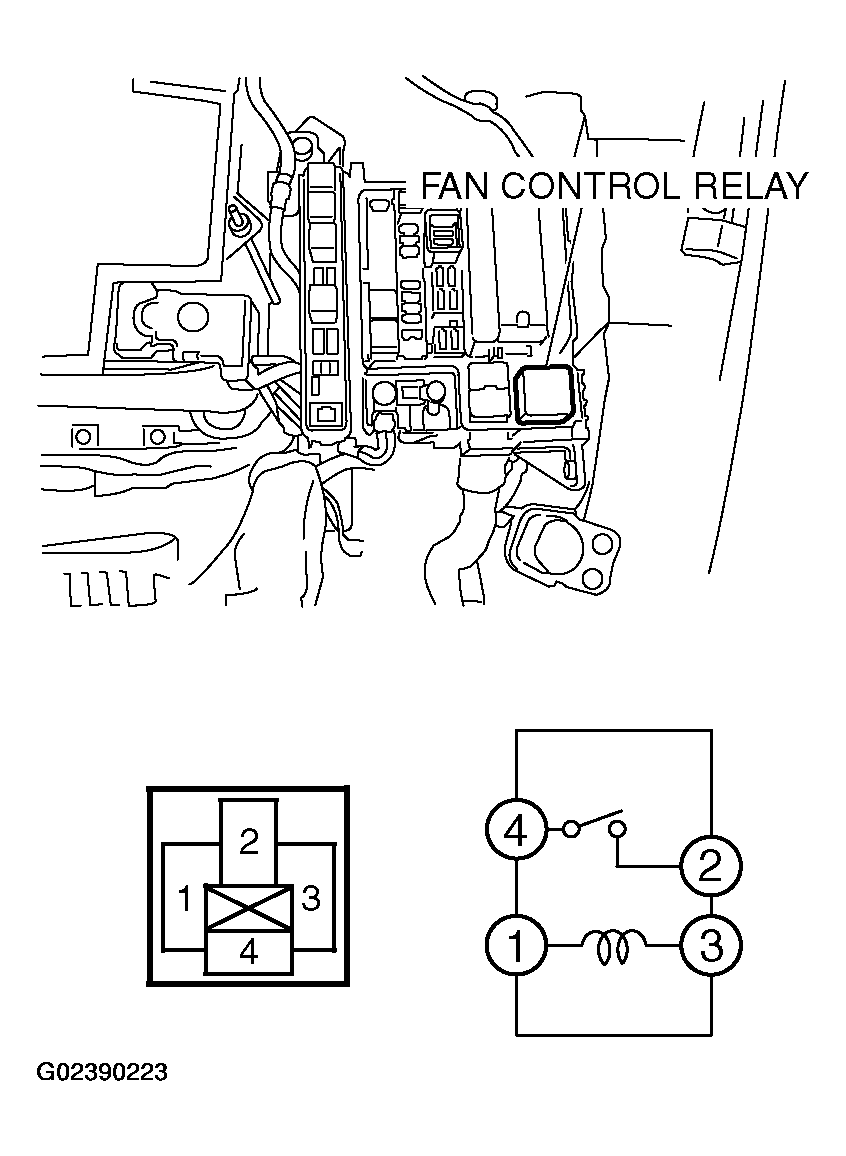

Fig 1: Checking Fan Control Relay Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

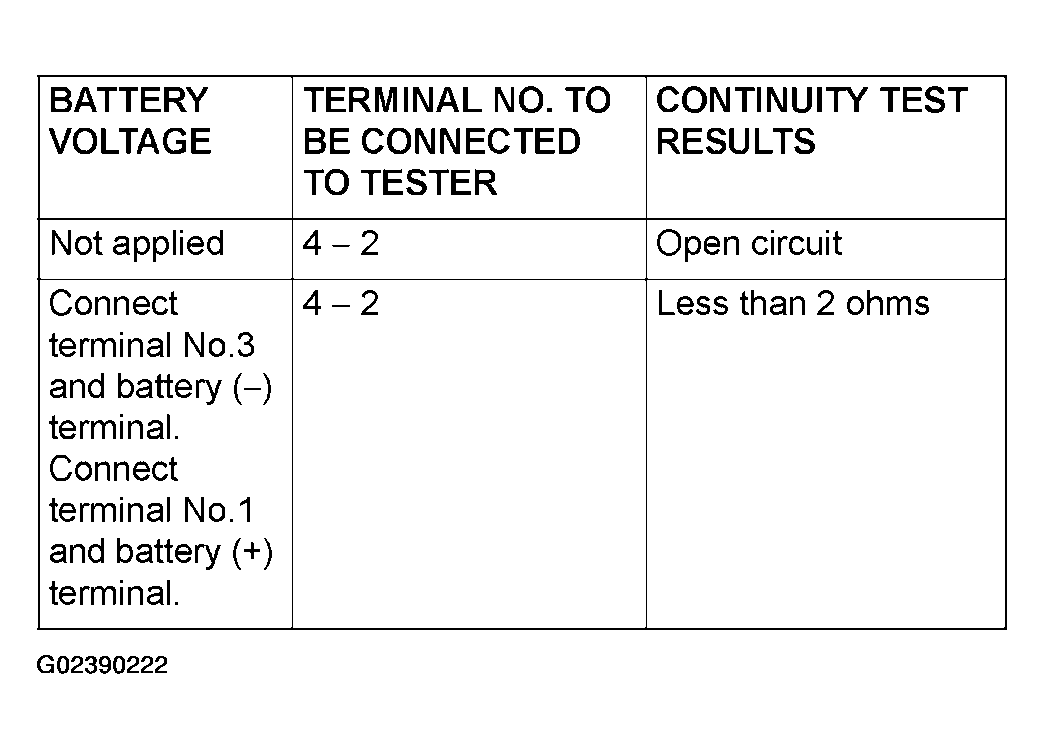

Fig 2: Terminal Connected Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
