Removal And Installation: Notes

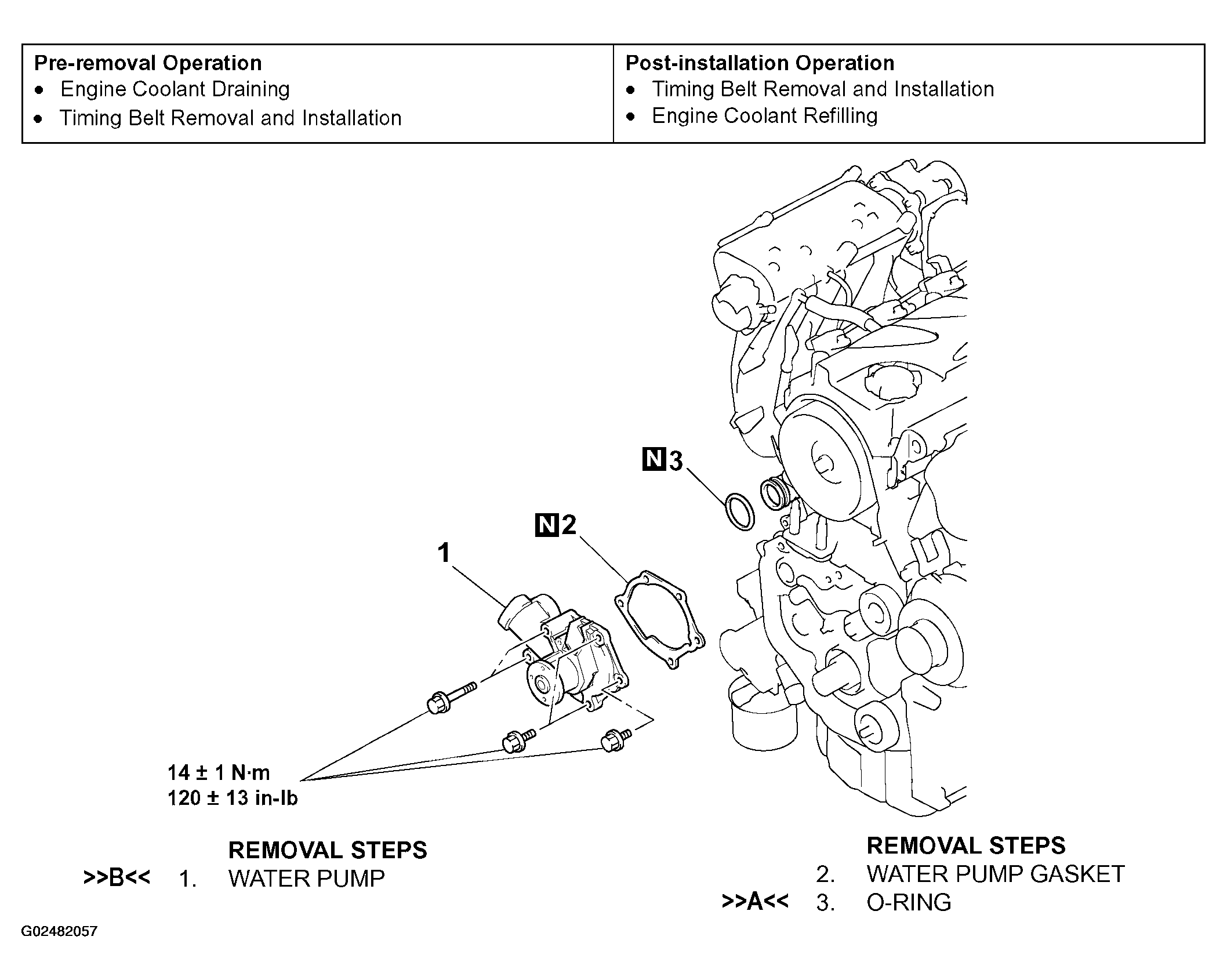

Fig 1: Removing/Installing Water Pump
G02482057Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
