Home >> Mitsubishi >> 2005 >> Outlander XLS, AWD >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling >> Thermostat >> Removal And Installation >> Notes

Removal And Installation: Notes

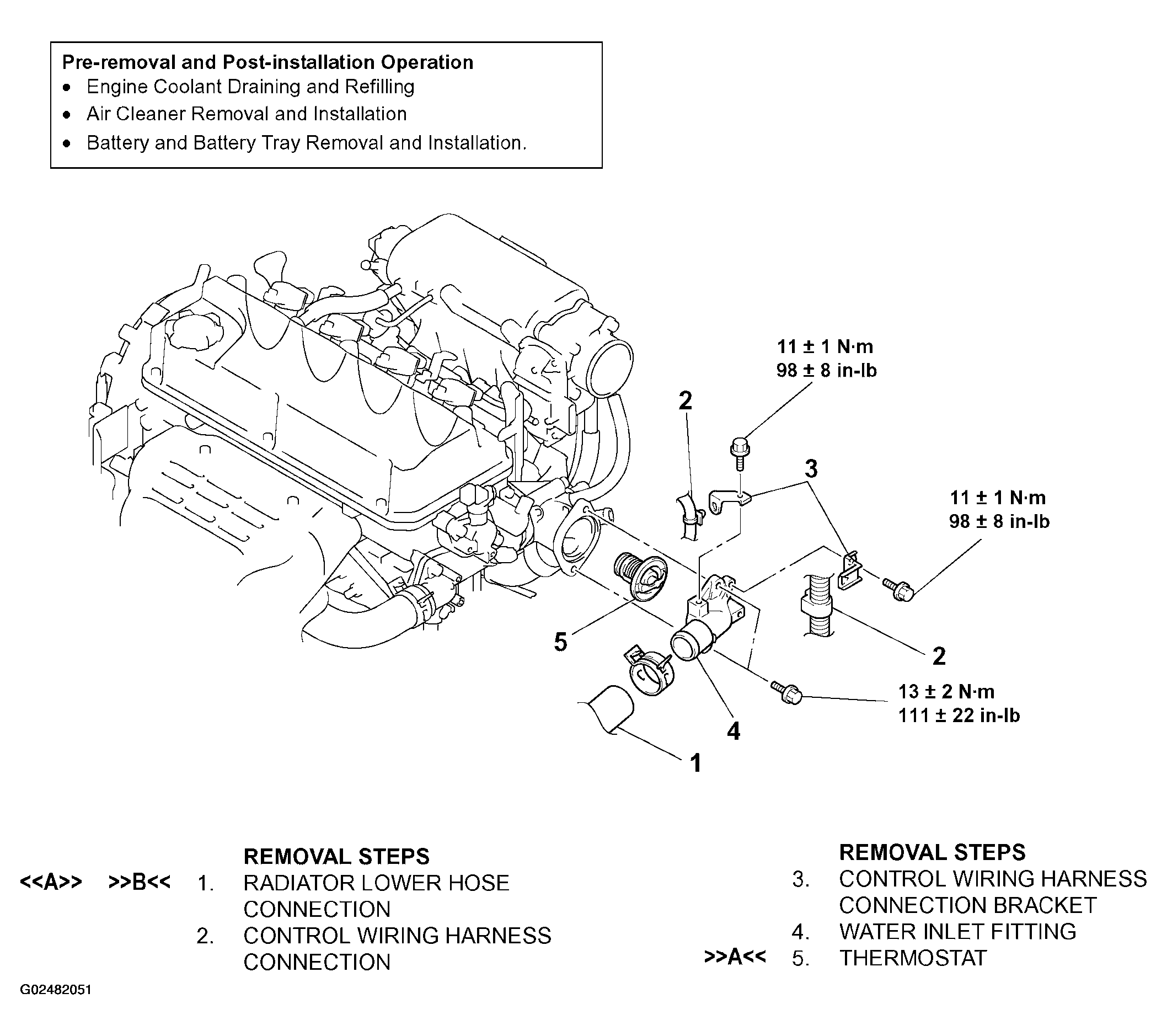

Fig 1: Removing/Installing Thermostat
G02482051Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
