Removal And Installation: Notes

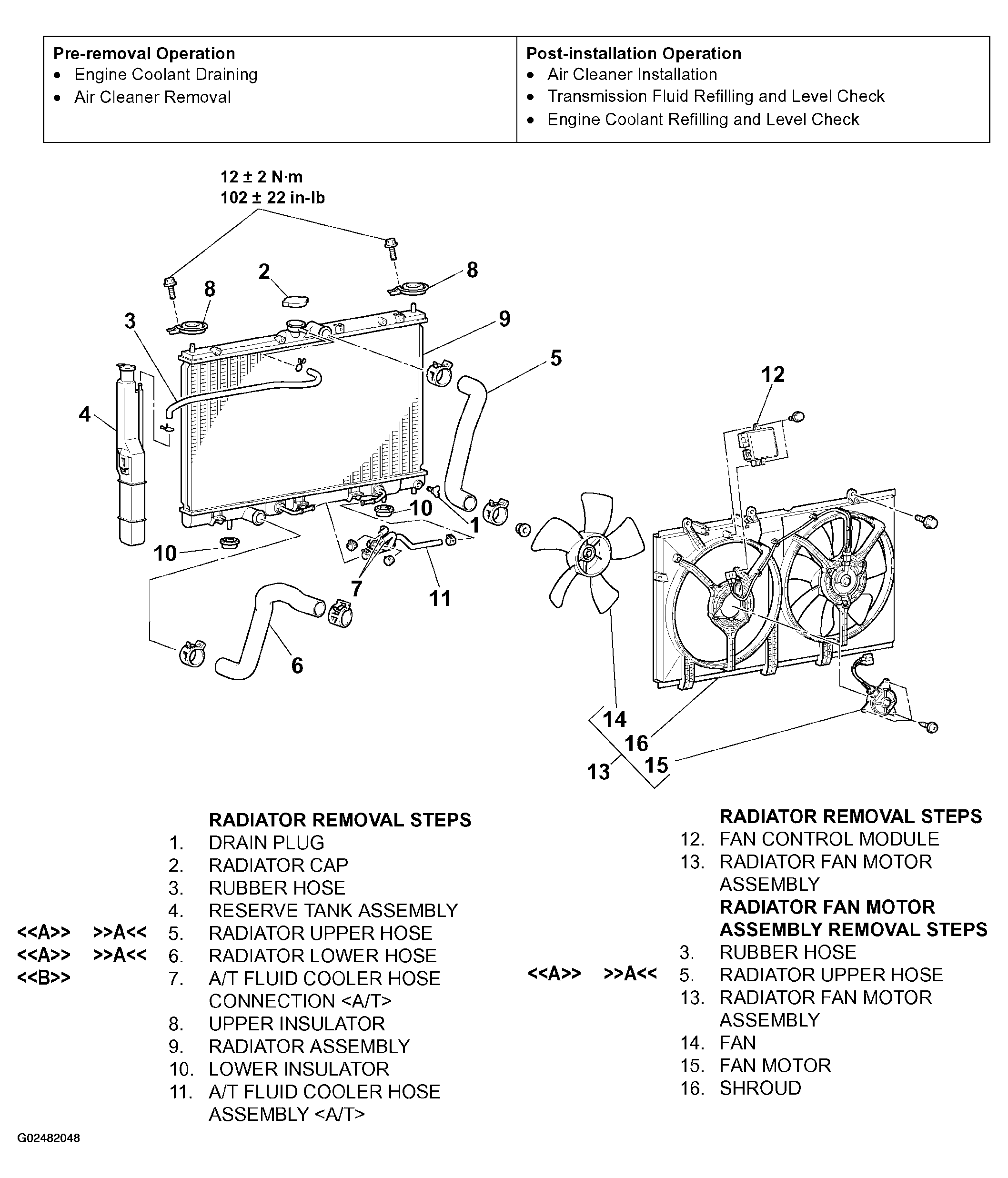

Fig 1: Removing/Installing Radiator
G02482048Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
