Fan Control Module Check

  1. Remove the fan control module connector.
  2. Turn the ignition switch to the "ON" position, and measure the voltage between the harness-side connector terminals.
    1. Standard value: Battery positive voltage

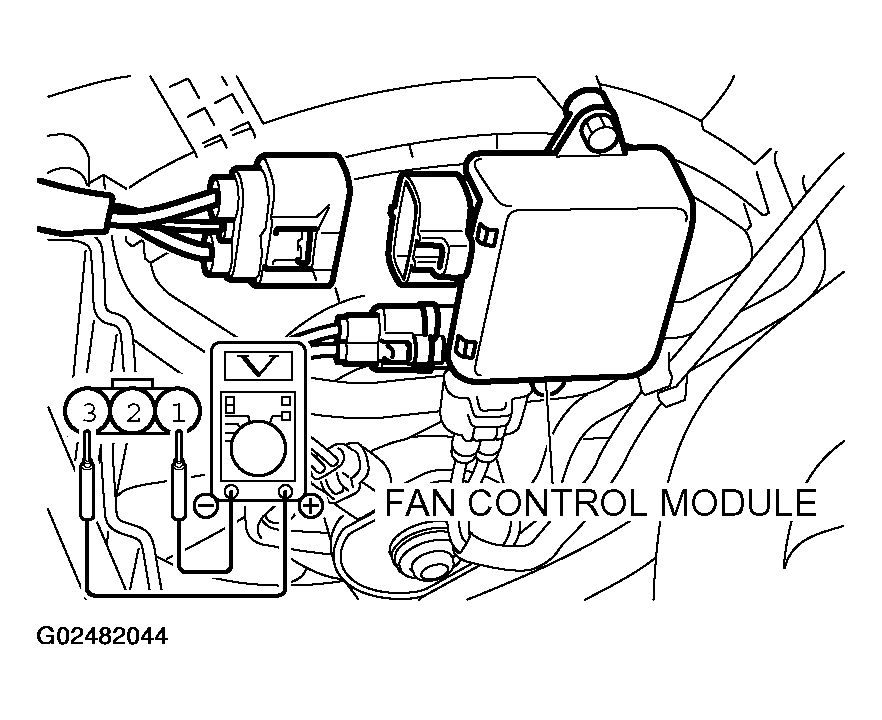

    Fig 1: Checking Voltage Between Fan Control Module Connector Terminals 1 And 3
    G02482044Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 2: Checking Voltage Between Fan Control Module Connector Terminals 1 And 2
    G02482045Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Connect the fan control module connector, and disconnect the condenser fan motor connector.
  4. Ensure that the A/C switch is off, and start the engine and run it at idle.
  5. Measure the voltage between the fan control module-side connector terminals.
    1. Standard value: 1V or less
  6. Turn the A/C switch to the "ON" position.
    WARNING: Stay clear of the fan when the fan starts running.
  7. Measure the voltage between the fan control module-side connector terminals while the fan is running. The voltage should repeat the values 1) and 2) below.
    1. Standard value:
      1. 1) 8.2 +/- 2.6 V
      2. 2) Battery positive voltage +/- 2.6 V
  8. If the voltage does not repeatedly change as indicated, replace the fan control module.
