General Circuit Diagram For The Power Windows

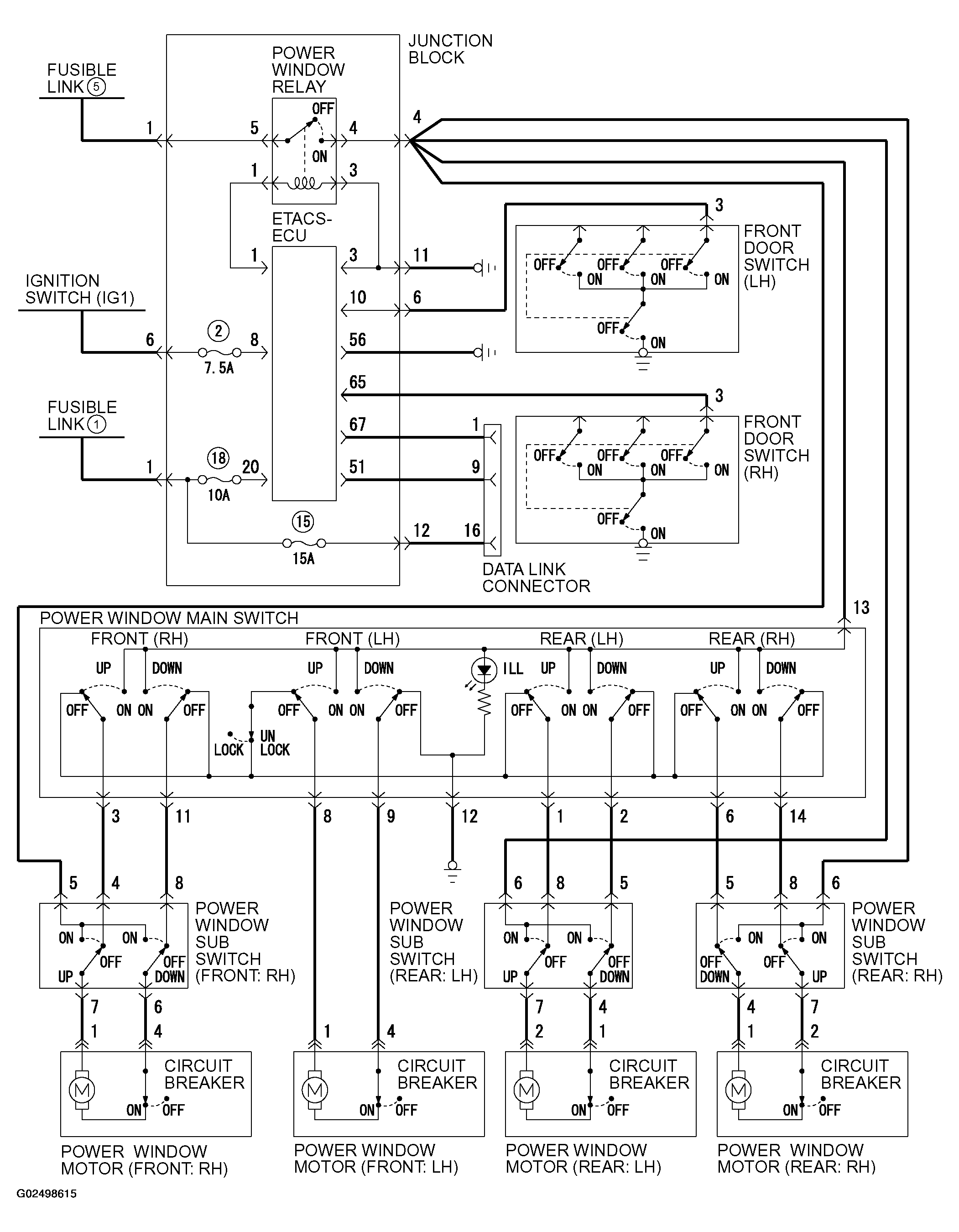

Fig 1: General Circuit Diagram For Power Windows

G02498615

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
