Hazard Light

The hazard lights output (flashing) is turned ON when the hazard switch is turned OFF to ON. When the switch is turned ON again, the output is turned OFF.

NOTE: The hazard light switch is a push-return type toggle switch.

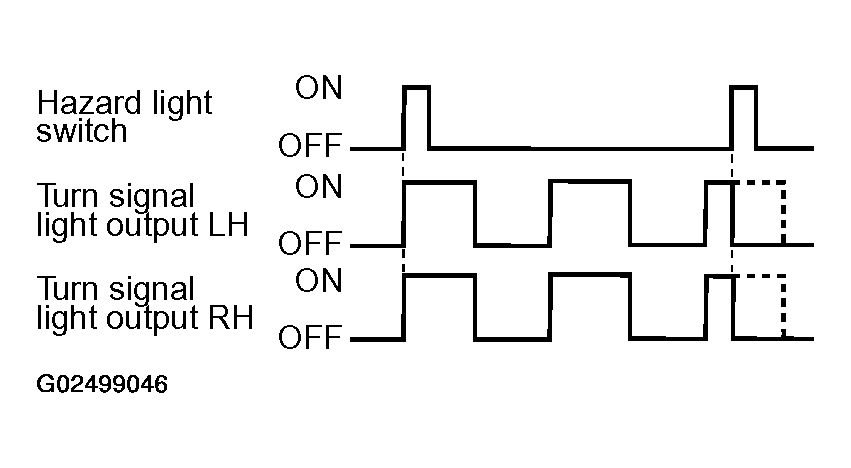

Fig 1: Identifying Hazard Light Graph
G02499046Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
