Service Data Check

Use the scan tool and the SWS monitor kit to check "DATA LIST" or "FUNCTION DIAG."
This "DATA LIST" or "FUNCTION DIAG." check is applicable for signals, which are transmitted and received through the SWS communication line. For input signals, which are not compatible with the SWS monitor kit, refer to the PULSE CHECK PROCEDURE (by using the scan tool or voltmeter).

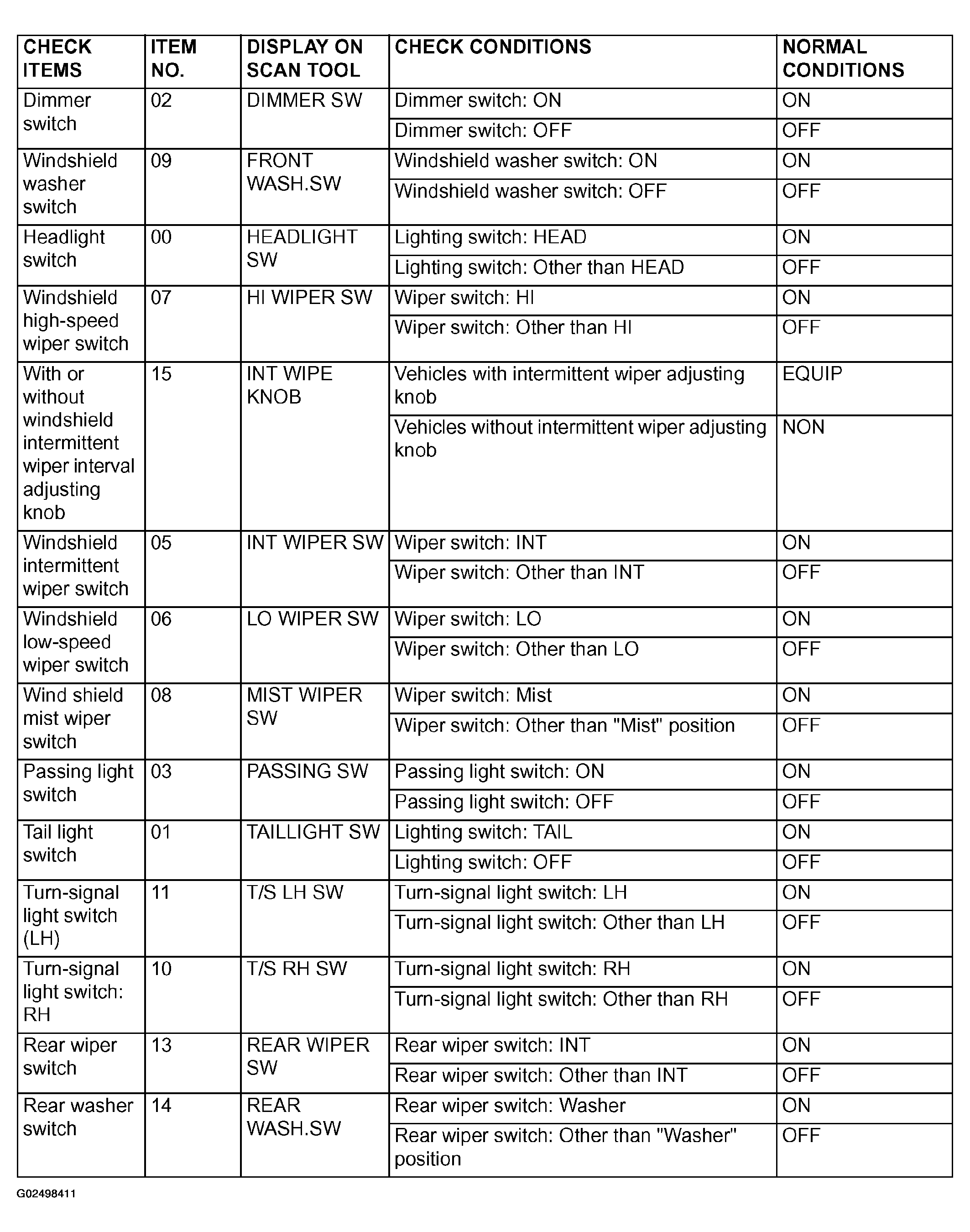

The table in the illustration shows the service data and their normal condition, which are displayed during the "DATA LIST."

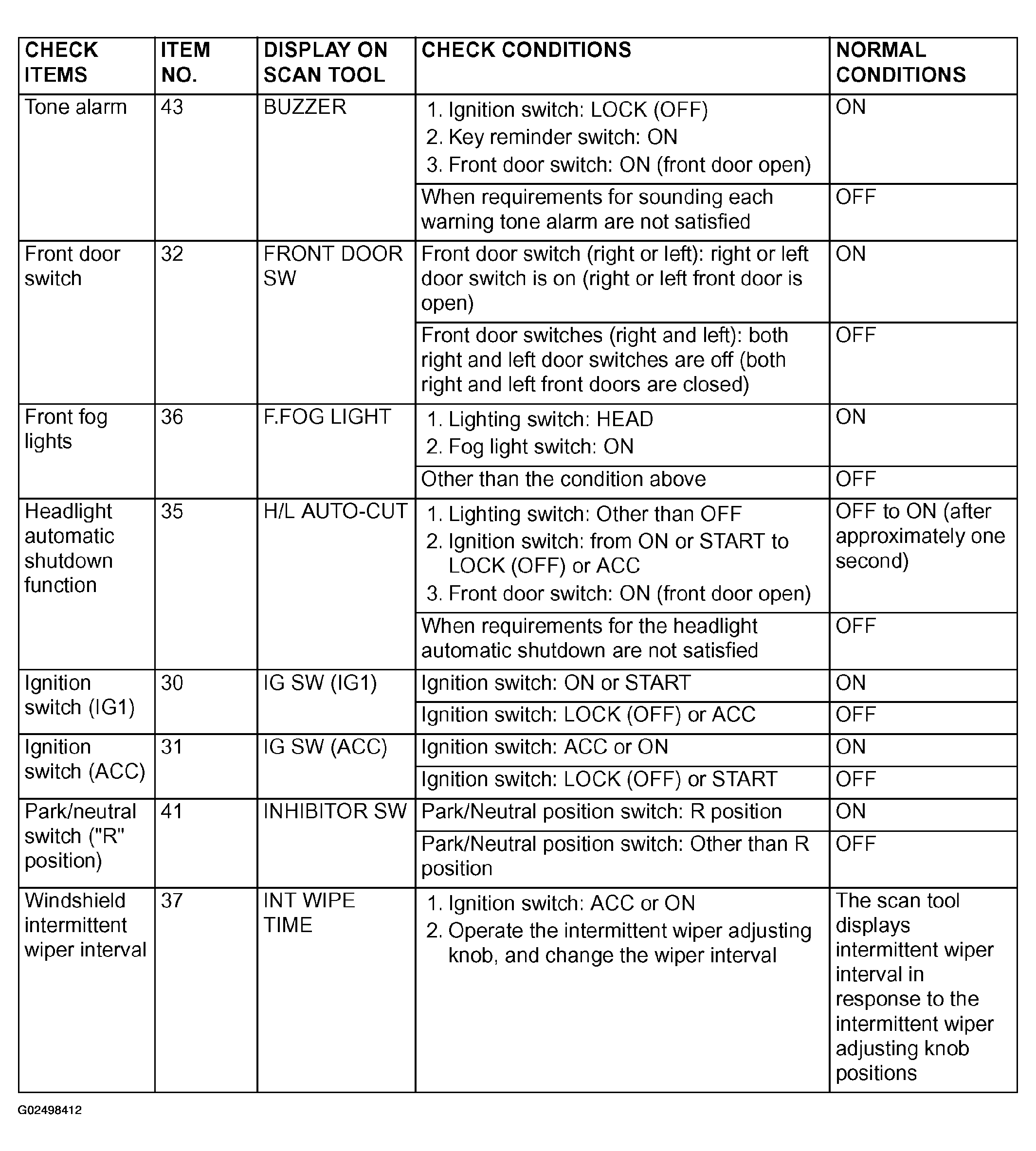

Fig 1: Data List Reference Table - Column ECU (Column Switch)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The following input signals can be checked by using the scan tool and the SWS monitor kit.
NOTE: If a problem is found in the "Service Data" check, refer to INPUT SIGNAL CHART .

COLUMN ECU (column switch)
ETACS ECU

Fig 2: Data List Reference Table - ETACS ECU
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: For item No. 43, the scan tool also displays "ON" when the light reminder tone alarm or the seat belt theft-alarm function is triggered.
FRONT ECU

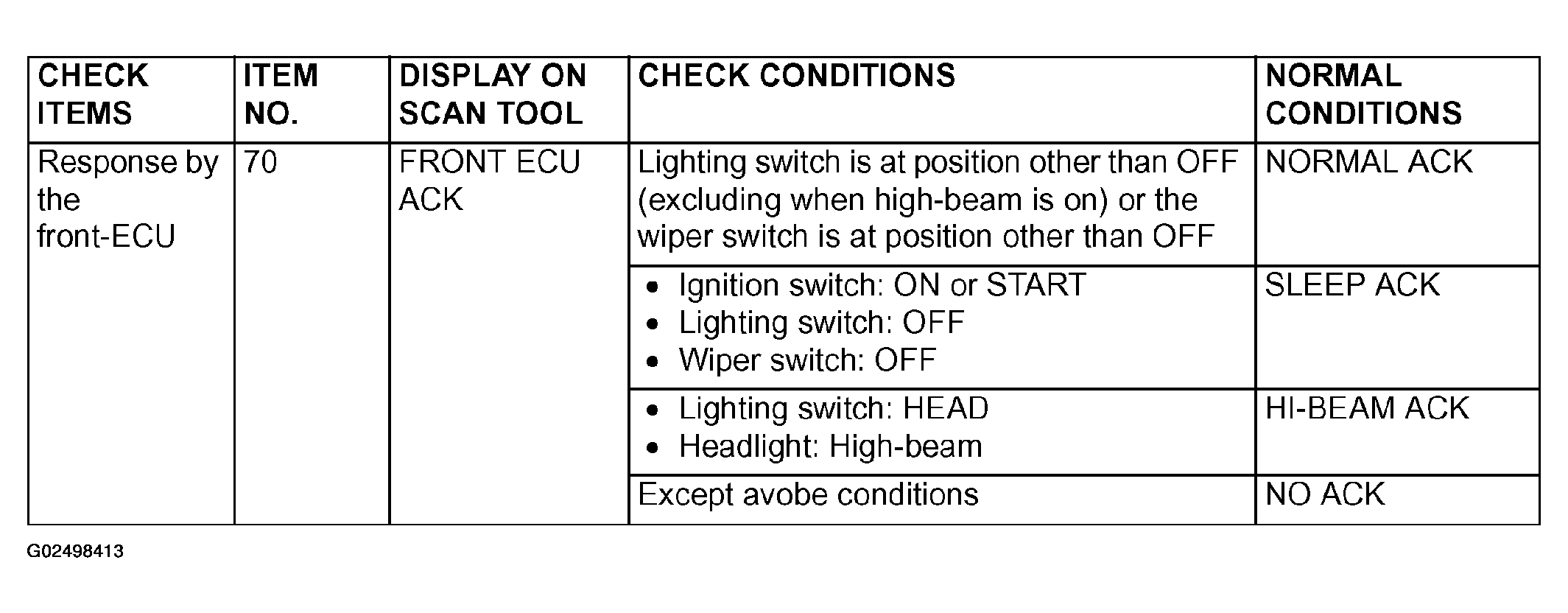

Fig 3: Data List Reference Table - Front ECU
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: For item No. 70, the scan tool also displays "NG" under the "ECU COMM CHK" when it displays "NO ACK" under the front-ECU check.
SUNROOF ECU (sunroof motor assembly)

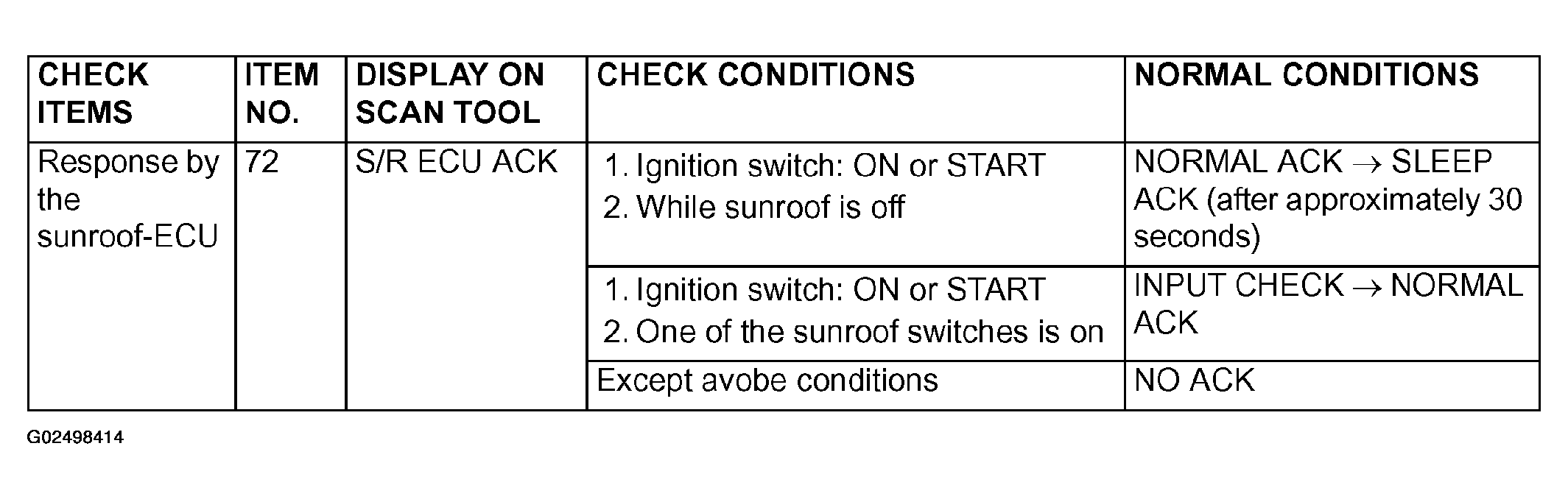

Fig 4: Data List Reference Table - Sunroof ECU (Sunroof Motor Assembly)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: For item No. 72, the scan tool also displays "NG" under the "ECU COMM CHK" when it displays "No response" under the sunroof-ECU check.

< FUNCTION DIAGNOSIS >

The tables shown in illustrations below shows the service data and their normal condition, which are displayed during the "FUNCTION DIAG." The row "NORMAL CONDITIONS" shows values, which are shown when each operation is made.
WIPER

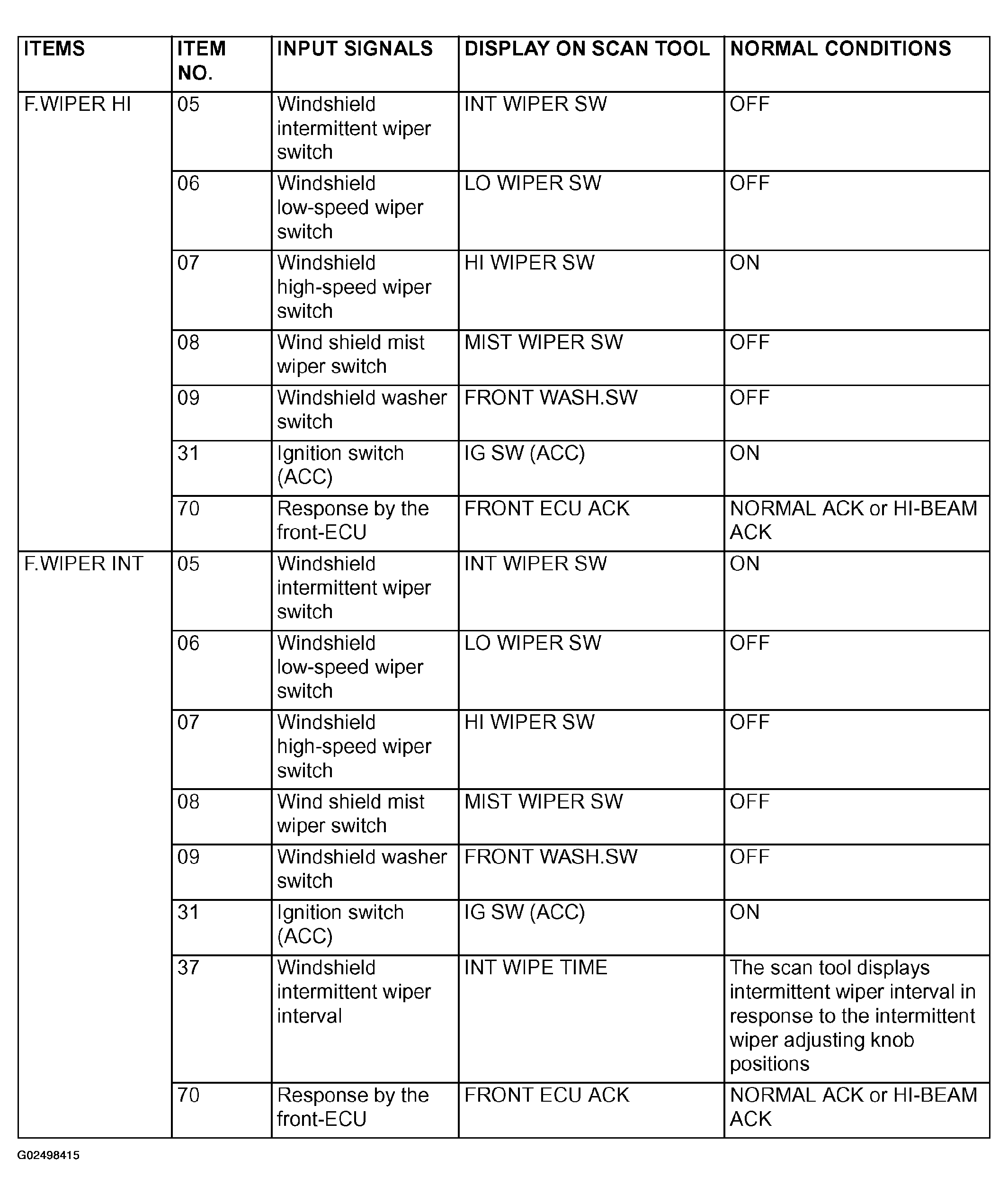

Fig 5: Data List Reference Table - Wiper (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

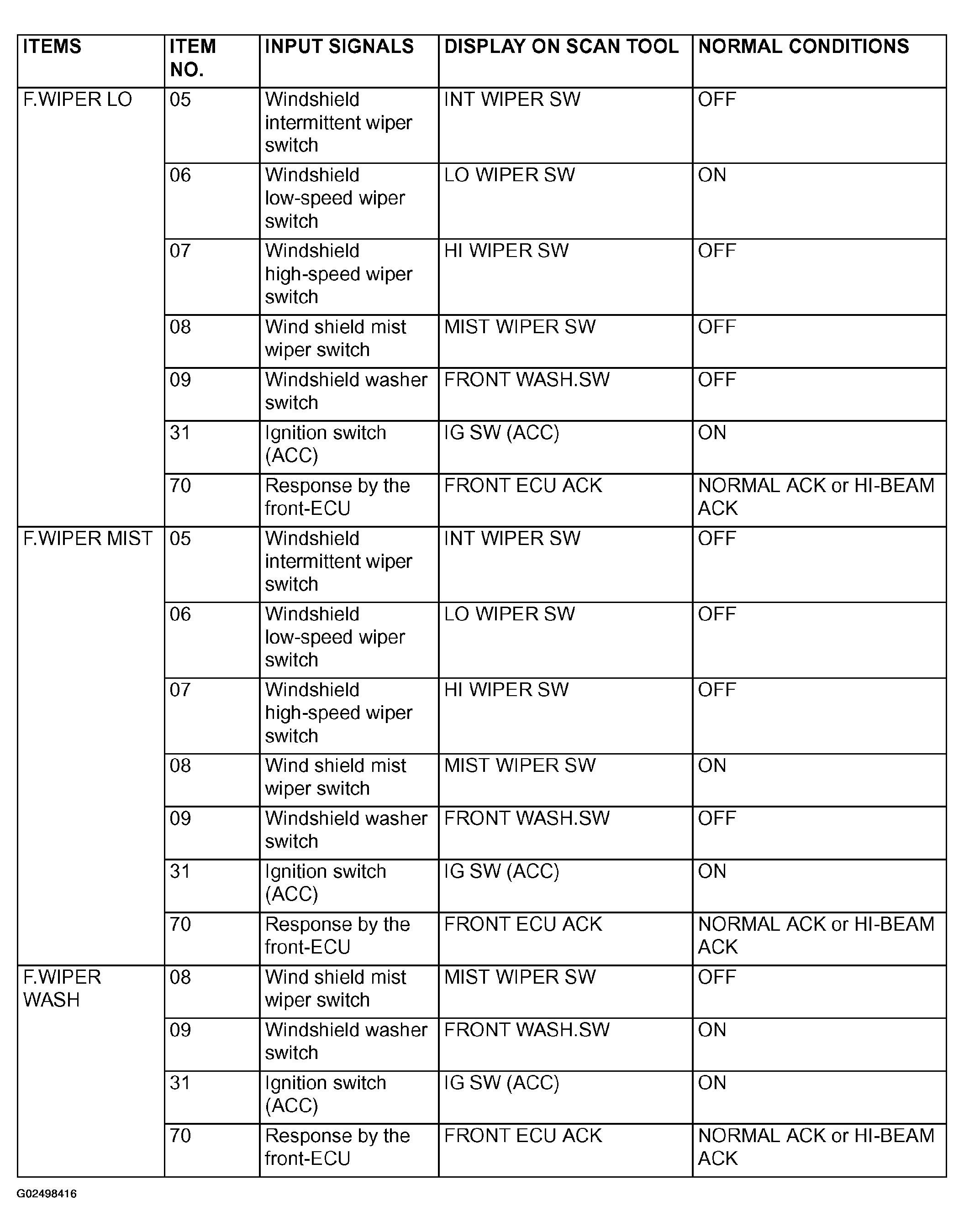

Fig 6: Data List Reference Table - Wiper (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

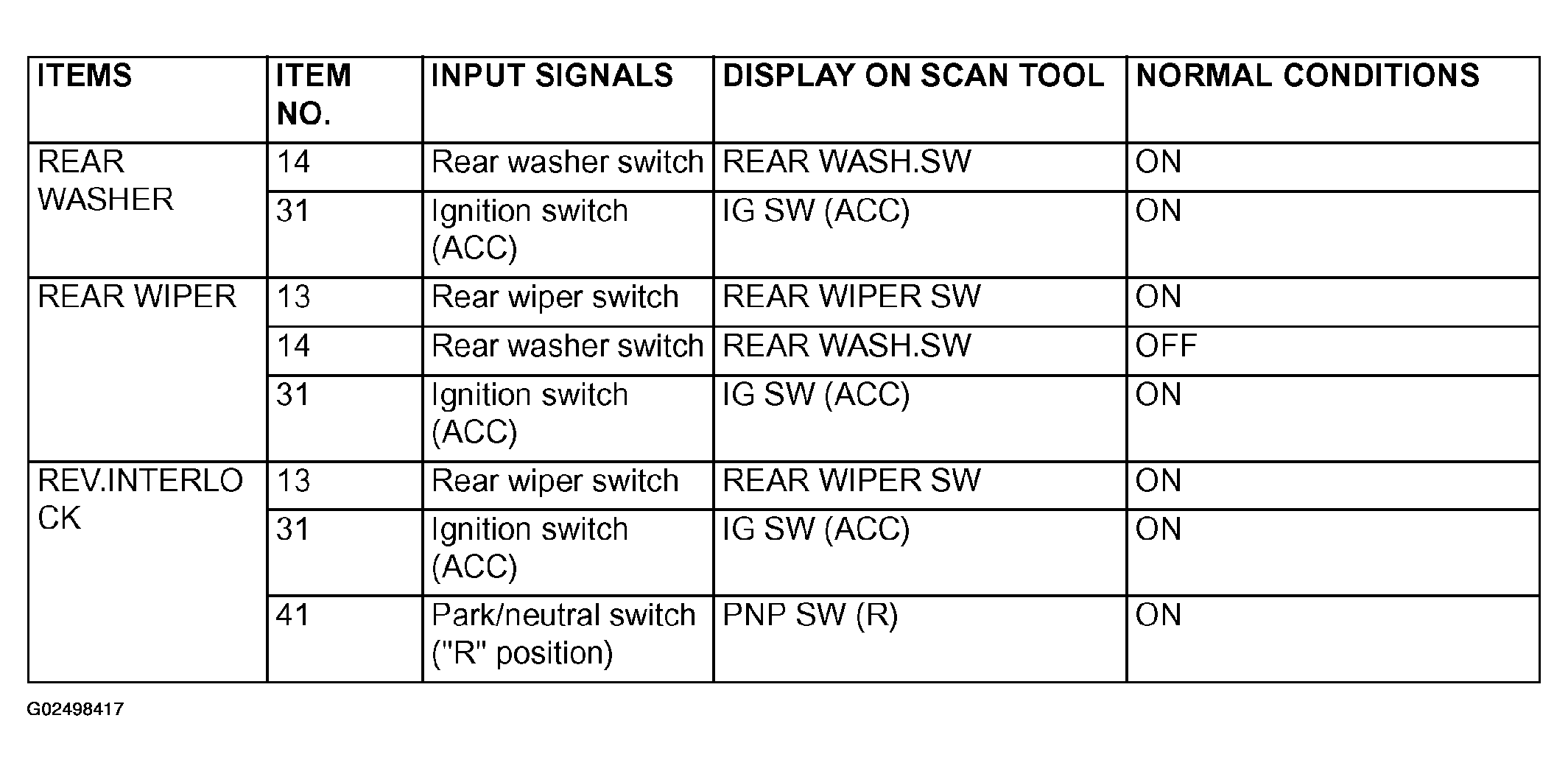

REAR WIPER

Fig 7: Data List Reference Table - Rear Wiper
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
LIGHTING

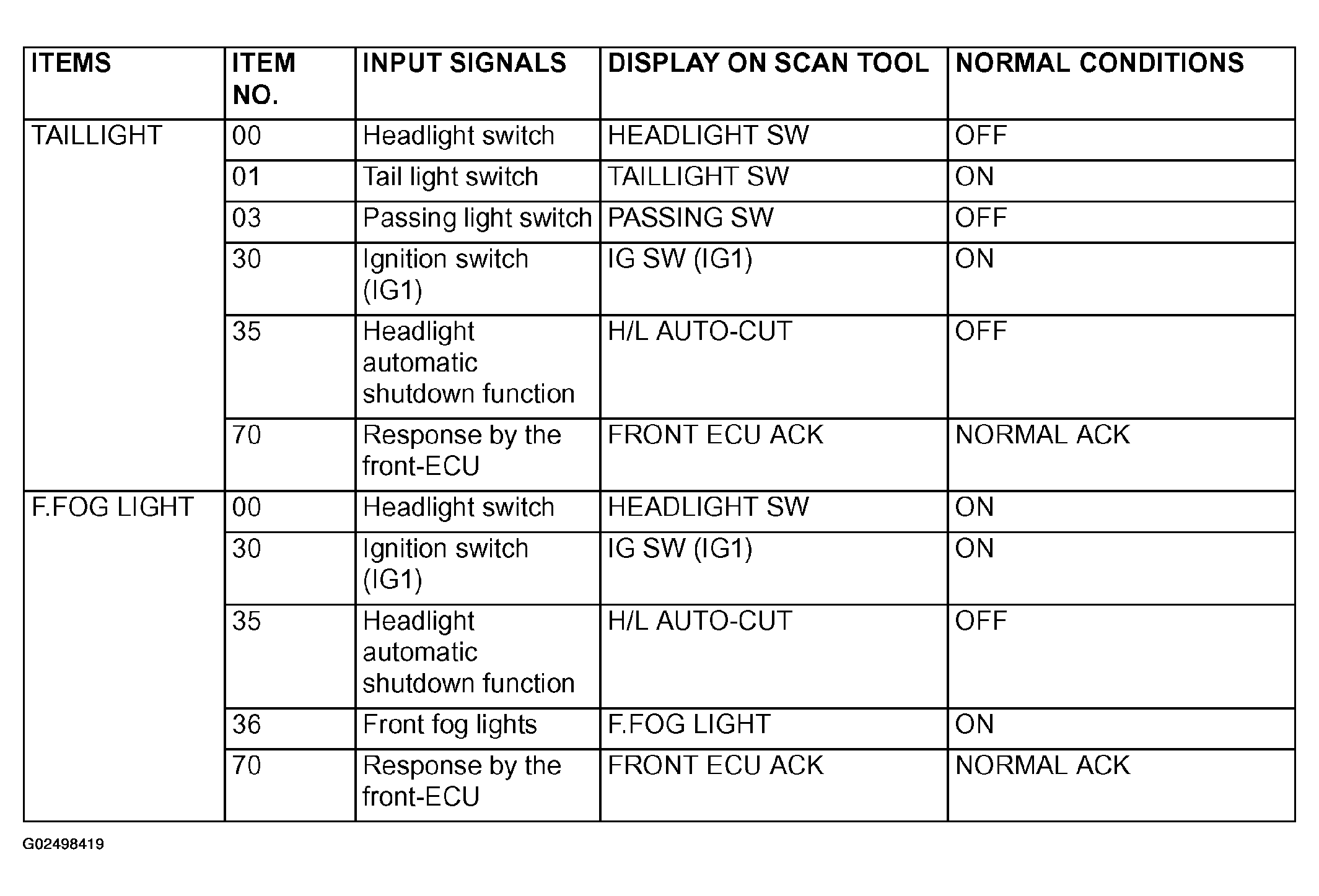

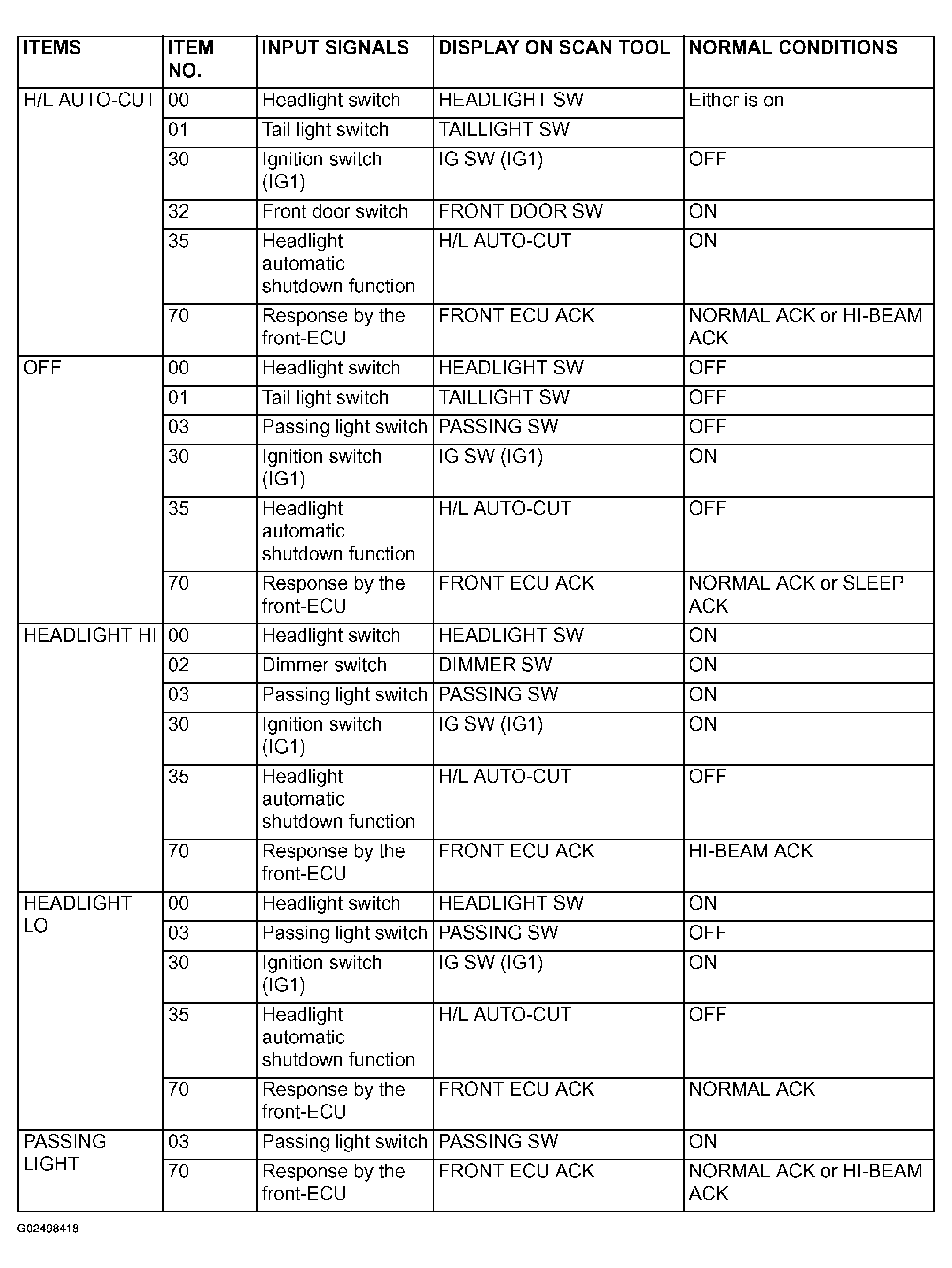

Fig 8: Data List Reference Table - Lighting (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: Data List Reference Table - Lighting (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: When checking the input signals (off, tail, low-beam or high-beam), turn the ignition switch to the "ON" position in order to disable the headlight automatic shutdown function. However, the headlight operation does not depend on the ignition switch positions, the scan tool does not display the title "IGNITION SWITCH".

For checking item "HI (High-beam)", the scan tool displays "OFF" on the item No. 2 "Dimmer SW" when the headlights are at high-beam. Therefore, the scan tool should display "ON" momentarily when the dimmer switch is operated.
TURN SIGNAL

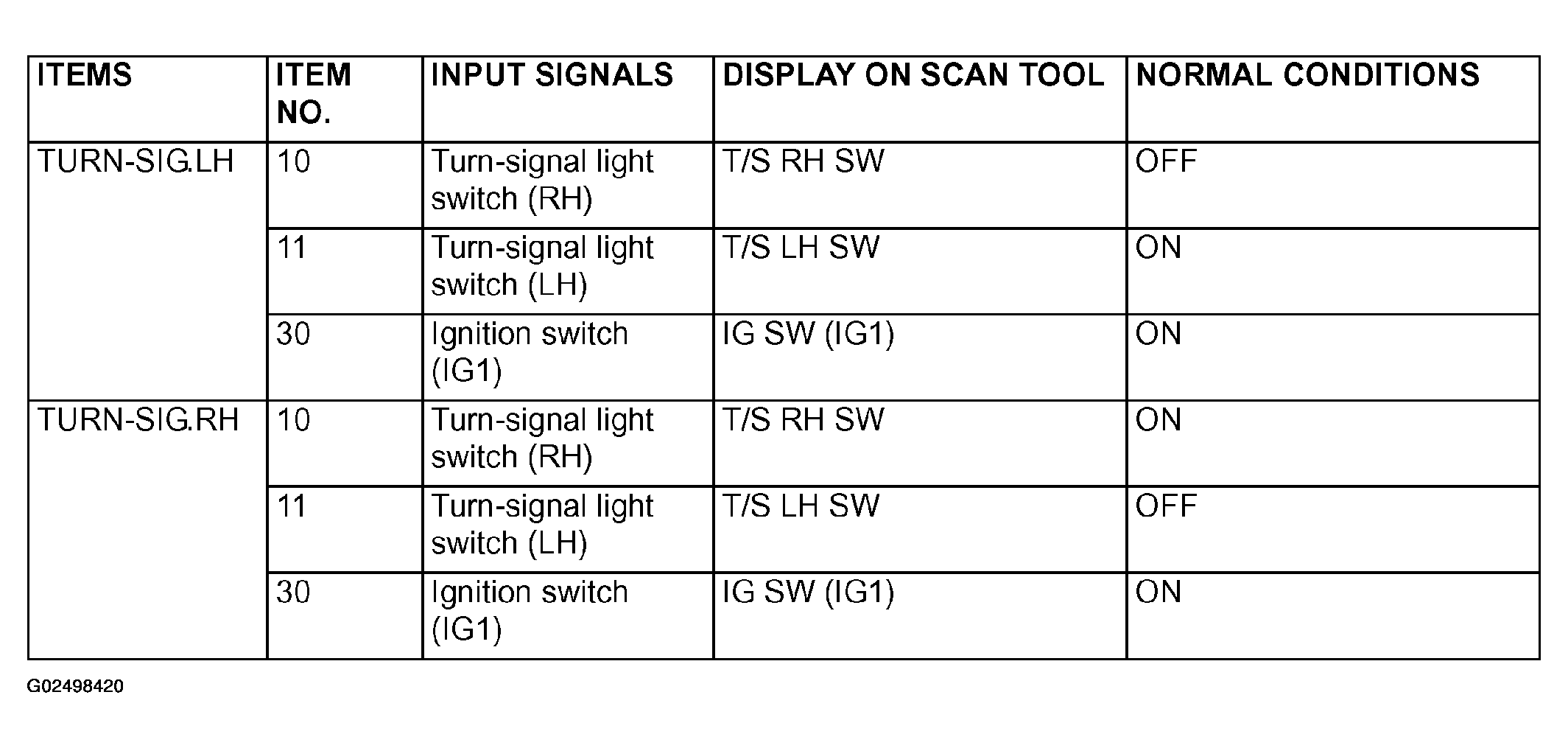

Fig 10: Data List Reference Table - Turn Signal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
BUZZER

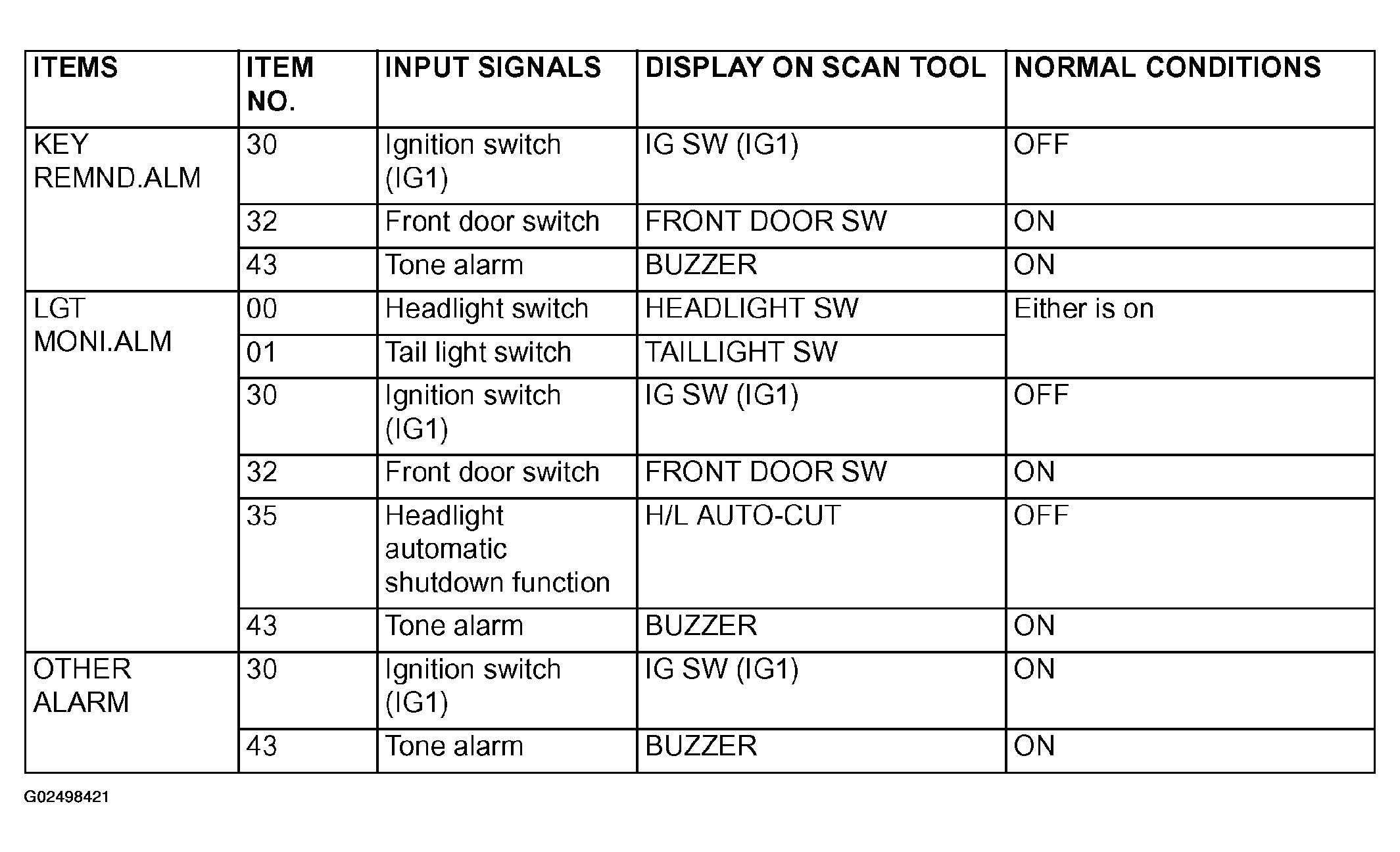

Fig 11: Data List Reference Table - Buzzer
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The headlight automatic shutdown function works in approximately one second after the lighting monitor tone alarm starts sounding, and then the tone alarm ceases sounding.
SUNROOF

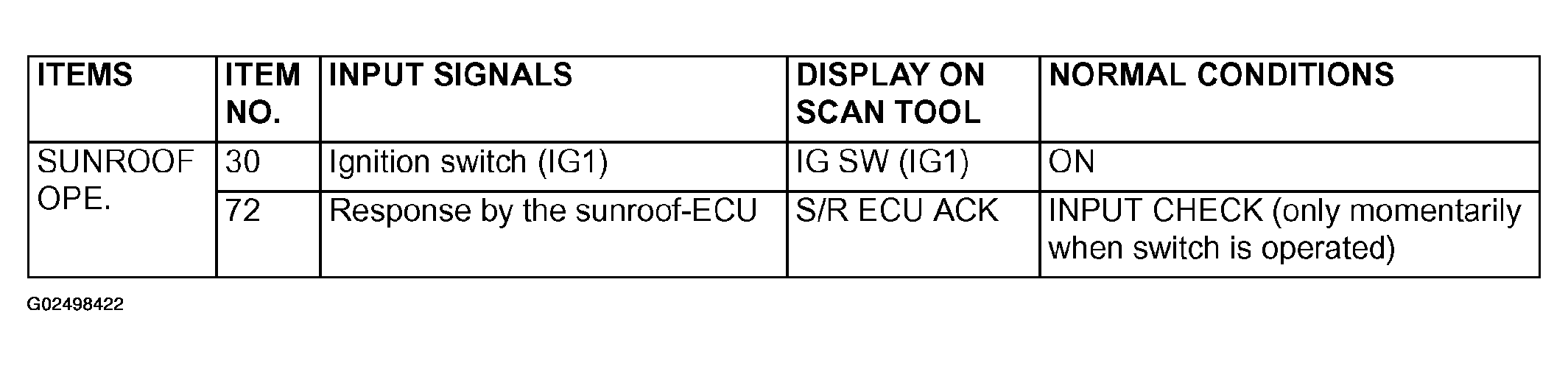

Fig 12: Data List Reference Table - Sunroof
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
