How To Use SWS Monitor

To carry out troubleshooting, operate scan tool MB991958 (MUT-III Sub Assembly) as shown in following illustrations.

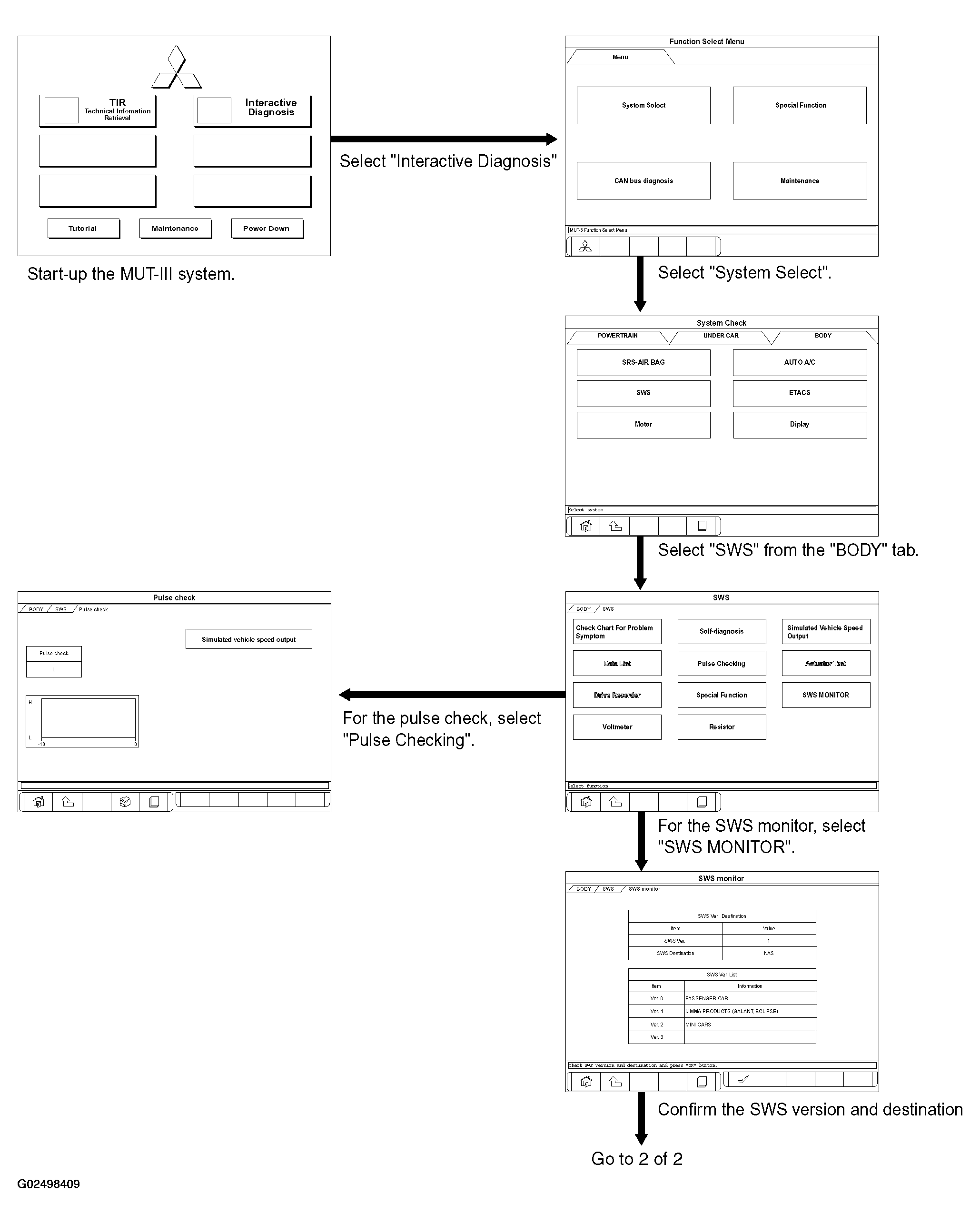

Fig 1: Flow Chart - How To Use SWS Monitor (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

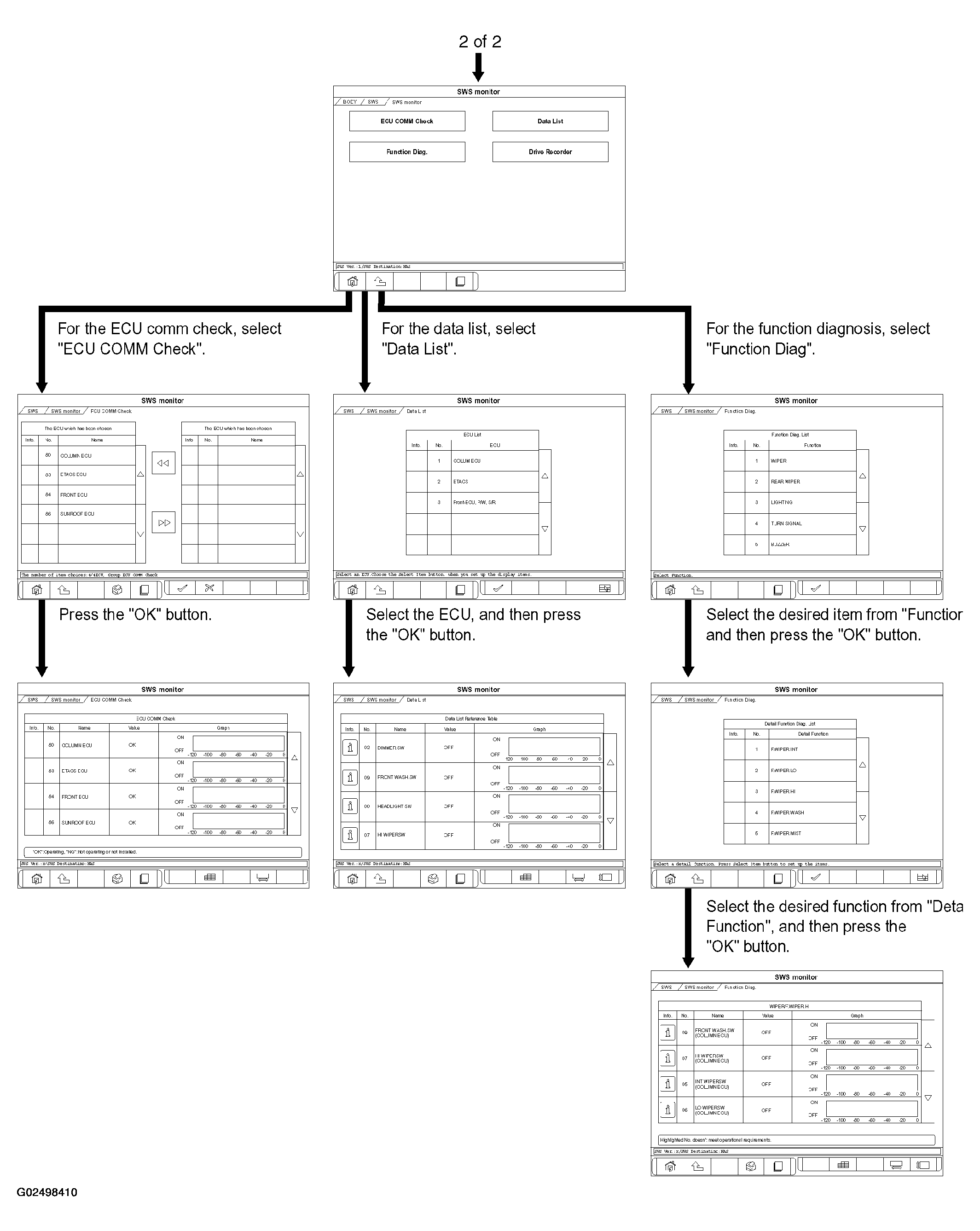

Fig 2: Flow Chart - How To Use SWS Monitor (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
