Basic Brake System
>>
Specifications
>>
Service Specifications
Service Specifications

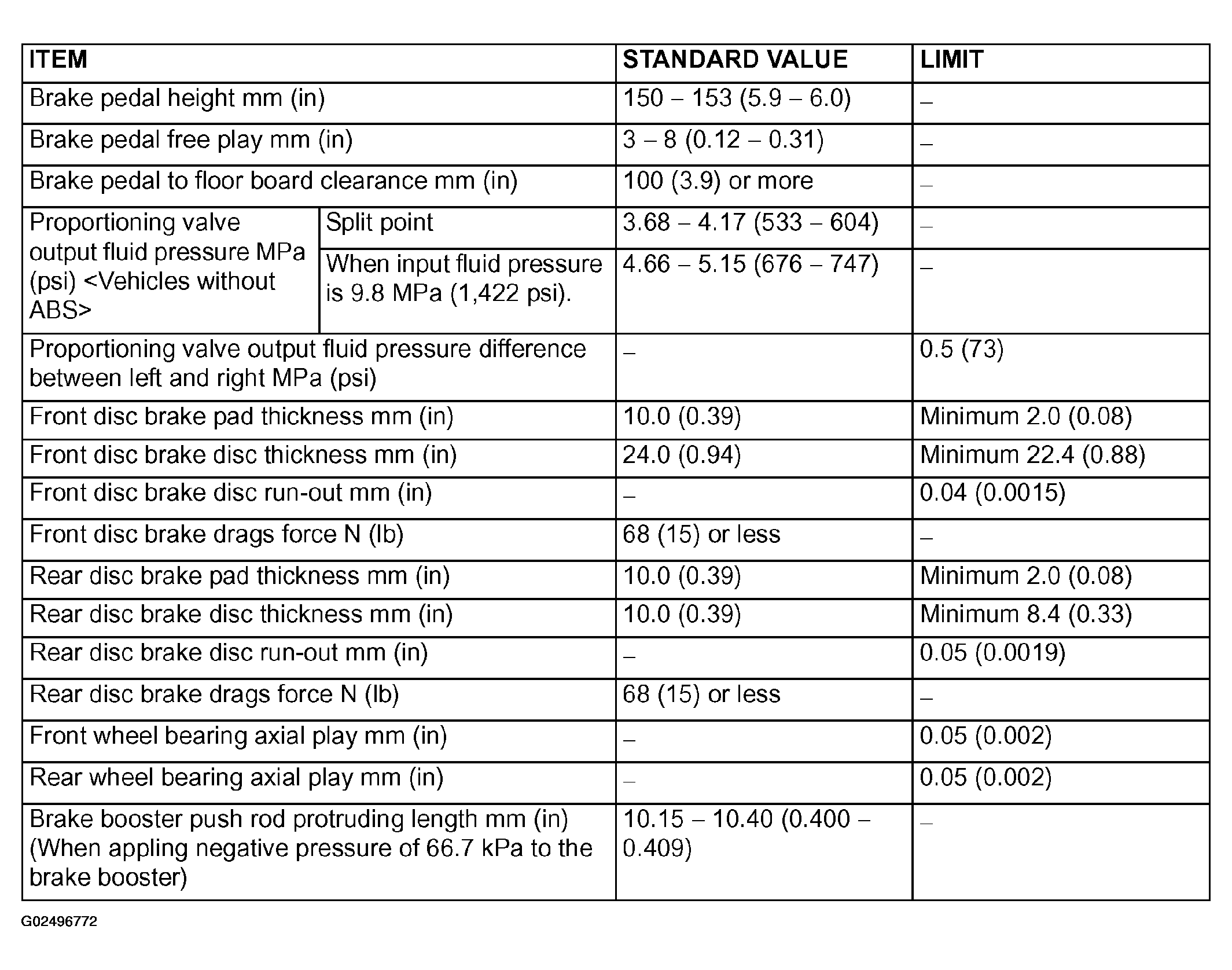

Fig 1: Service Specifications Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
