Notes
Removal And Installation: Notes

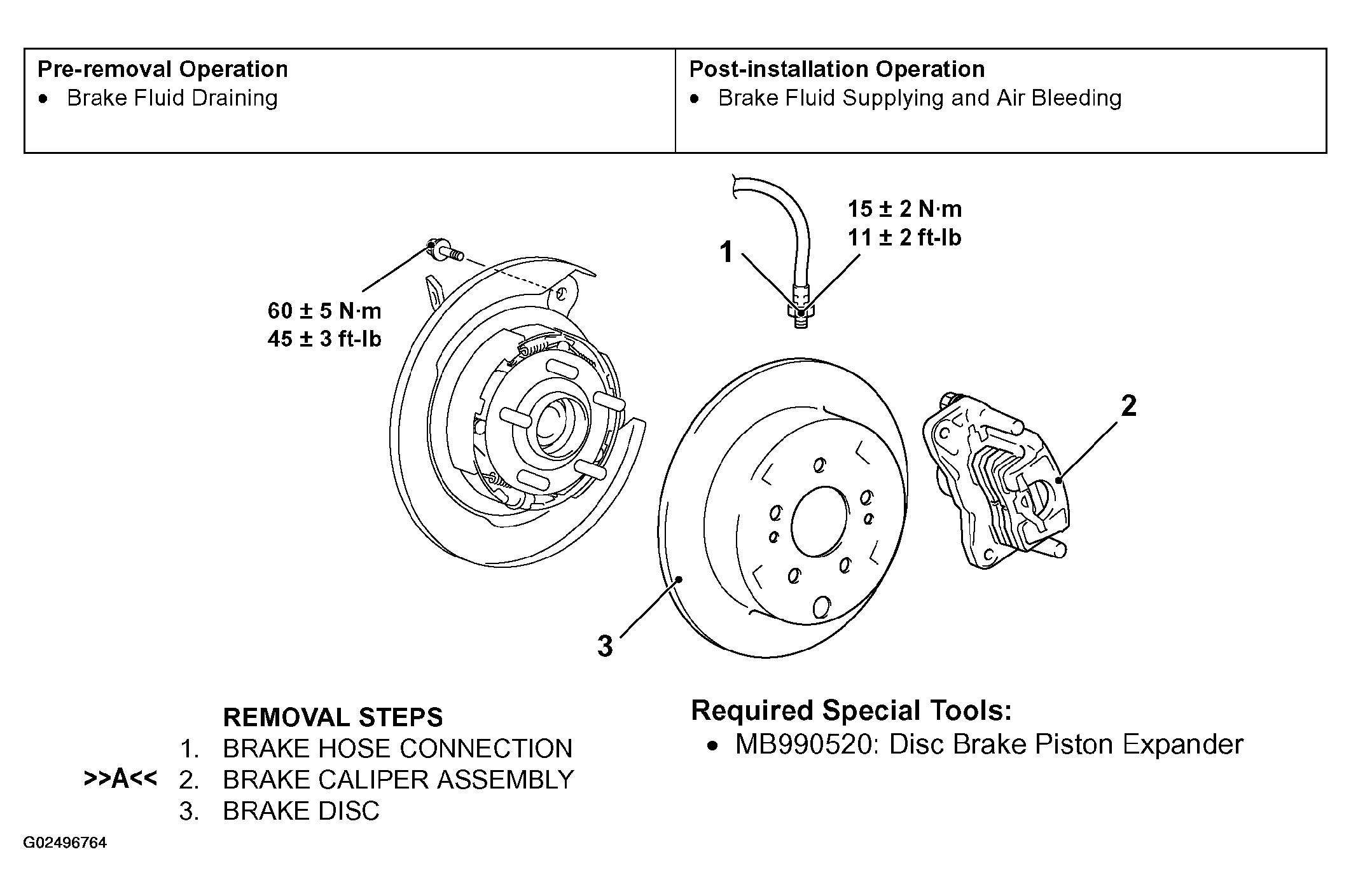

Fig 1: Removing And Installing Rear Disc Brake Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
