Disassembly And Reassembly: Notes

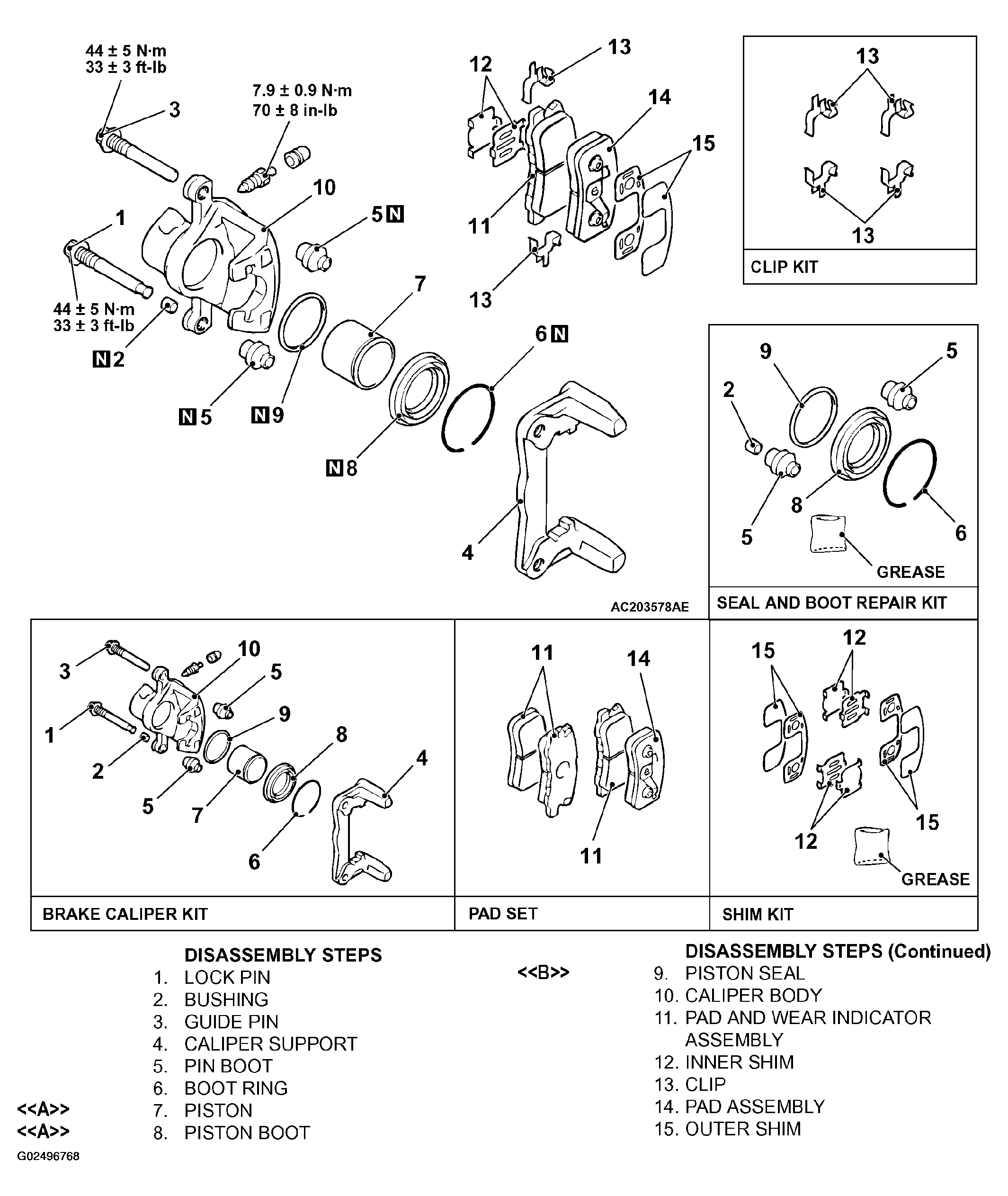

Fig 1: Exploded View Of Brake Caliper Assembly

G02496768

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
