Disc Brake Rotor Check: Notes

CAUTION: Disc brakes must be kept within the allowable service values in order to maintain normal brake operation.

Before turning the brake disc, the following conditions should be checked.

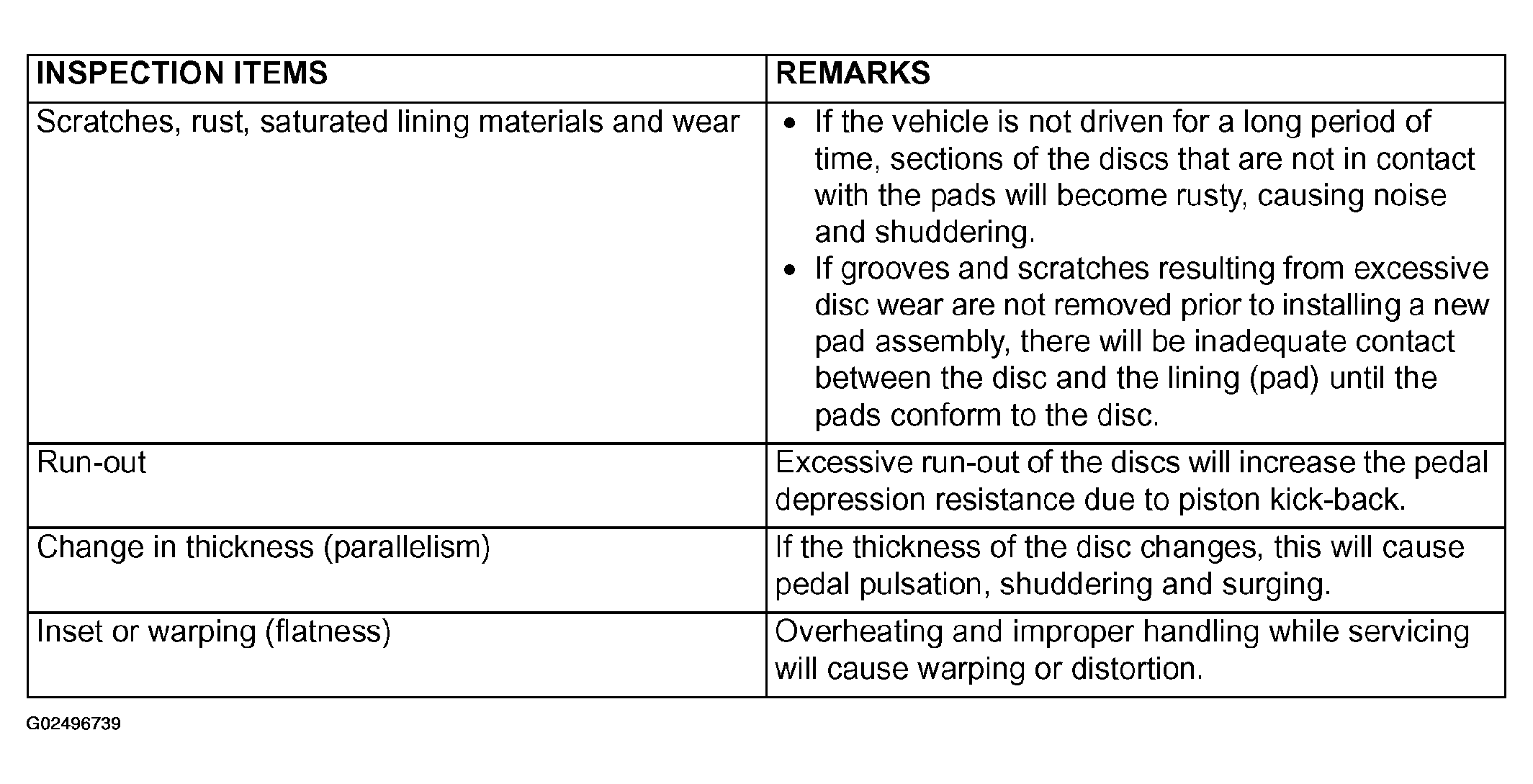

Fig 1: Inspection Item And Remarks Chart
G02496739Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
