Brake Fluid Level Sensor Check

The brake fluid level sensor is in good condition if there is no continuity when the float surface is above "MIN" and if there is continuity when the float surface is below "MIN".

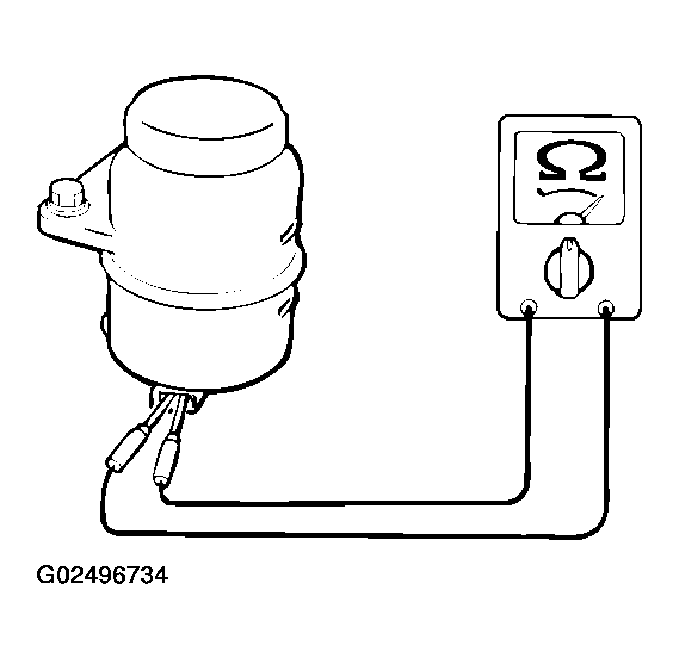

Fig 1: Checking Brake Fluid Level Sensor
G02496734Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
