Disassembly And Assembly: Notes

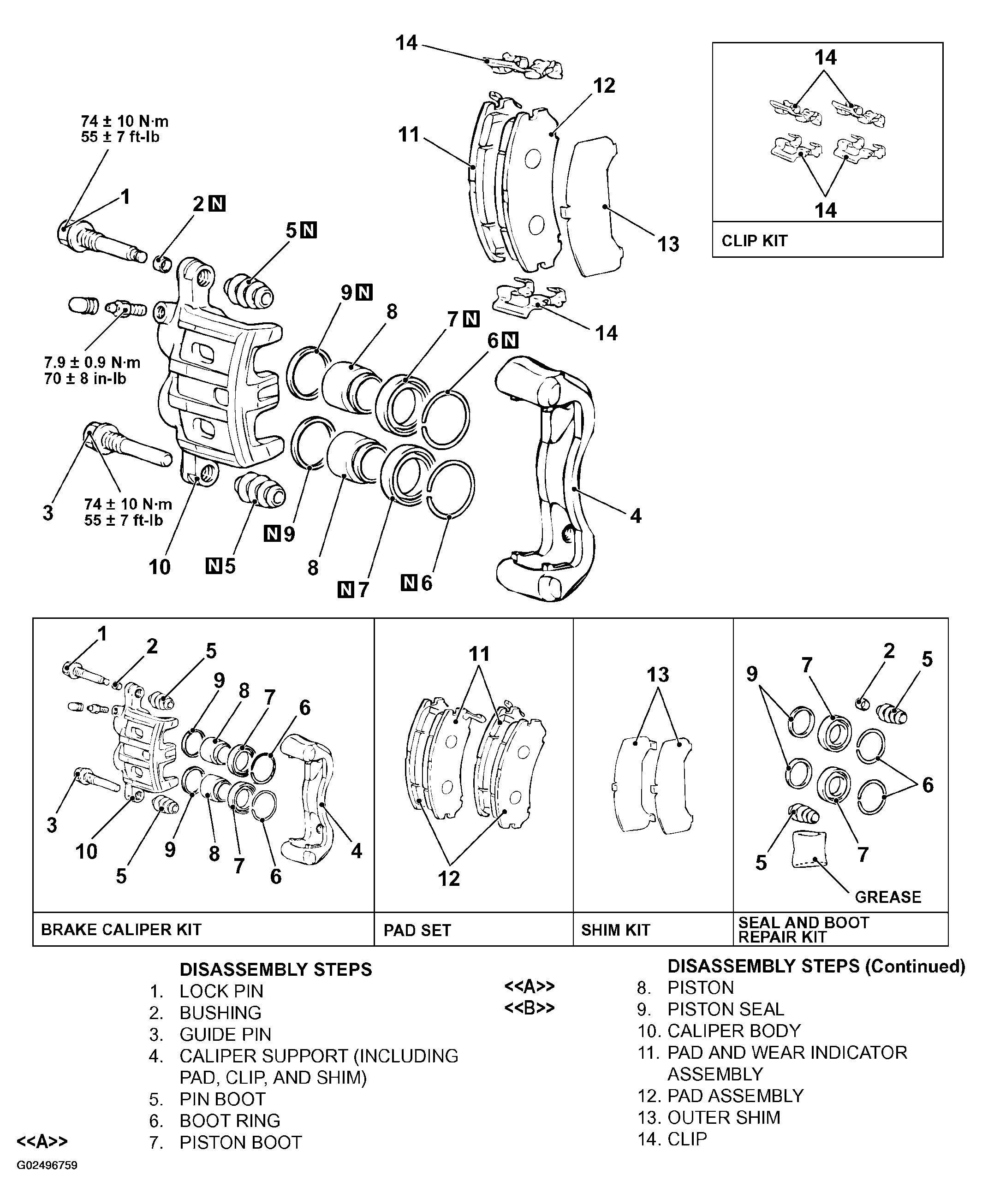

Fig 1: Exploded View Of Brake Caliper Assembly

G02496759

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
