Body
>>
Hood
>>
Removal And Installation
Removal And Installation

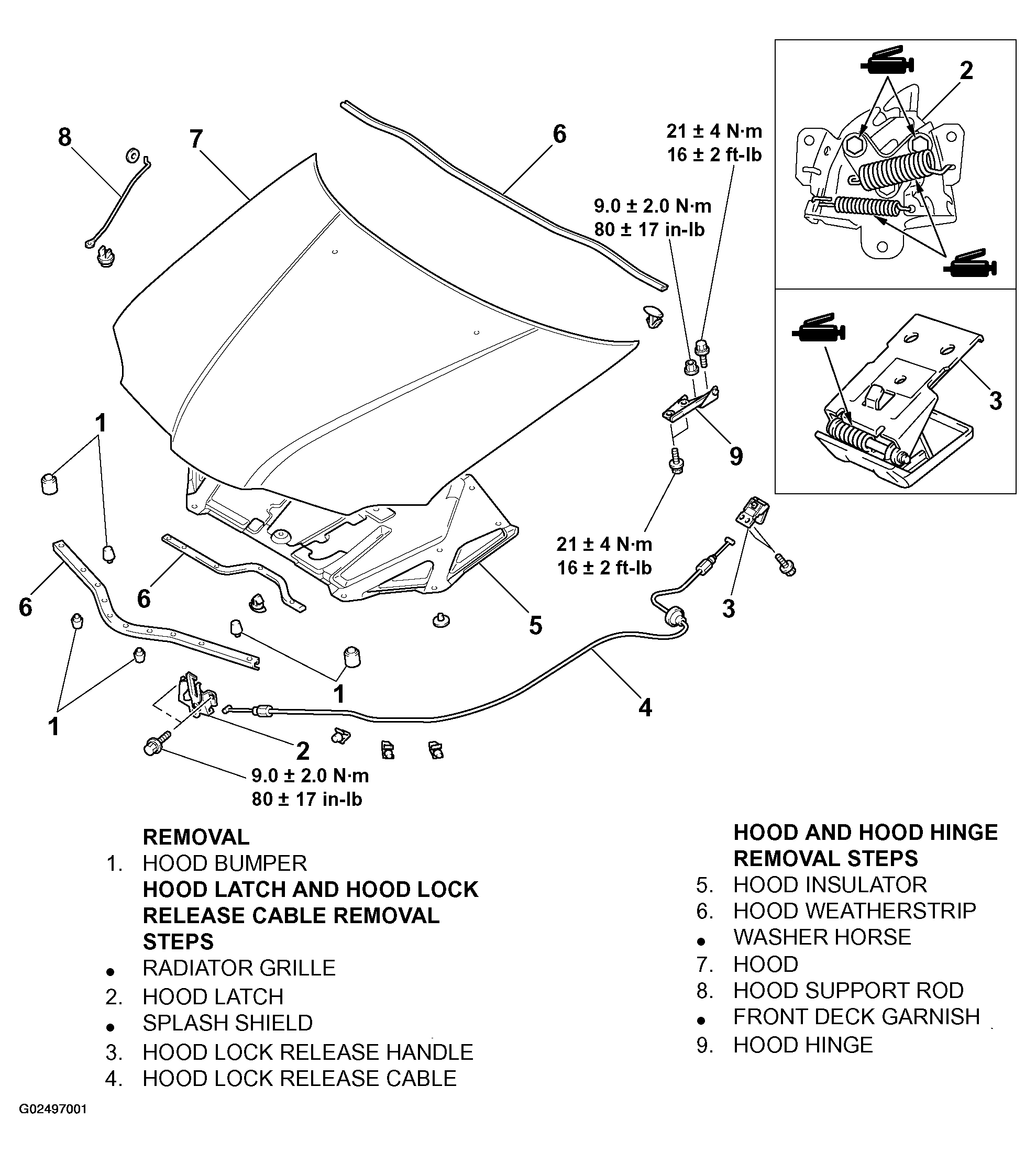

Fig 1: Removing/Installing Hood
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

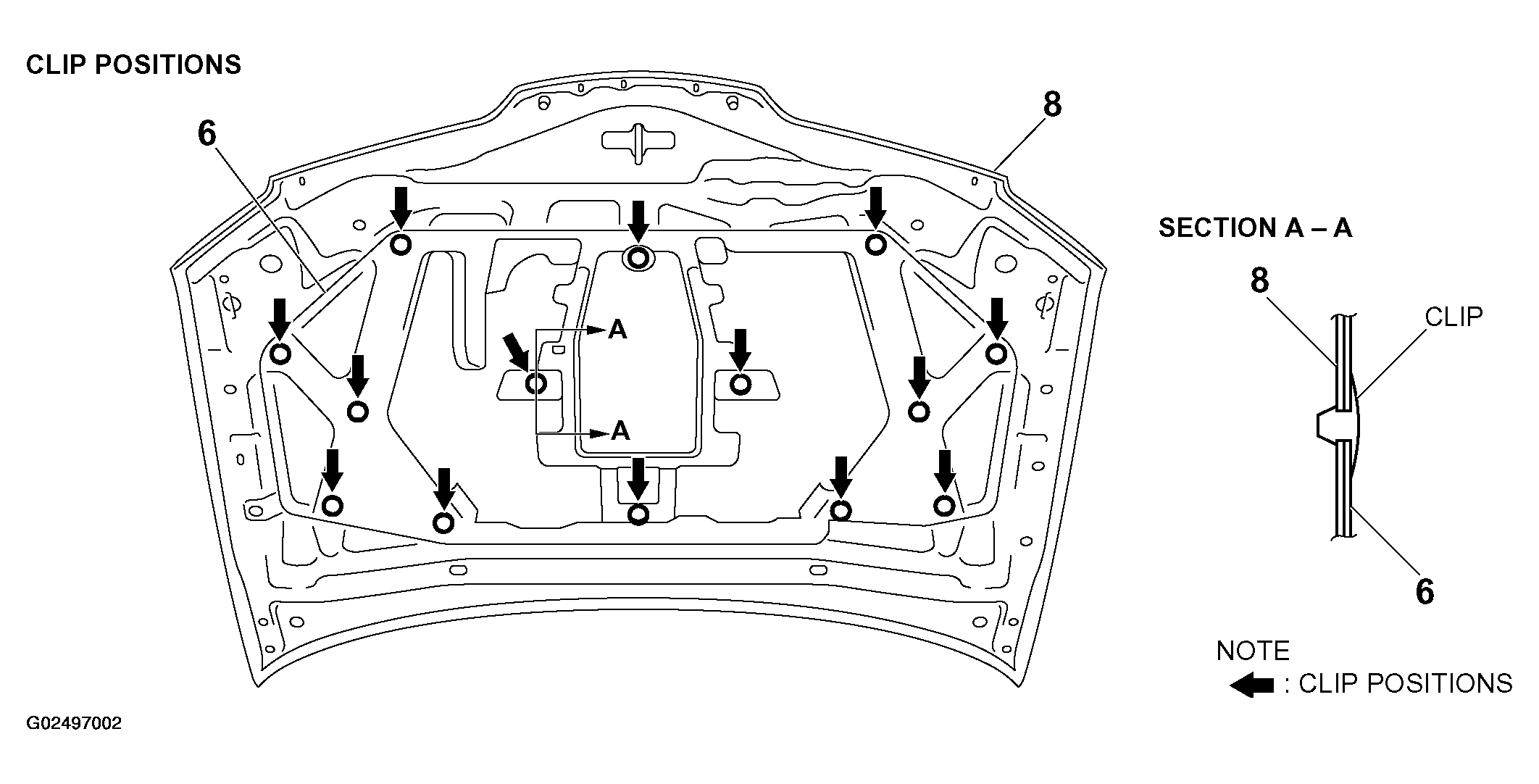

Fig 2: Identifying Clip Positions
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
