Liftgate Lock Actuator Check

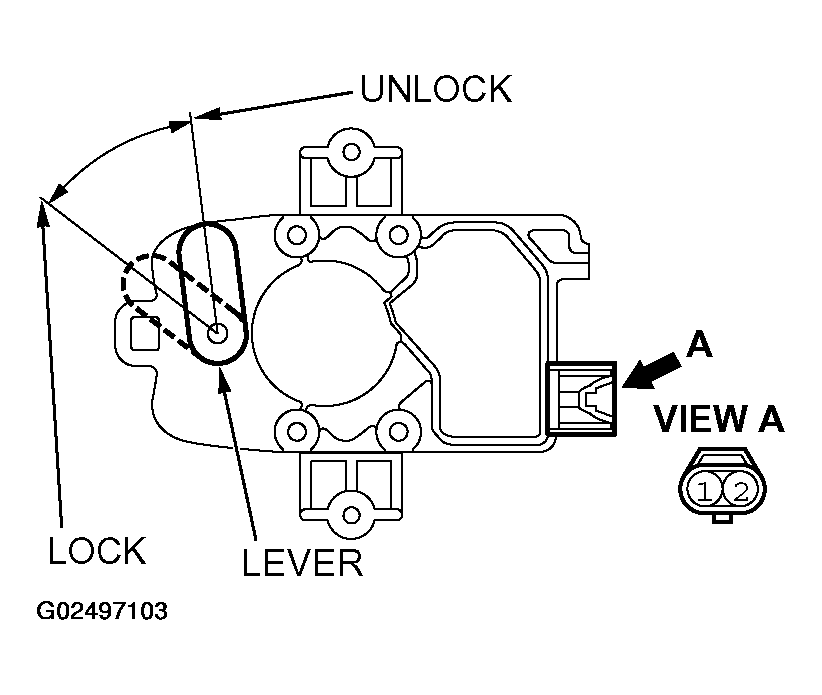

Fig 1: Checking Liftgate Lock Actuator
G02497102Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

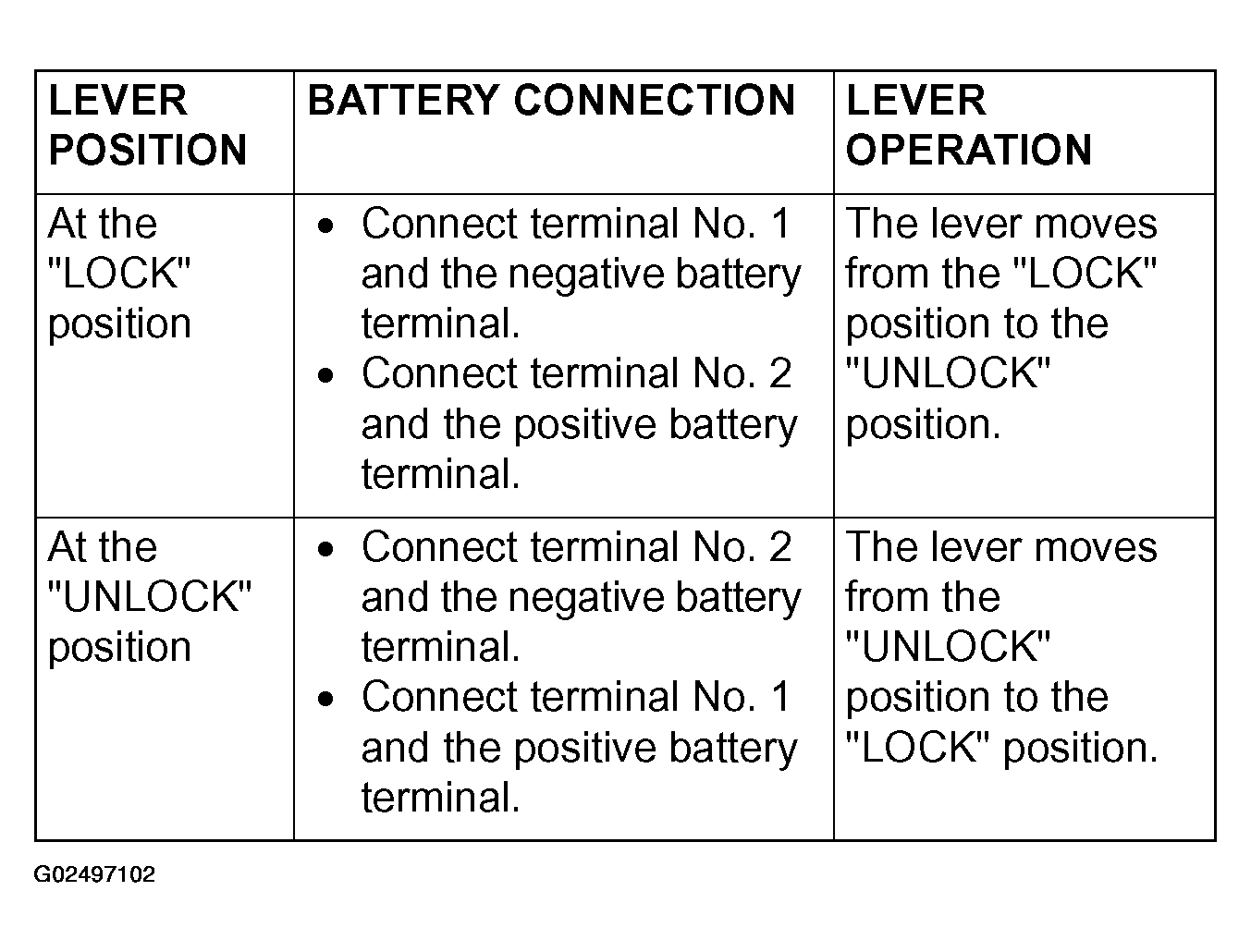

Fig 2: Liftgate Lock Lever Operation Chart
G02497103Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
