Door Switch Check
Door Switch Check

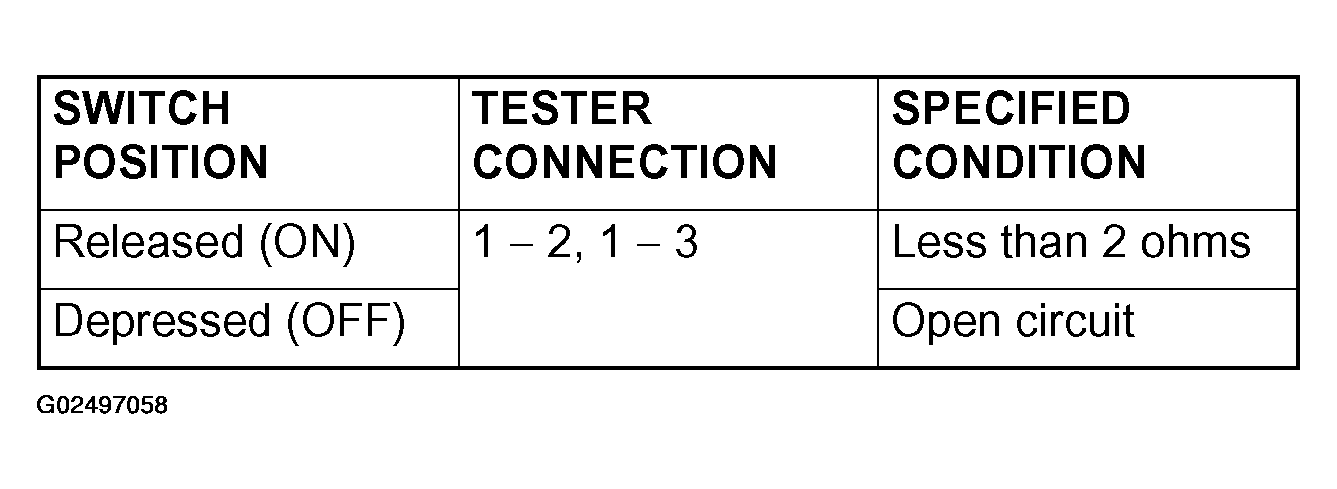

Fig 1: Checking Door Switch Check Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Testing Door Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
